LM5118: Design Inquiry buck-boost LM5118

奉祥林

Prodigy 40 points

Part Number: LM5118

Tool/software:

I want design buck-boost topology by LM5118,Vin range=17V~30V,Vout=24V ,Iout=0.6A,this design End device is Fan ,please help to confirm, is this part support this design? Also, I need design tools or can you provide me with a schematic?

0 Alicia Hao 21 days ago

TI__Intellectual 1380 points

Hi Fengxiang,

Thanks for using E2E!

LM5118 should be able to work in your application, you could use below quick calculation tools for more details. You could find other design tools in LM5118 product folder. Thank you.

LM5118QUICK-CALC Calculation tool | TI.com

LM5118 data sheet, product information and support | TI.com

0 奉祥林 21 days ago in reply to Alicia Hao

Prodigy 40 points

Thanks for your help!

0 奉祥林 10 days ago in reply to Alicia Hao

Prodigy 40 points

Hi Alica

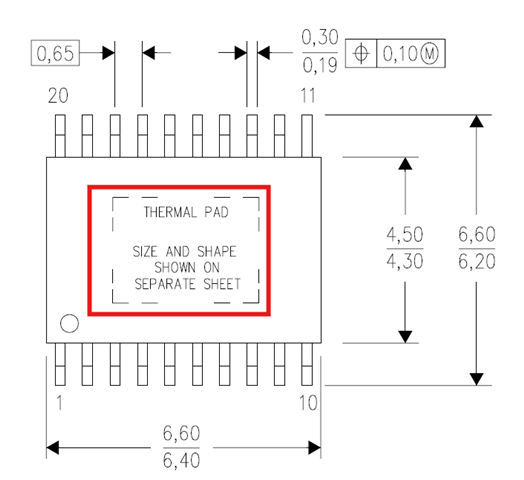

I need to conform that the thermal Pad can connect PGND yes or not? is this pad whether any internal signal connected?

Thanks

0 Brigitte 9 days ago in reply to 奉祥林

TI__Guru 65880 points

Hello Fengxiang,

We ask you to solder the thermal pad to the GND plane below the device, see this section of the datasheet: https://www.ti.com/document-viewer/LM5118/datasheet#pin-configuration-and-functions/snvs5662719 and in the layout section: https://www.ti.com/document-viewer/LM5118/datasheet#layout/SNVS5663127

Best regards,
Brigitte
