UCC5350: How does UCC5350 achieve gate positive voltage and gate negative voltage for output driven SiC?

Tom Tom

Other Parts Discussed in Thread: UCC5350

How can UCC5350 achieve output driving of SiC gate positive voltage and gate negative voltage using only resistors, inductors, capacitors, and diodes without the need for an external negative voltage power generation module?

5 months ago

0 Will Appelt 5 months ago

TI__Expert 4075 points

Hello,

I'm not sure that I understand your question. In order to drive the output with either positive voltage (12V for example) or negative voltage (-5V for example), you will need to supply VCC2 with the positive voltage and VEE2 with the negative voltage. Let me know if this helps to answer your question.

Best regards,

Will

0 Tom Tom 5 months ago in reply to Will Appelt

Intellectual 530 points

Can it use resistors, inductors, capacitors, and diodes to built Charge Pumps ?

0 Tom Tom 5 months ago in reply to Will Appelt

Intellectual 530 points

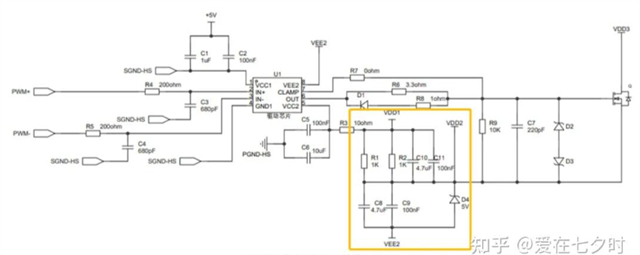

Can we also use this diagram with Vdd1=17V, Vee2=0V, and UCC5350 to achieve negative voltage driving of SiC?

0 Will Appelt 5 months ago in reply to Tom Tom

TI__Expert 4075 points

Hello,

The OUT pin cannot be negative if VEE2 is 0V. This would break the absolute max ratings for the device. If you want to drive the device with +12V on VCC and -5V on VEE for example, you will need to connect the grounds for those supplies similar to the Typical Application Schematic for UCC5320E. Keep in mind, this device has a GND2 pin instead of a CLAMP pin.

Best regards,

Will

0 Tom Tom 5 months ago in reply to Will Appelt

Intellectual 530 points

It seems that you don't understand what I mean. I'm referring to whether the UCC5350 chip can build a peripheral circuit with 17V and 0V, as shown in the picture, to naturally generate a negative voltage without the need for an external negative voltage generation module。

0 Will Appelt 5 months ago in reply to Tom Tom

TI__Expert 4075 points

Hello,

It is my understanding that the UCC5350 cannot "naturally generate" a negative voltage on the output pin. The device ties the output to either VCC2 or VEE2 depending on whether the input sets it to drive High or Low respectively. In addition, if VEE2 is set to zero and the output were -17V, this would break the device due to exceeding the absolute maximum specs listed in the datasheet.

Best regards,

Will

+1 Tom Tom 5 months ago in reply to Will Appelt

Intellectual 530 points

Thanks !
