LM5161: Pspice simulation issues

Ohad Bonneh

Part Number: LM5161

Hi Team,

Could you please show me a simulation for LM5161PWP that is configured like the Webench suggests ?

Vin: 28V

Vout -15VDC

Output Current 0.5/1 Amps

0 Tony Koulong 1 month ago

Hi Ohad,

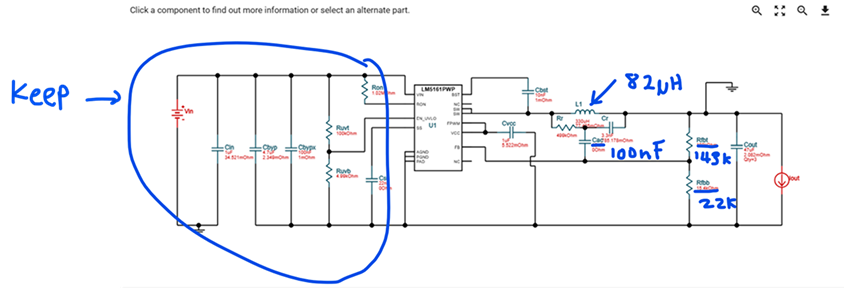

First I can't see all your components at all.

What is wrong with your pspice? If you don't have it you can request it from www.ti.com/.../PSPICE-FOR-TI

0 Ohad Bonneh 1 month ago in reply to Tony Koulong

Hi Tony,
it is getting stuck in the middle of the simulation..

0 Tony Koulong 1 month ago in reply to Ohad Bonneh

Can you share your actual pspice simulations?

0 Ohad Bonneh 30 days ago in reply to Tony Koulong

attached

0 Tony Koulong 29 days ago in reply to Ohad Bonneh

I will check it out.

0 Tony Koulong 29 days ago in reply to Tony Koulong

Can you also send the .opj file?

0 Ohad Bonneh 27 days ago in reply to Tony Koulong

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/lm5161pwp_5F00_trans.opj

0 Ohad Bonneh 27 days ago in reply to Ohad Bonneh

0 Tony Koulong 26 days ago in reply to Ohad Bonneh

Ok, I will get back to you later
