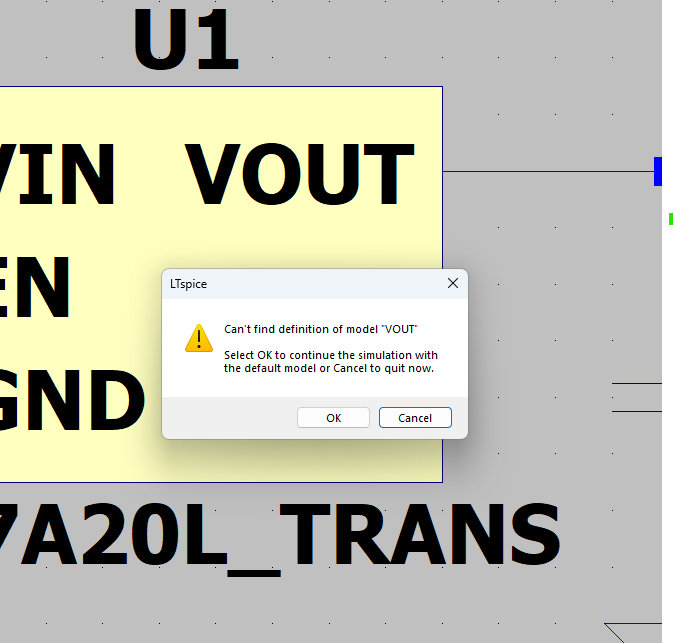

TPS7A20L: Issue with SPICE Model

Hi Stephan,

Thank you.

I have TINA-TI and LTSpice.

If you have any model which works with TINA or LTspice it's good.

I installed Spice for TI.(Need to learn it )

Regards

HARI

Hi Stephan,

I will edit the file.May I know exactly where I need to make the change.

"*$
*****************************************************************************
* (C) Copyright 2019 Texas Instruments Incorporated. All rights reserved.
*****************************************************************************
** This model is designed as an aid for customers of Texas Instruments.
** TI and its licensors and suppliers make no warranties, either expressed
** or implied, with respect to this model, including the warranties of
** merchantability or fitness for a particular purpose. The model is
** provided solely on an "as is" basis. The entire risk as to its quality
** and performance is with the customer.
*****************************************************************************
*
** Released by: WEBENCH Design Center, Texas Instruments Inc.
* Part: TPS7A20L
* Date: 08Oct2024
* Model Type: Transient
* Simulator: PSPICE
* Simulator Version: 16.2.0.s003
* EVM Order Number:
* EVM Users Guide:
* Datasheet:
*
* Model Version: Final 1.00
*
*****************************************************************************
*
* Updates:
*
* Final 1.00
* Release to Web
*
*****************************************************************************
* Model Usage Notes:
*
* 1. The following features have been modeled
* a. Start-up behaviour is modeled
* b. Line transients
* c. Load transients
* d. Current Limit and current foldback is modeled
* e. PSRR is modeled only till 1st pole and 1st Zero (Model limitation)
* 2. Quiescent current, noise characteristics and temperature effects are not modeled
*****************************************************************************
*$
.SUBCKT TPS7A20L_TRANS EN GND VIN VOUT NC
R_NC NC GND 10MEG
E_E7 VZZ_INT 0 VALUE { V(VZZ, GND) }
C_C7 VXX N906376 1n
R_R15 N864140 VYY 10
E_E9 N501262 0 VALUE { V(VXX, GND) }
C_C6 0 DISCH_A 1n
E_E12 N906370 0 LOAD 0 -50
E_E10 N864140 GND VALUE { V(N844292, 0) }
R_R8 EN_OK N855074 50 TC=0,0
R_R1 VXX N430319 {RINP}
X_S3 DISCH_B 0 N440312 0 TPS7A20L_S3
R_R3 GND FB 600k
E_ABM1 N844292 0 VALUE { {MIN(V(N501262), (V(Vzz_INT)+(ILIM*ROUT)))}
+ }
C_C4 0 N855074 0.7u
C_C1 VXX N430319 {1/(6.28*RINP*POLE)}
X_S1 DISCH_A 0 N430233 VOUT TPS7A20L_S1
X_S2 N855074 0 VIN N430319 TPS7A20L_S2
R_R9 N440312 VOUT 120
E_E11 V_FBK 0 VALUE { V(FB, GND) }
R_R7 N430701 DISCH_A 10 TC=0,0
C_C5 GND N430319 0.01u
R_R4 FB VOUT {((VOUT)-0.602)/1e-6}
X_H2 VZZ N430233 LOAD 0 TPS7A20L_H2
R_R10 EN GND 1E6 TC=0,0
X_U3 DISCH_A DISCH_B INV_DELAY_BASIC_GEN PARAMS: VDD=1 VSS=0
+ VTHRESH=0.5 DELAY=10n
X_F1 N431149 VZZ N430319 VYY TPS7A20L_F1
E_E8 VIN_INT 0 VALUE { V(VIN, GND) }
E_ABM3 N430701 0 VALUE { IF(V(DISCH)>0.5,1,0) }
C_C8 GND VYY 1n TC=0,0
E_E1 EN_INT 0 VALUE { V(EN, GND) }
X_U1_U14 U1_N08828 EN_OK BUF_DELAY_BASIC_GEN PARAMS: VDD=1 VSS=0
+ VTHRESH=0.5 DELAY=400u
E_U1_ABM5 U1_N08482 0 VALUE { MIN(V(U1_N08110),
+ MAX(V(VIN_INT) -0.3, 0)) }
V_U1_V5 U1_EN_HYS 0 {EHYS}
C_U1_C5 0 U1_N08530 {0.1*TTRN/0.98} IC=0 TC=0,0
C_U1_C2 0 U1_N08110 1n
X_U1_U11 U1_N08530 U1_N08522 D_D1
E_U1_ABM10 DISCH 0 VALUE { if( V(U1_VIN_OK) > 0.5 & V(U1_N08622)
+ >0.5,1,0) }
V_U1_V3 U1_N08864 0 200m
X_U1_U13 EN_INT U1_EN_IH U1_EN_HYS U1_N08828 COMPHYS_BASIC_GEN PARAMS:
+ VDD=1 VSS=0 VTHRESH=0.5
V_U1_V7 U1_N08522 0 0.5175
X_U1_U16 U1_N08828 U1_N08622 BUF_DELAY_BASIC_GEN PARAMS: VDD=1 VSS=0
+ VTHRESH=0.5 DELAY=10n
X_U1_U15 VIN_INT U1_N08002 U1_N08864 U1_VIN_OK COMPHYS_BASIC_GEN
+ PARAMS: VDD=1 VSS=0 VTHRESH=0.5
R_U1_R5 U1_N18974 V_INT 10 TC=0,0
X_U1_U12 EN_OK U1_N08828 D_D1
G_U1_ABMI1 U1_N08522 U1_N08530 VALUE { {IF(V(EN_OK)>0.5 &
+ V(U1_VIN_OK)>0.5, 0.06, 0)} }
C_U1_C3 GND V_INT 1n
R_U1_R2 0 U1_N08110 1G
E_U1_E1 U1_DROP 0 TABLE { V(LOAD, 0) }
+ ( (100m,255m)(150m,345m) )
V_U1_V6 U1_EN_IH 0 {VENB}
E_U1_ABM4 U1_N08364 0 VALUE { V(U1_N08530)
+ * (ABS(V(VOUT1)) + 1e-6)
+ / (ABS(V(V_FBK)) + 1e-6) }
R_U1_R4 U1_N08364 U1_N08110 10 TC=0,0
V_U1_V4 U1_N08002 0 2.7
E_U1_E12 U1_N18974 GND VALUE { V(U1_N08482, 0) }
R_R5 N431149 VYY {ROUT}
E_E6 VOUT1 0 VALUE { V(VOUT, GND) }
R_R2 V_INT VXX {PSRR*RINP}
R_R14 N906370 N906376 1.5k TC=0,0
C_C2 VXX V_INT {1/(6.28*PSRR*RINP*ZERO*1)}
.PARAM psrr=0.3m isc=160m venb=2 zero2=100meg pole2=1k ilim=0.520
+ pole=300 rinp=1e7 zero=0.1meg rout=66.67m ttrn=750u ehys=1.3 vref=0.6
+ drop=140m
.ENDS TPS7A20L_TRANS
*$
.subckt TPS7A20L_S3 1 2 3 4
S_S3 3 4 1 2 _S3
RS_S3 1 2 1G
.MODEL _S3 VSWITCH Roff=1E9 Ron=0.1m Voff=0.2 Von=1
.ends TPS7A20L_S3
*$
.subckt TPS7A20L_S1 1 2 3 4
S_S1 3 4 1 2 _S1
RS_S1 1 2 1G
.MODEL _S1 VSWITCH Roff=1E9 Ron=0.1u Voff=0.2 Von=1
.ends TPS7A20L_S1
*$
.subckt TPS7A20L_S2 1 2 3 4
S_S2 3 4 1 2 _S2
RS_S2 1 2 1G
.MODEL _S2 VSWITCH Roff=1k Ron=1 Voff=0.0V Von=0.8V
.ends TPS7A20L_S2
*$
.subckt TPS7A20L_H2 1 2 3 4
H_H2 3 4 VH_H2 1
VH_H2 1 2 0V
.ends TPS7A20L_H2
*$
.subckt TPS7A20L_F1 1 2 3 4
F_F1 3 4 VF_F1 1
VF_F1 1 2 0V
.ends TPS7A20L_F1
*$
.subckt d_d1 1 2
d1 1 2 dd1
.model dd1 d
+ is=1e-015
+ tt=1e-011
+ rs=0.05
+ n=0.1
.ends d_d1
*$
.SUBCKT COMPHYS_BASIC_GEN INP INM HYS OUT PARAMS: VDD=1 VSS=0 VTHRESH=0.5
EIN INP1 INM1 INP INM 1
EHYS INP1 INP2 VALUE { IF( V(1) > {VTHRESH},-V(HYS),0) }
EOUT OUT 0 VALUE { IF( V(INP2)>V(INM1), {VDD} ,{VSS}) }
R1 OUT 1 1
C1 1 0 5n
RINP1 INP1 0 1K
.ENDS COMPHYS_BASIC_GEN
*$
.SUBCKT D_D1 1 2
D1 1 2 DD1
.MODEL DD1 D( IS=1e-15 TT=10p Rs=0.05 N=.1 )
.ENDS D_D1
*$
.SUBCKT BUF_DELAY_BASIC_GEN A Y PARAMS: VDD=1 VSS=0 VTHRESH=0.5 DELAY = 10n
E_ABMGATE1 YINT1 0 VALUE {{IF(V(A) > {VTHRESH} ,
+ {VDD},{VSS})}}
RINT YINT1 YINT2 1
CINT YINT2 0 {DELAY*1.3}
E_ABMGATE2 YINT3 0 VALUE {{IF(V(YINT2) > {VTHRESH} ,
+ {VDD},{VSS})}}
RINT2 YINT3 Y 1
CINT2 Y 0 1n
.ENDS BUF_DELAY_BASIC_GEN
*$
.SUBCKT AND2_BASIC_GEN A B Y PARAMS: VDD=1 VSS=0 VTHRESH=0.5
E_ABMGATE YINT 0 VALUE {{IF(V(A) > {VTHRESH} &
+ V(B) > {VTHRESH},{VDD},{VSS})}}
RINT YINT Y 1
CINT Y 0 1n
.ENDS AND2_BASIC_GEN
*$
.SUBCKT SRLATCHRHP_BASIC_GEN S R Q QB PARAMS: VDD=1 VSS=0 VTHRESH=0.5
GQ 0 Qint VALUE = {IF(V(R) > {VTHRESH},-5,IF(V(S)>{VTHRESH},5, 0))}
CQint Qint 0 1n
RQint Qint 0 1000MEG
D_D10 Qint MY5 D_D1
V1 MY5 0 {VDD}
D_D11 MYVSS Qint D_D1
V2 MYVSS 0 {VSS}
EQ Qqq 0 Qint 0 1
X3 Qqq Qqqd1 BUF_BASIC_GEN PARAMS: VDD={VDD} VSS={VSS} VTHRESH={VTHRESH}
RQq Qqqd1 Q 1
EQb Qbr 0 VALUE = {IF( V(Q) > {VTHRESH}, {VSS},{VDD})}
RQb Qbr QB 1
Cdummy1 Q 0 1n
Cdummy2 QB 0 1n
.IC V(Qint) {VSS}
.MODEL D_D1 D( IS=1e-15 TT=10p Rs=0.05 N=.1 )
.ENDS SRLATCHRHP_BASIC_GEN
*$
.SUBCKT BUF_BASIC_GEN A Y PARAMS: VDD=1 VSS=0 VTHRESH=0.5
E_ABMGATE YINT 0 VALUE {{IF(V(A) > {VTHRESH} ,{VDD},{VSS})}}
RINT YINT Y 1
CINT Y 0 1n
.ENDS BUF_BASIC_GEN
*$
.SUBCKT INV_DELAY_BASIC_GEN A Y PARAMS: VDD=1 VSS=0 VTHRESH=0.5 DELAY = 10n
E_ABMGATE1 YINT1 0 VALUE {{IF(V(A) > {VTHRESH} ,{VDD},{VSS})}}
RINT YINT1 YINT2 1
CINT YINT2 0 {DELAY*1.443}
E_ABMGATE2 YINT3 0 VALUE {{IF(V(YINT2) > {VTHRESH} ,{VSS},{VDD})}}
RINT2 YINT3 Y 1
CINT2 Y 0 1n
.ENDS INV_DELAY_BASIC_GEN
*$

"

Regards

HARI
