TPS51218: About 0.1uF Capacitor and 100ohm resistor of function in Figure20

Hi Team,

Would you tell me about the progress on this matter?

I’d greatly appreciate your verification.

Regards,

Kanemaru

Hi,

Besically, the R and C is not needed for the regulator design, just you can calculate the Vout follow reference desgin, delete R-100 and 0.1uf.

and route FB/FB-GND differential line from Vout and Vout-GND back to IC.

Regards,

Yuchang

Hi Yuchang-san,

Thank you for your response.

According to your comment, I understand that we can delete 100ohm and 0.1uF even if we design the remote sensing circuit.

Is my understanding correct?

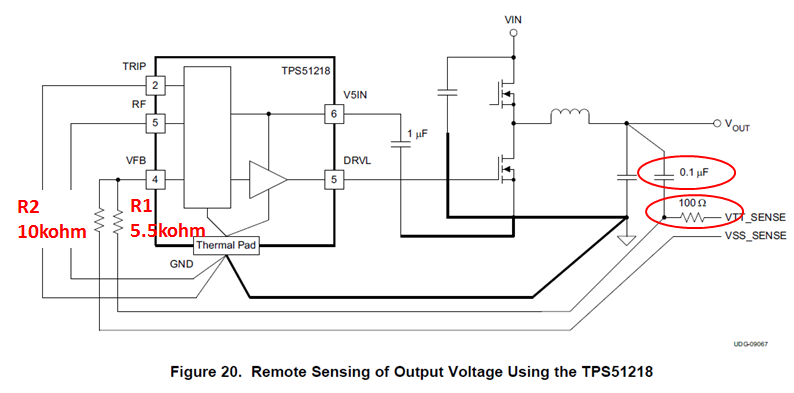

If yes, why is “100ohm and 0.1uF” placed in Figure20?

Does an evil not occur even if those parts aren't placed?

Regards,

Kanemaru

Hi Kanemaru-san,

Yes, I think 100ohm and 0.1uf can be deleted for application.

Actually, I have no idea about why these two components showed in the layout guide, This part is an old mature part, you can see the EVM design, reference design in DS and simulation tool design are all not mounted these circuit. I checked some innner database but have not found any issue related to this circuit as well.

Regards,

Yuchang

Hi Yuchange-san,

Thank you for the information.

So, is “100ohm and 0.1uF” a mistake?

Sorry for troubling you when you are busy.

Regards,

Kanemaru

Hi Yuchang-san,

Thank you for the information.

I greatly appreciate your cooperation.

Regards,

Kanemaru
