LM9061-Q1: Vout issue of LM9061-Q1

Jason Chien42

Part Number: LM9061-Q1

Dear Sir:

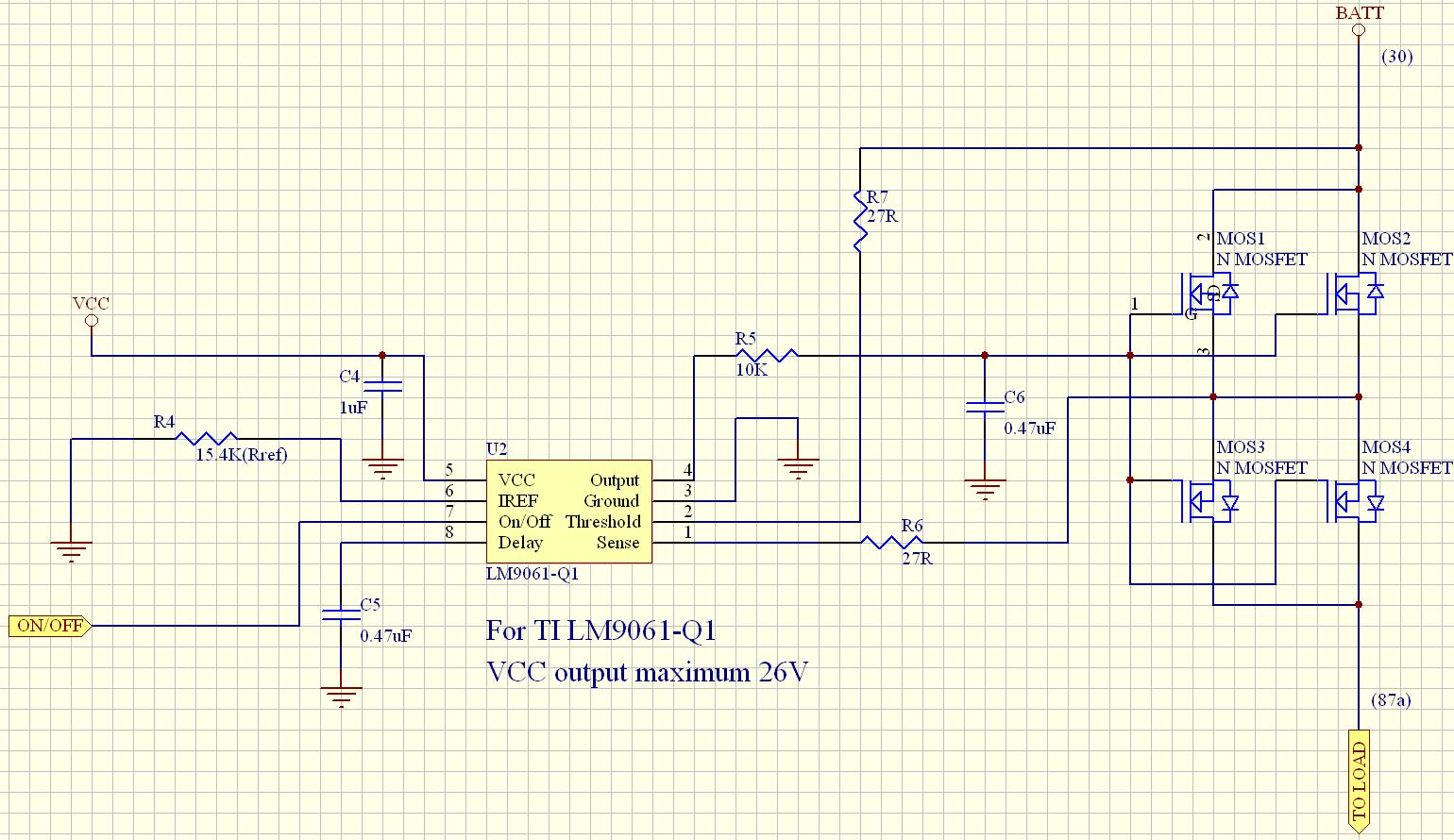

We reference datasheet figure 22 of LM9061-Q1 to design below circuit, Then Vout only 7.5V~8V , It can't turn on the MOS completely , What's wrong for this design? Does TI have some suggest to us? Thanks?

over 5 years ago

0 Rakesh over 5 years ago

TI__Guru* 91206 points

Hi Jason,

Schematic needs correction. Please see below.

Best Regards,

Rakesh

0 Jason Chien42 over 5 years ago in reply to Rakesh

Expert 1180 points

Dear Rakesh:

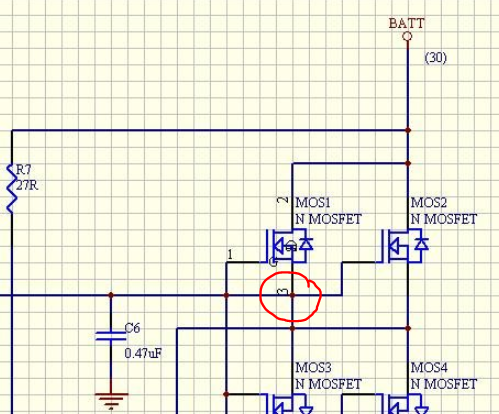

Thanks for your reply. After check , the point have mistake on schematic , Then actual PCB is correct as below picture , Would you kindly provide some suggest to us?

0 Rakesh over 5 years ago in reply to Jason Chien42

TI__Guru* 91206 points

Hi Jason,

Please provide test waveforms for
1. Vin, Vout, GATE, Iin
2. Vout, GATE, Iin, delay

Test again with R5 short and C6 Open

Best Regards,
Rakesh

0 Rakesh over 5 years ago in reply to Rakesh

TI__Guru* 91206 points

Hi Jason,

Does testing with R5 short and C6 Open, helped you?

Best Regards,
Rakesh

0 Rakesh over 5 years ago in reply to Rakesh

TI__Guru* 91206 points

Hi Jason,

If it does not resolved, please feel free to re-open the thread.

Best Regards,
Rakesh
