BQ40Z80EVM-020: Evaluation board doesn't stay connected to Bqstudio

Nick_UAV

Part Number: BQ40Z80EVM-020
Other Parts Discussed in Thread: BQ40Z80, BQSTUDIO

Hi,

I'm trying to set up a bq40z80 evm before going the custom pcb route for a battery pack, but I can't get bqstudio to stay connected to the board for more than a few seconds. Basically if I press the Wake button, the chip's adress pops up on the left and everything seems to communicate, but then after a while it disconnects.

My configuration is the following:

standard evm board, with d3 and r7 removed as per datasheet
4s 10A battery pack connected to 1n...4p then shorted 4p,5p,6p,7p together.
system presence shorted to PACK -

Did i miss somehting?

Thank you very much,

Have a nice day,

nick

over 6 years ago

0 Batt over 6 years ago

TI__Mastermind 42535 points

The default config is for 7s, you will need to have a charger voltage on the pack side and then change cell config to 03 to stop shutdown.

0 Nick_UAV over 6 years ago in reply to Batt

Prodigy 60 points

Hi Batt,

Thank you very much for your answer. I'll hook up my power Supply to the pack side then!

Thank you very much,

regards,

nick

0 Nick_UAV over 6 years ago in reply to Batt

Prodigy 60 points

Hi Batt,

I tried to setup the cell config to 4 ( I suppose the 03 was a miswriting?) using an external power supply as suggested but the board still doesn't stay on when i disconnect the PS. I wanted to try a full reset but the "import default" feature doesn't work..

Would it be possible to send me the correct default config file?

Thank you,

Nick

0 Batt over 6 years ago in reply to Nick_UAV

TI__Mastermind 42535 points

Hi Nick,

Please disable auto shutdown in the power registers if you have that enabled. If you have a 4s config you need to short VC3 through VC6. The default gg is attached.

defaults.gg.csv.zip

0 Nick_UAV over 6 years ago in reply to Batt

Prodigy 60 points

Hi Batt,

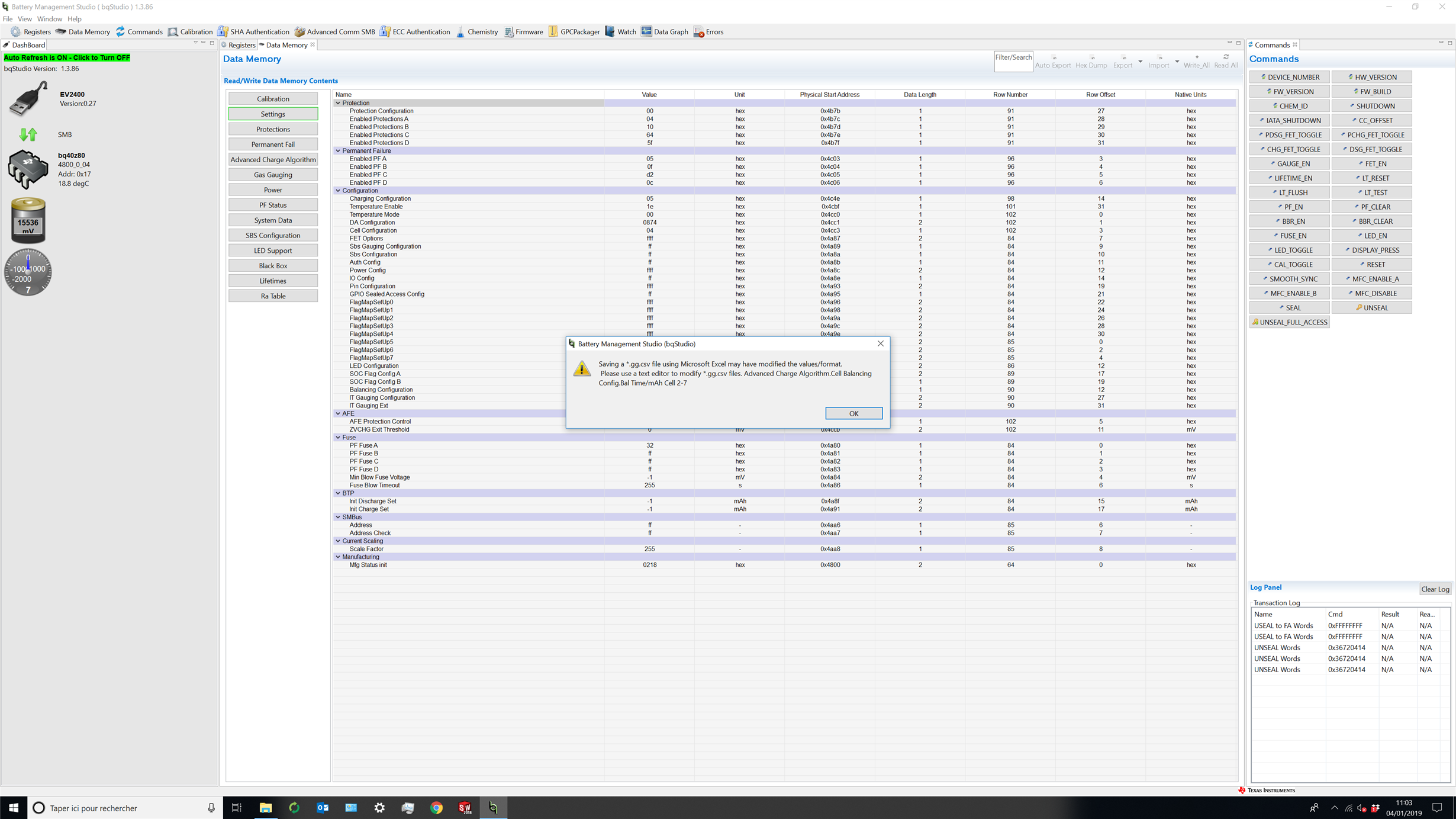

Thanks for the quick answer. I tried to load the .gg.csv file you sent me but I got these two errors.

I definitely think there is something weird because lots of settings differ from the defaults on my config while I didn't change them

nick

0 Batt over 6 years ago in reply to Nick_UAV

TI__Mastermind 42535 points

Do not use excel to open or change the csv file. It is meant to be used only with notepad or other text edittors.

0 Nick_UAV over 6 years ago in reply to Batt

Prodigy 60 points

I didn't open it at all. Just loaded straight out the the zip to bqstudio

regards,

nick

0 Nick_UAV over 6 years ago in reply to Nick_UAV

Prodigy 60 points

OK, after re-setting every parameter one by one by hand, and setting it back to 4 cells as only modified setting, it connects to bqstudio and stays connected without external power supply.
I will now just need to calibrate everything in order for it to allow the toggling of the discharge fet right?

thank you,

Best regards,

Nick

0 Batt over 6 years ago in reply to Nick_UAV

TI__Mastermind 42535 points

Good that it is working. You are right.
