TPS92641EVM: Tricky PCB lay-out between inductor and power output.

Jaesung Lee

Prodigy 75 points

Part Number: TPS92641EVM

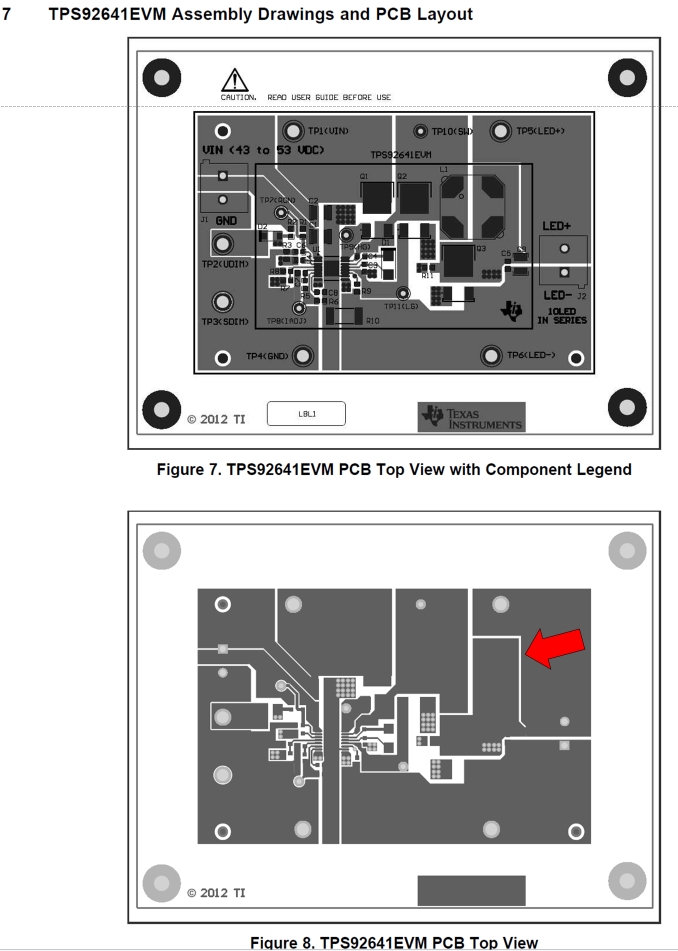

I found the long slit at LED+ output of TPS92641EVM.

I want to know what the slit is for?

(page 10, User's Guide for the TPS92641EVM, slvu823.pdf)

over 6 years ago

0 Irwin Nederbragt over 6 years ago

TI__Mastermind 28655 points

Hello,

Since the output current is only 1A I would guess that slit is there to steer the current to the output connector. The board has a lot of planes on that layer that do not really need to be there. It was probably just a layout preference.

Best Regards,

Power management
