TPS61089: Via on SW pad

Shubiao Wang

Part Number: TPS61089

Hi,

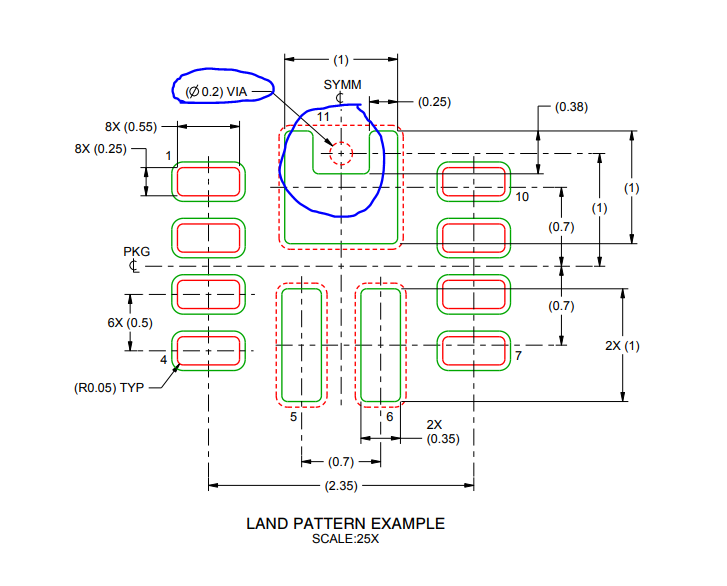

I have two questions about the Via shown on the land pattern of TPS61089, datasheet p27.

1. what is the function of the Via shown in the picture below?

2. what is the meaning of SYMM?

3. What should I do with this Via, when I do PCB layout?

Best regards,

Shubiao

0 Helen chen over 5 years ago

Hi Shubiao,

I replied you question on line, please check below comments:

1. what is the function of the Via shown in the picture below? --> It is for thermal dissipation.

2. what is the meaning of SYMM? --> symmetrical mechanical structure

3. What should I do with this Via, when I do PCB layout? --> Suggest you add it to the pcb lib. You can refer to the TPS61089EVM for a reference.

0 Helen chen over 5 years ago

By the way, if you have further questions, we can discuss by email.
