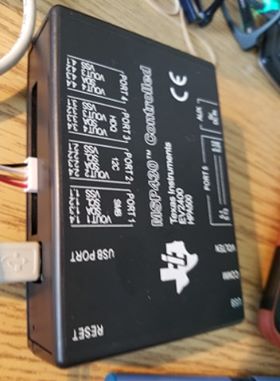

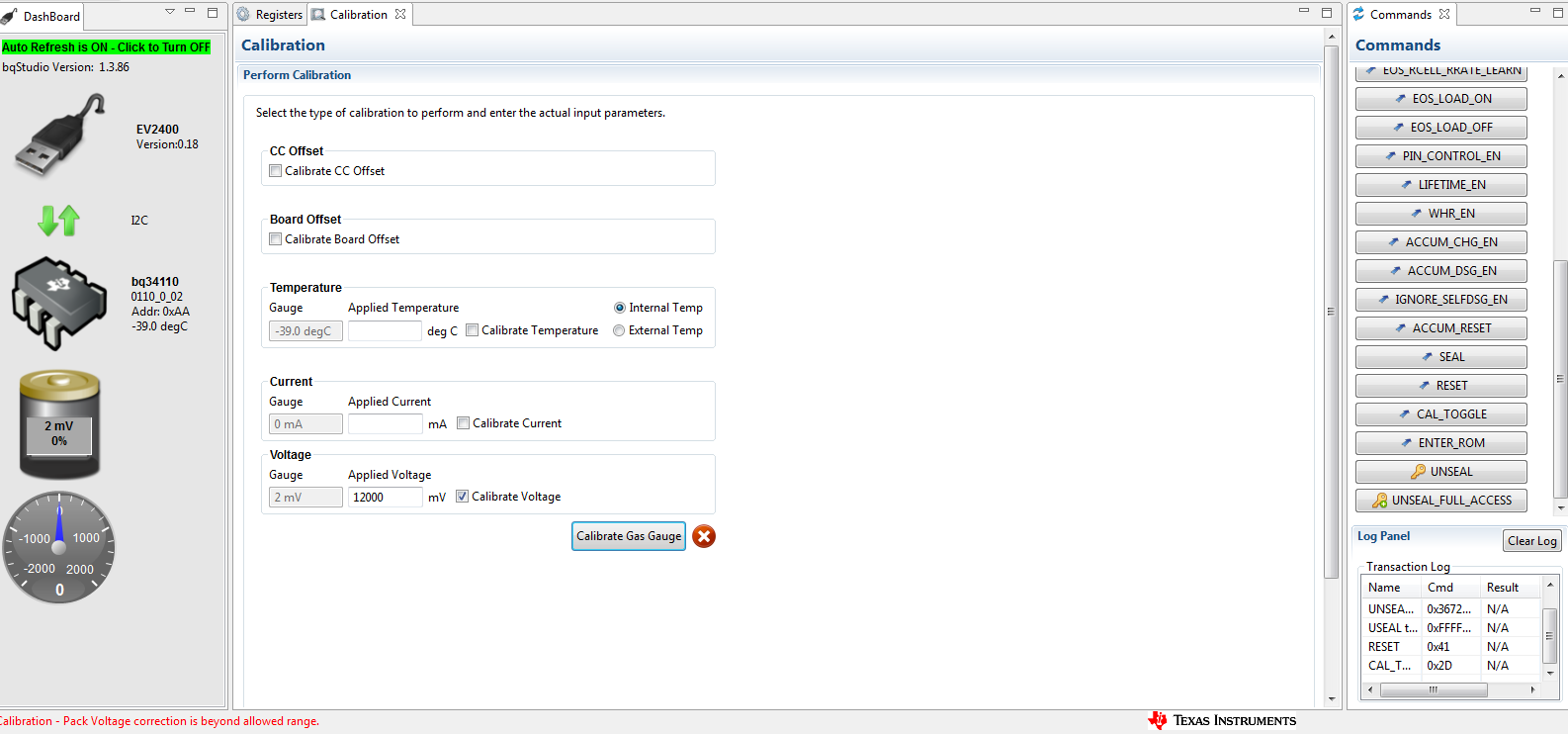

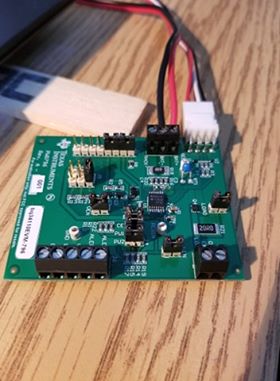

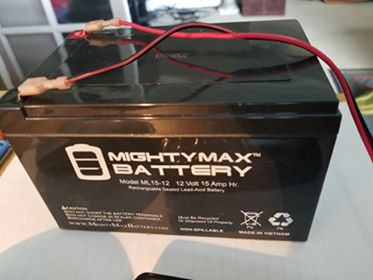

I have a 12V Migthymax battery Model ML15-12 battery and despite your previous answers, I still cannot calibrate my battery voltage with bqStudio. My jumper is in the right place and I followed the setting you mentioned. On the other hand, on my REGIN I have 5.23V and on the REG25 I have 0V. I changed the bq34110 and it works. The error `` Calibration - Pack voltage correction is beyond allowed range`` persists. In addition, in bqStudio when I press read all, all my parameters are modified and return by default. My battery remains gray and indicates 2mV. What can be my problem?

over 5 years ago

0 Wyatt Keller over 5 years ago

TI__Guru** 105590 points

Hello,

Can you provide some screenshots of the bqStudio interface with these readouts?

Sincerely,

Wyatt Keller

0 user6359908 over 5 years ago in reply to Wyatt Keller

Prodigy 100 points

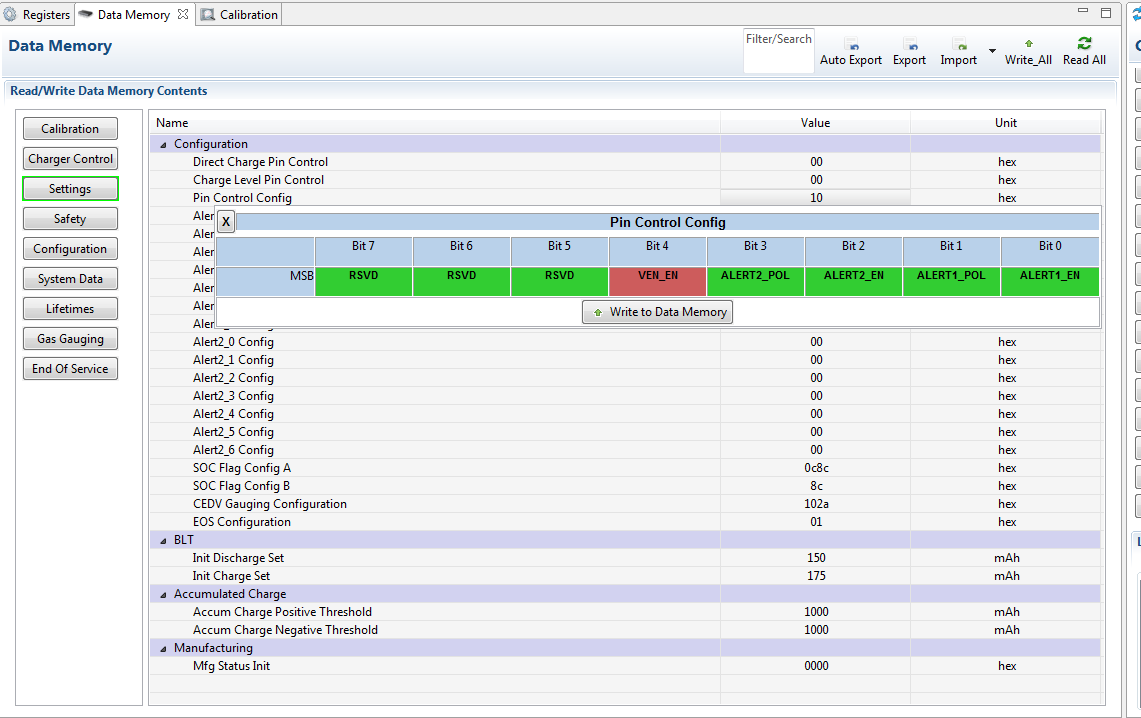

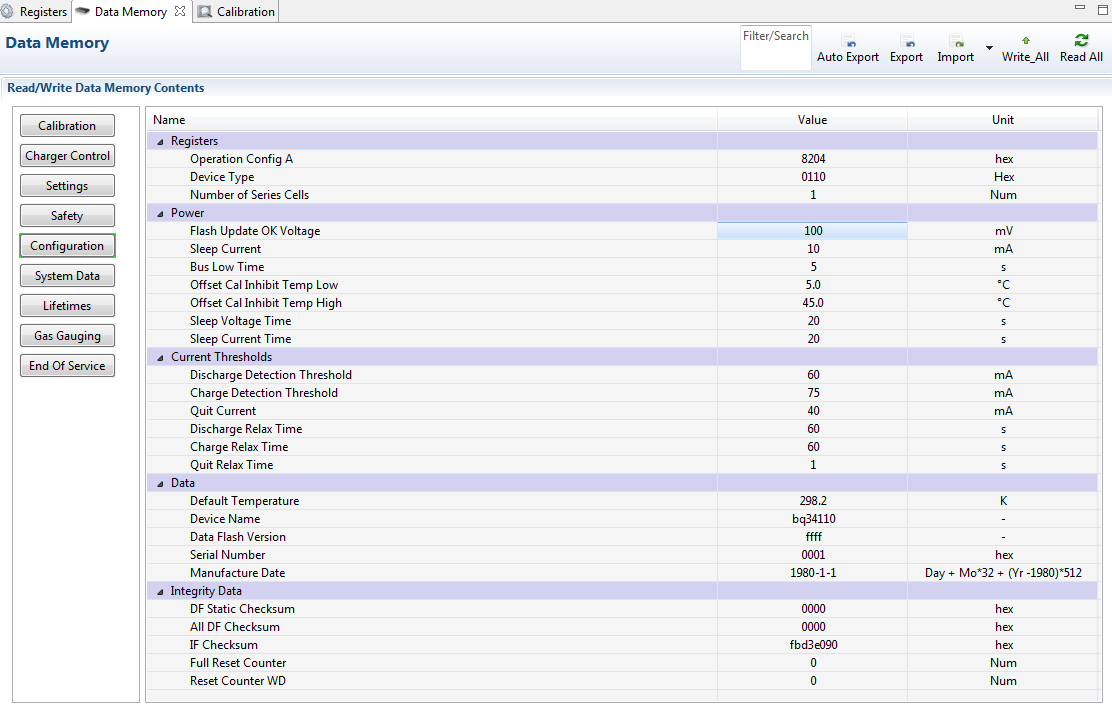

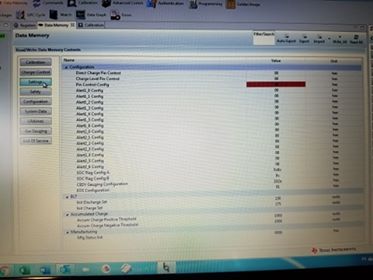

yes, here are all the settings I have.

0 user6359908 over 5 years ago in reply to user6359908

Prodigy 100 points

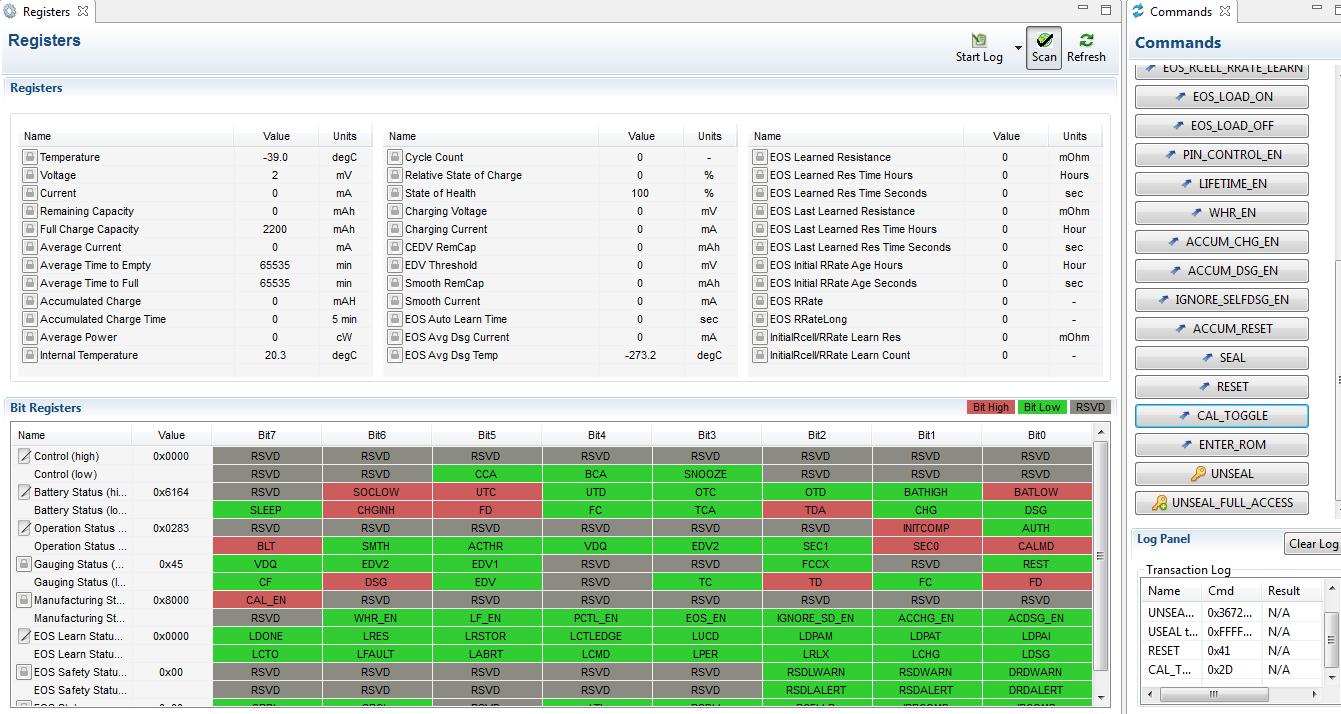

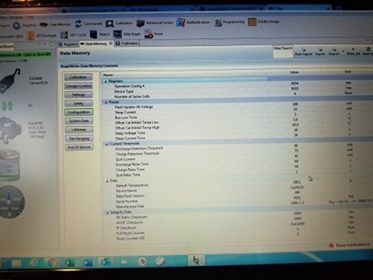

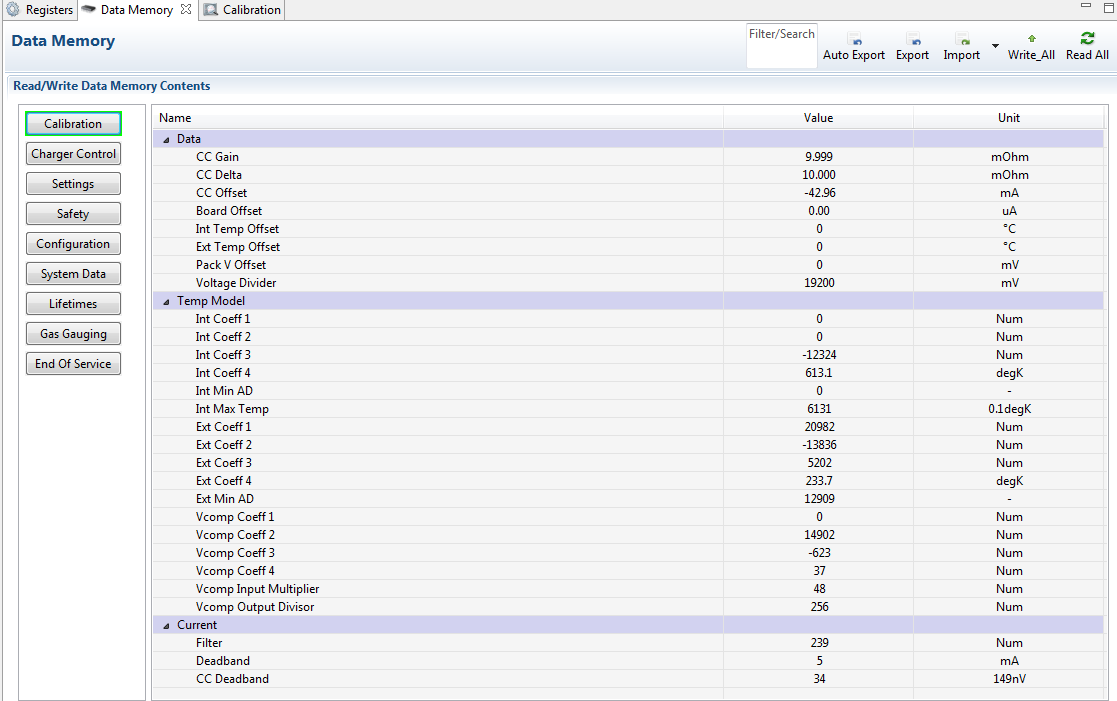

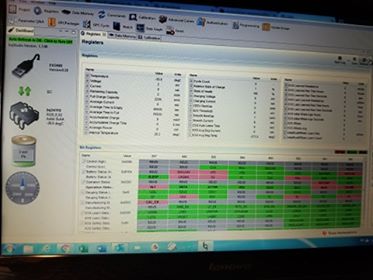

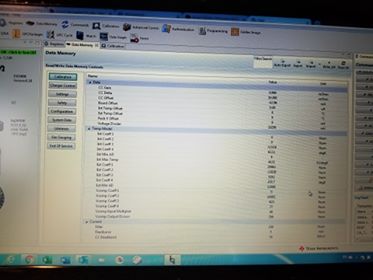

Sorry for the poor quality here are the new images.

0 user6359908 over 5 years ago in reply to user6359908

Prodigy 100 points

Do you have any news please.

0 Wyatt Keller over 5 years ago in reply to user6359908

TI__Guru** 105590 points

Your jumpers and connections seem correct, have you followed all the calibration steps in the EVM guide?

https://www.ti.com/lit/ug/sluubi1a/sluubi1a.pdf?ts=1591307372258

Sincerely,

Wyatt Keller

0 user6359908 over 5 years ago in reply to Wyatt Keller

Prodigy 100 points

yes, i followed all the steps. I even went to see all the other publications on this subject, but still nothing happens. Are my values for REGIN and REG25 normal?

0 user6359908 over 5 years ago in reply to user6359908

Prodigy 100 points

Y a-t-il des paramètres de base à avoir pour les bits? And is there a way to know if the unseal and unseal full access command has been sent?

0 Andy Liu (BMS) over 5 years ago in reply to user6359908

TI__Guru 52115 points

I would suggest you check the SEC1 and SEC0 bits. You can find more details about these two bits in the BQ34100 TRM.

Andy

0 user6359908 over 5 years ago in reply to Andy Liu (BMS)

Prodigy 100 points

I don't think I found the right document. can you be more specific please?

0 Wyatt Keller over 5 years ago in reply to user6359908

TI__Guru** 105590 points

Hello,

Could you double check your battery connection to the EVM? the 2mV may be correct and when you try to calibrate the calibration factor is too high. There could also be a problem with your EVM.

Sincerely,

Wyatt Keller

0 user6359908 over 5 years ago in reply to Wyatt Keller

Prodigy 100 points

thanks, can you explain to me what you mean by EVM please?

And my battery connections seem good.

0 Wyatt Keller over 5 years ago in reply to user6359908

TI__Guru** 105590 points

Hello,

The Evaluation Module (the bq34110EVM-796) might have been damaged. it appears the gauge is working but the calibration factor is too high from 2mV to 12V.

Sincerely,

Wyatt Keller

0 user6359908 over 5 years ago in reply to Wyatt Keller

Prodigy 100 points

ok thanks and what part could it be to change if the bq34110 has already been changed? To complete the information, I noticed that the calibration is possible from 100 to 130mV only. Would this be a setting I need to change? And when I modify a parameter, when I do read all or write all, all the parameters come back by default so is it possible to know if the parameters are really modified. Thank you

0 user6359908 over 5 years ago in reply to user6359908

Prodigy 100 points

Thank you, it was the card that had a problem, I simply changed the card and the problem was solved.
