BQ80XRW - Can somebody provide help information.

Anyone???

For the I2CWriteBlock: nWordAddr, what should be the format or syntax if i need to query Command 0x0001?

Hi,
Here is quick example that can help you hopefully. This is a python script using the bq80xrw, that is reading 0x0001 using the method described in chapter 12 of the TRM (SLUUA65)

#-----------------------------------------------------------------------------------------
import bq80xrw
import sys
from time import sleep

def exit_fail(message, code=1):
bq80xrw.CloseDevice()
print(message)
sys.exit(code)

if not bq80xrw.OpenFirstDevice():
exit_fail("Could not open device")

# little endian writing 0x01 0x00 for 0x0001 to 0x3E for block access
bq80xrw.I2CWriteBlock(0x3E, [0x01, 0x00], 0xaa)
sleep(1)
var1 = bq80xrw.I2CReadBlock(0x3E, 4, 0xaa)
# Note: Value returned will include the command 0x01, 0x00 first and then the data that is why four bytes were read.
# Also value returned as Int not Hex
print var1
sleep(1)

bq80xrw.CloseDevice()
print "End Test"
#---------------------------------------------------------------------------------------
Swami

Thanks Swami...

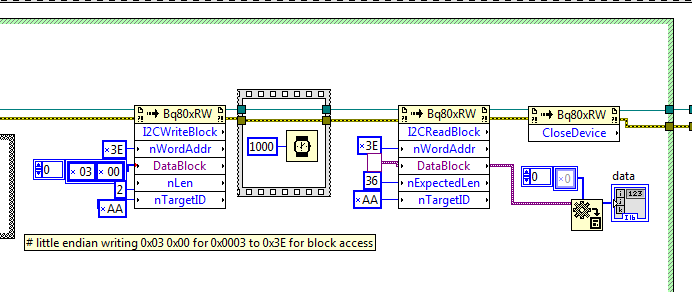

Here's what i have in Labview.

Instead of 0x0001 i used 0x0003 for this screen capture.

There's no error, but it always spit out the last read result read from the BQ Management Studio no matter what i query in Labview.

See attached photos

Hi,

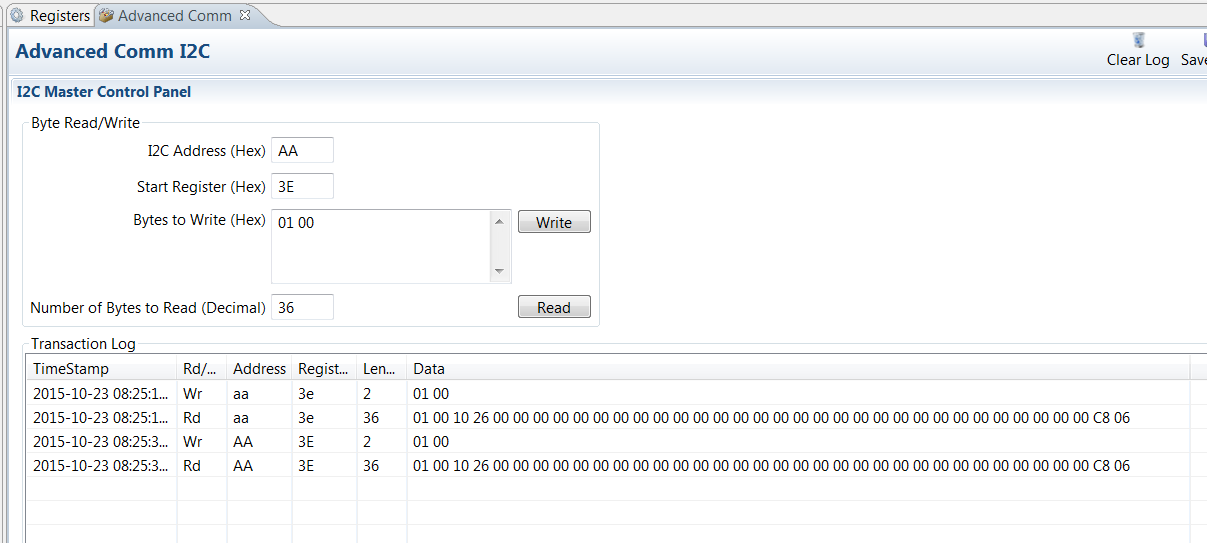

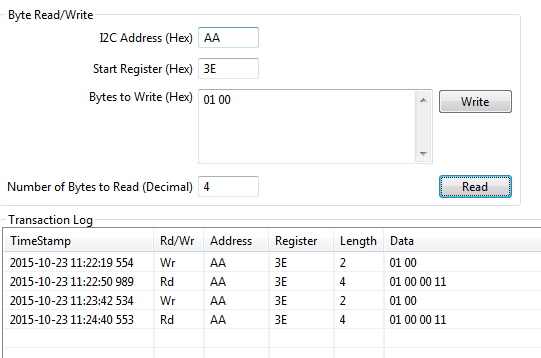

I tried the same thing on bqStudio, and here is what I get:

I am not sure right now why the response is not coming out right on your system. Let me check to see what can cause this situation.

Also, the labview program does look correct.

Regards,

Swami

Sorry the image did not post:

It works fine on BQ Management studio, but when I used the BQ80xRW as an activeX on Labview, it doest give me the right result. It always spit out the last reading from BQ Management Studio. It looks like the write information written thru I2CWriteBlock was not written properly but i didnt get any error.

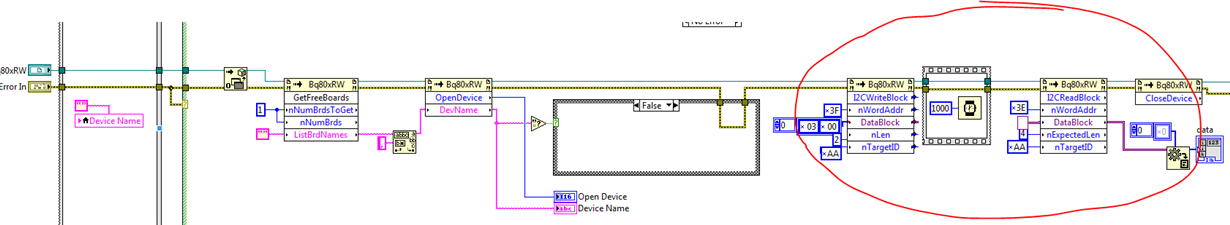

Here's my code:

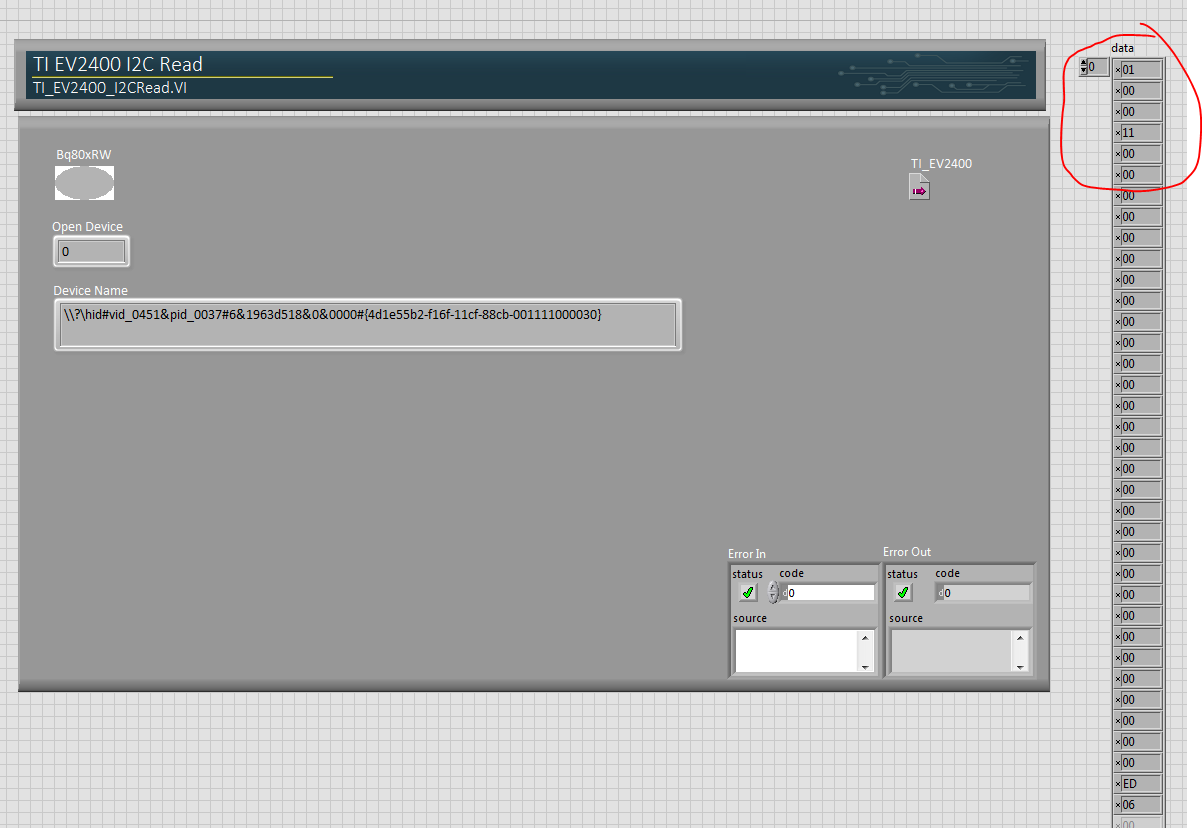

Here's the result:

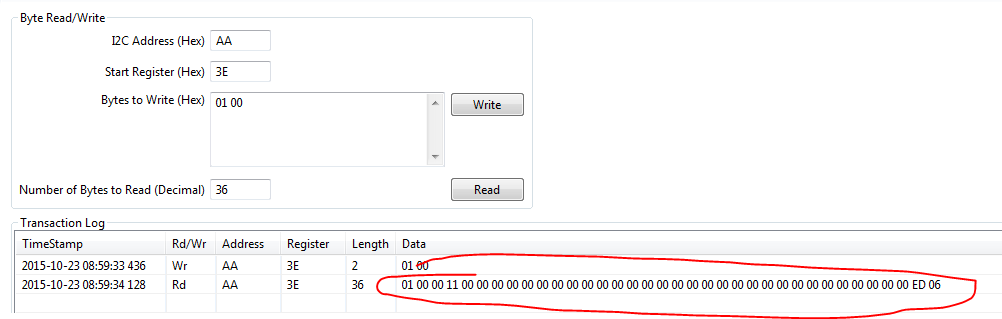

Same as the last result from BQ Management Studio:

Additional info:

I tried to capture waveform on both SDA and SCL. The BQ80xRW 12CWriteBlock is not sending any information. As in nothing....

Here's what i captured from BQ Management Studio:

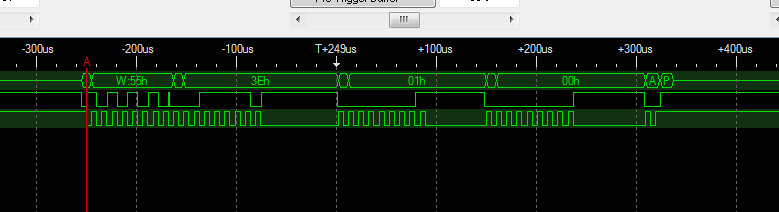

Waveform for Write Command

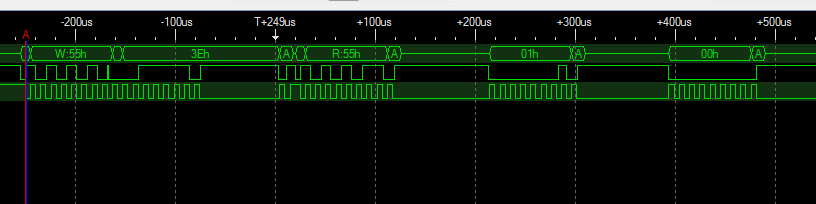

Waveform for Read Command:

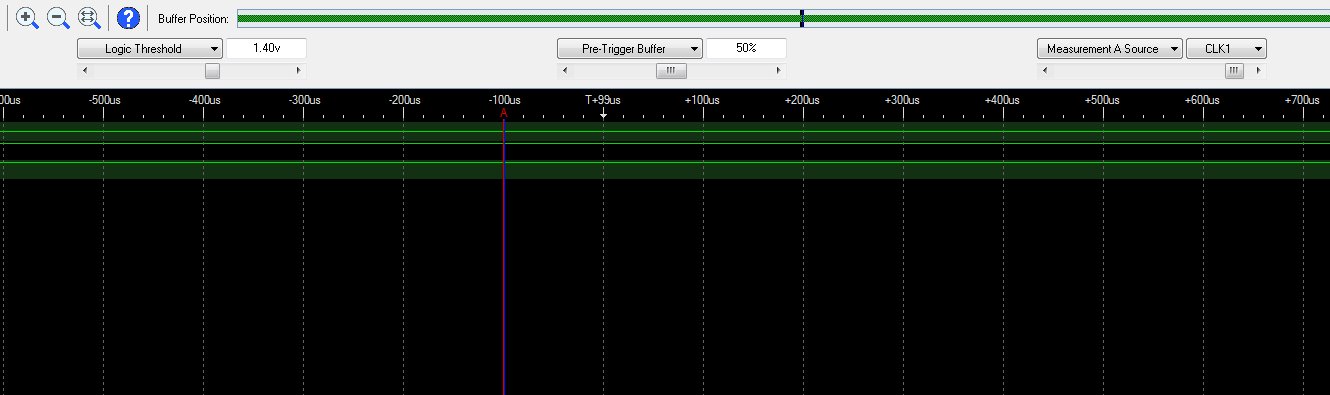

 and here's for the using TI BQ80xRW ActiveX, I2CWriteBlock:

Hi,
That makes sense then why it is always reading back the last command. I have not tried it with LabView. Let me try to set it up, but it may take a little bit of time. I will try to get back to you soon.
Regards,
Swami

Swami do you know where the bq80rw library that you import is located? Is that something you could share with me?

Thanks,
Chris

It should be located in the "BatteryManagementStudio" folder. The default location is under "c:\ti\BatteryManagementStudio"
Regards,
Swami

Thanks, pardon my ignorance but since that is a .dll binary, I don't think it can be easily imported into Python? Did you have to do anything to port the code to Python, or are you running some other module that allows you to import the .dll?

Thanks

Chris

Hi Chris,
You are right, normally you have to implement a wrapper using the information in the header file to import it for python. I need some more time to check if we have any example wrappers that I can provide.
I will try to see what I can find and update you tomorrow.
Regards,
Swami

Thanks Swami,

Any updates on a python wrapper?

Hi Swami,

could you please check if you can send the Python wrapper.

Thanks
