Hi Sir,

Would you pls advise what different between XLAT and BLANK?

(BLANK=H output=0 ; PWM initial ; grayscale reset to 0)

Thanks, Ian.

  • Hi Ian,
    XLAT is used for communication, as the latch signal for the device, latching common shift register data to the device. Blank is a switch to turn-on or -off the output channels.

    Regards,
    Shawn.
  • In reply to Shawn Ding:

    Hi Shawn,

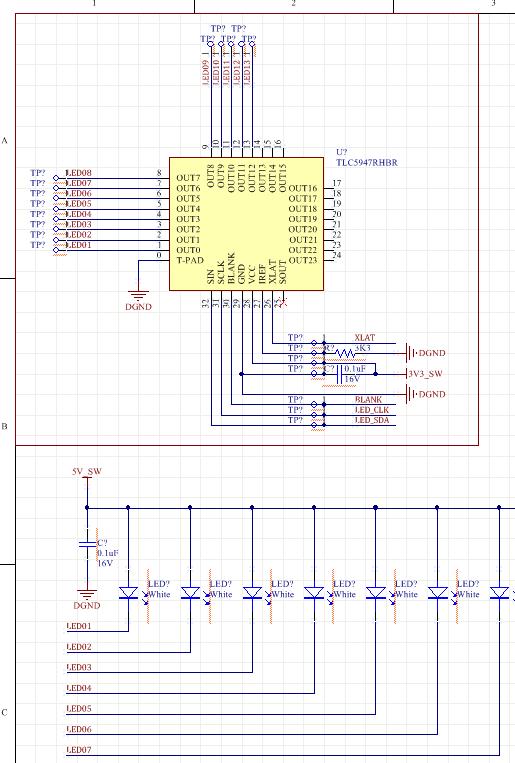

    Pls help for 3 pins application as below, thanks.
    1. Blank 這應該是控制PWM on/off?
    2. SOUT 應該是控制多顆driver串接用吧?只有一顆driver應該可以floating?
    3. XLAT 這支腳不大了解,字面的理解好像也是控制輸出,有點類似會reset的動作,能解釋一下嗎??
    Thanks, Ian.
  • In reply to Ian Wang:

    1, Blank 直接控制输出on/off
    2, Yes, you are right
    3, 这个功能可以理解为协议需要,协议要知道什么时候把common register 的数据复制下来供当前芯片使用,同时刷新芯片当前的寄存器
  • In reply to Shawn Ding:

    Hi Shawn,
    Thanks a lot.
    再次確認一下
    GPIO programing 為Mute的功能後,
    該GPIO腳是input還是output呢?
    從表格來看並沒有說mute是input or output,
    但接線示意圖上面定義
    我會解讀成open drain外部電壓給一個H準位,
    當我某些條件下要做mute時,
    由MCU控制該腳位拉L(對AMP來說為input)
    這樣正確嗎?
    Thanks, Ian.
  • In reply to Ian Wang:

    Hi Lan,

    For SDO, it should be push-pull, in high resistance state.

    For the other logic pins, it should be the input states.

    Regards,

    Shawn.

  • In reply to Shawn Ding:

    Hi Shawn,

    請問一下兩個問題,

    1.XLAT是否需要給一個default準位?

    2.TLC5947 input 3.3V 但LED給5V這樣會有問題嗎?

  • In reply to Ian Wang:

    Sir,
    Would you pls help it? Thanks.
  • In reply to Ian Wang:

    Hi Lan,
    1, no need
    2, yes, it is no problem.

    Regards,
    Shawn.
