TPS61322: Output

Nidhi Rao1

Prodigy 220 points

Part Number: TPS61322
Other Parts Discussed in Thread: TPS61029, TPS61016,

I am actually using TPS613221ADBVT.

Vin - 1.2V

Vout - 3.3V

Current output: 150mA

Without any circuit to drive current drawn is 150mA. Output voltage is 1.5V. Can yiu please list probable cause

over 5 years ago

0 Nidhi Rao1 over 5 years ago

Prodigy 220 points

I am using this for a Wifi circuit. So I understand the noise in the circuit might cause the variation. It is causing my circuit to load and the current is about 250mA

0 Minqiu Xie over 5 years ago

TI__Mastermind 21565 points

Hi Nidhi:
Did you do the test based on the EVM? If not, please share the schematic and layout for me. Thank you~

Besides, what's the type of the load? And when you load it?

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

No not in the EVM

Load is a wifi module.

The current required by my circuit is 150mA. But once when I put the step upcircuit. Output voltage drops to 1.7V and current to 260mA

0 Nidhi Rao1 over 5 years ago in reply to Nidhi Rao1

Prodigy 220 points

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

HI Nidhi:
Please remove the L3 in your board and use a resistance as the load to test the capability of the Boost converter. I guess your load may larger than 150mA for some moments.

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

Hello Minqiu,

Yes we do observe spurious can you please suggest any alternate part number?

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
Please confirm the load condition, so that I could give a proper advise.

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

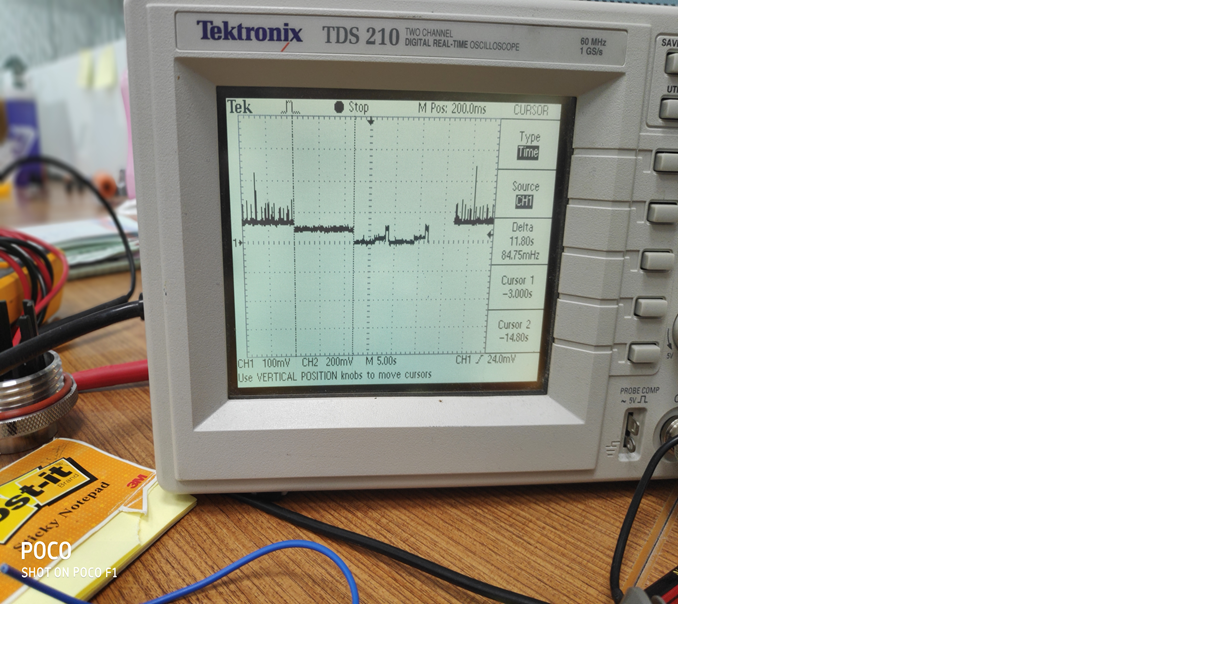

The load is a wireless module. So there is internet connection so the current waveform looks like this. The current profile is measured across 2 ohm resistor kept in series with power supply

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

HI Nidhi:
The current is change all time but the maximum seems below 150mA.

I'll recommend you:
1# Startup with no load. After that, enable the wireless module.
2# Replace the load with a Resistance to test the current capability of the converter.

Besides, we have TPS61099x with better efficiency and TPS61029 with larger current capability.

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

1# is not possible as we want it for continuous operation
2# whatever is its capability i don't think its able to handle the spurious responses.

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
1# It could be continuous operate after startup. It's hard for Boost to startup with full load, or you may need much larger current device with higher cost.
2# It's recommended to debug the system with each single part at first. Or it's hard to focus the key point.

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

-Can I put two regulators in parallel?

-I was considering with replacing TPS 61016

-Can I have some support as i was considering as I need to do testing and i am facing some crucial deadlines. Can you put me in touch with someone in India with assistance to have multiple samples here

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nedhi:
It's not recommended to parallel. And tps61016 may not has enough current capability for your case.

You could apply the sample at ti.com or contact the distributors.
TI Authorized Semiconductor Distributors: www.ti.com/.../distributors.html

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

Please can you recommend parts. Why not TPS 61016?

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
Sorry, that I'm confused about your load condition. The TPS61016 is hard to support boost from 1.2 to 3.3/260mA.
We have larger current capability IC, as TPS61029 as I mentioned before. And after all, it's better for you to confirm the load condition before choice a converter.

0 Nidhi Rao1 over 5 years ago in reply to Minqiu Xie

Prodigy 220 points

The recommended supply IC for stepdown is : AP2114H-3.3TRG1

SO I dont think TPS61029

0 Minqiu Xie over 5 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
May you share the system block for me ? I didn't see where the buck converter is.
And please notice that current load is a key spec for boost converter. Or we couldn't recommended a proper part. TPS61029 has the larger current capability than TPS61322 and TPS61016. But I still confirm if it suit for you, as the lack of key spec.

0 Nidhi Rao1 over 5 years ago in reply to Nidhi Rao1

Prodigy 220 points

So I was just checking the load of the circuit with resistor and apparently its not able to load with even 66 ohm load. thats 40mA. can this be a faulty IC?

0 Nidhi Rao1 over 5 years ago in reply to Nidhi Rao1

Prodigy 220 points

So I have a battery followed by infaillaible resistor of 10Ohm and then the TPS circuit. I understand that the resistor drops the voltage to 0.854 causing the circuit to load.

0 Minqiu Xie over 4 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

HI Nidhi:
I really want to give my suggestion but I still have something confused about your system and test result.
It's appreciated to attach a system block and necessary waveform including Vin, Vout, SW, and Icoil prefer. Thank you.

0 Nidhi Rao1 over 4 years ago in reply to Minqiu Xie

Prodigy 220 points

0 Minqiu Xie over 4 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
Sorry, I didn't see the step-down converter as you mentioned.
And please add the waveforms including Vin, Vout, SW, and Icoil. I afraid the Vin may drop a lot when it loaded.

0 Nidhi Rao1 over 4 years ago in reply to Nidhi Rao1

Prodigy 220 points

0 Nidhi Rao1 over 4 years ago in reply to Nidhi Rao1

Prodigy 220 points

If I remove infallible resistor and reduce voltage as 2V it loads with the circuit

0 Nidhi Rao1 over 4 years ago in reply to Nidhi Rao1

Prodigy 220 points

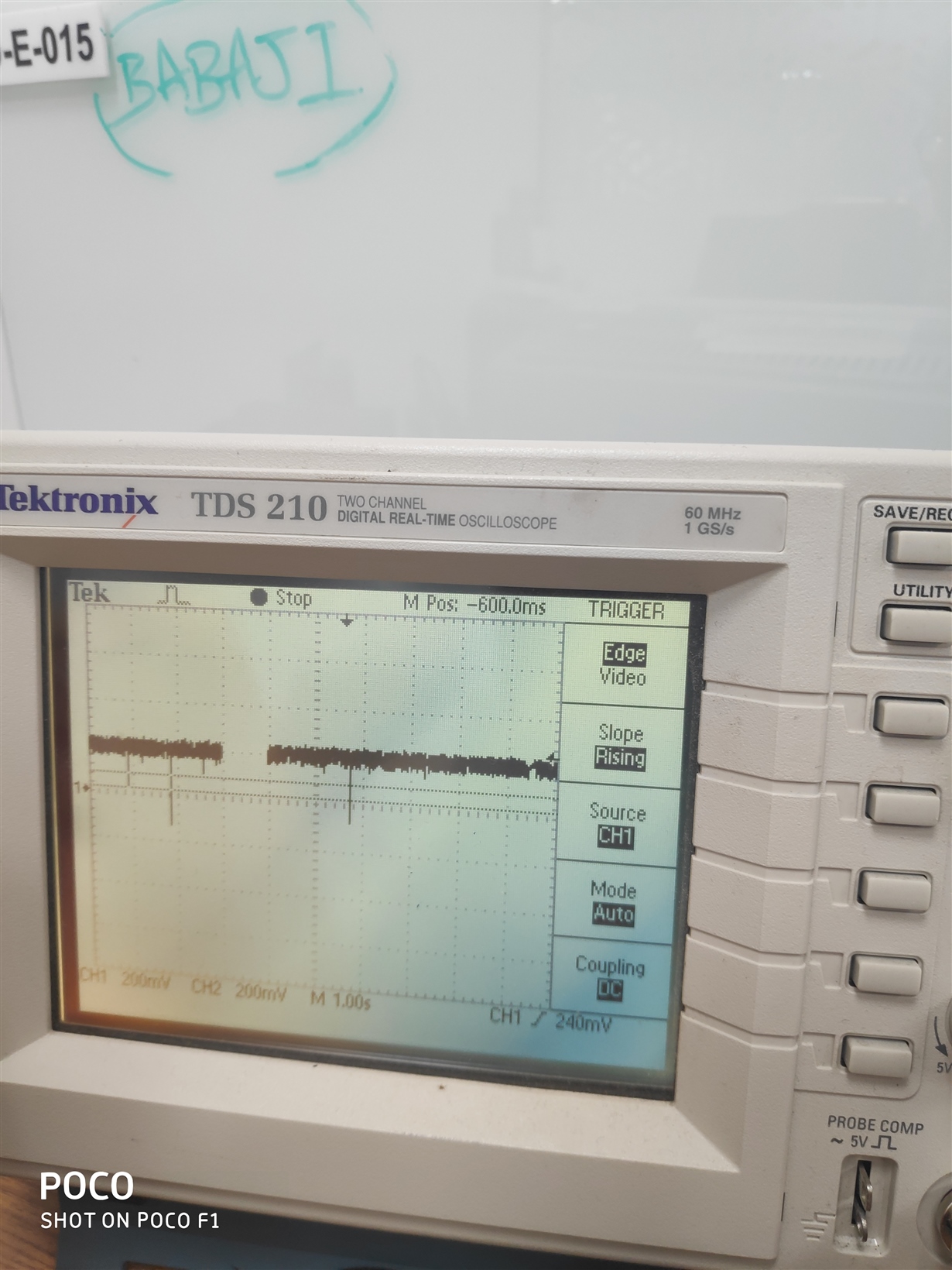

SW( on top)

Output(below)

0 Minqiu Xie over 4 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
Please check your Vin. And below is a link showing how to debug the boost converter. Please catch the wavefrom like it.
e2e.ti.com/.../tips-in-debugging-a-boost-converter

0 Nidhi Rao1 over 4 years ago in reply to Minqiu Xie

Prodigy 220 points

0 Nidhi Rao1 over 4 years ago in reply to Nidhi Rao1

Prodigy 220 points

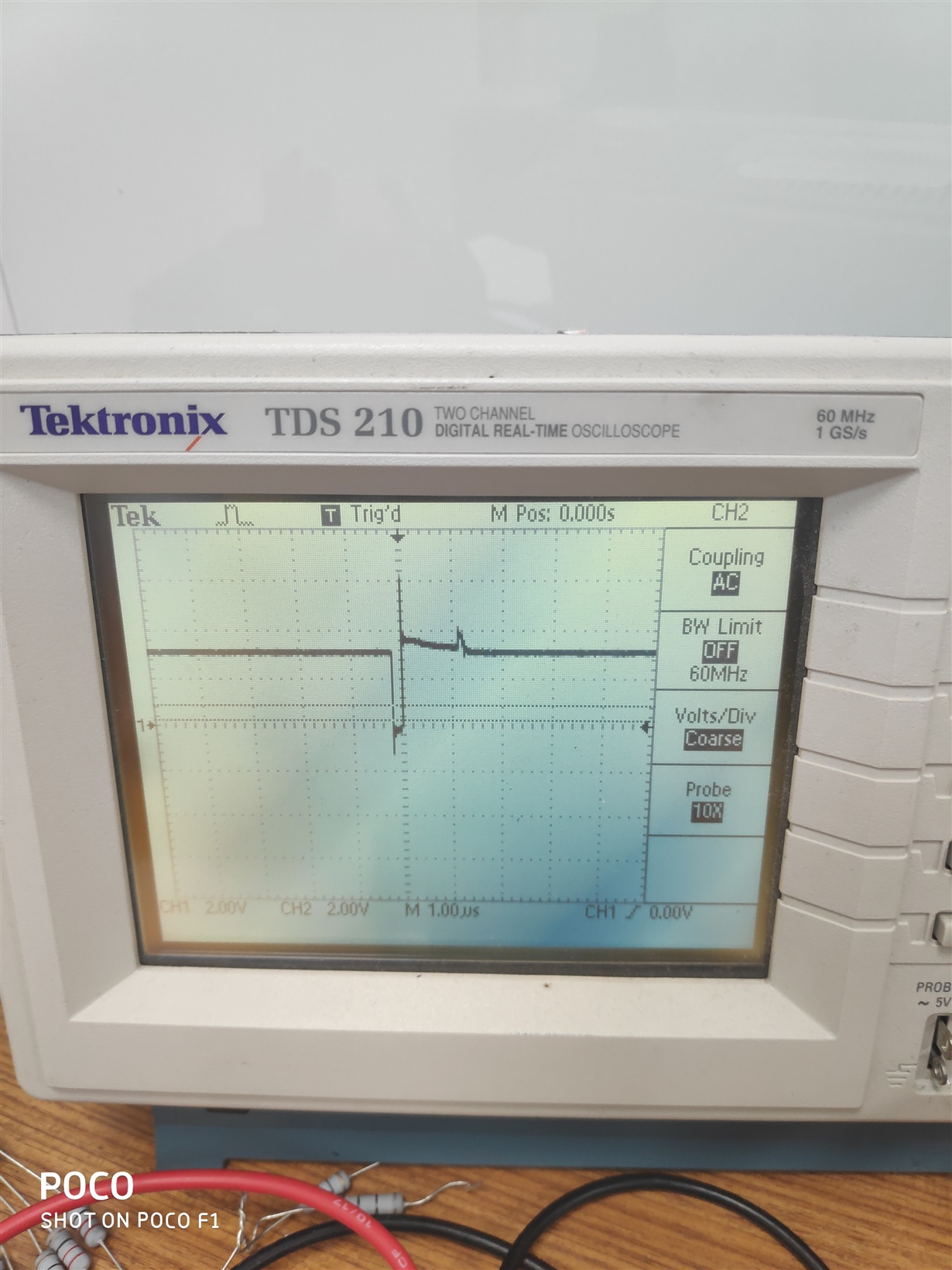

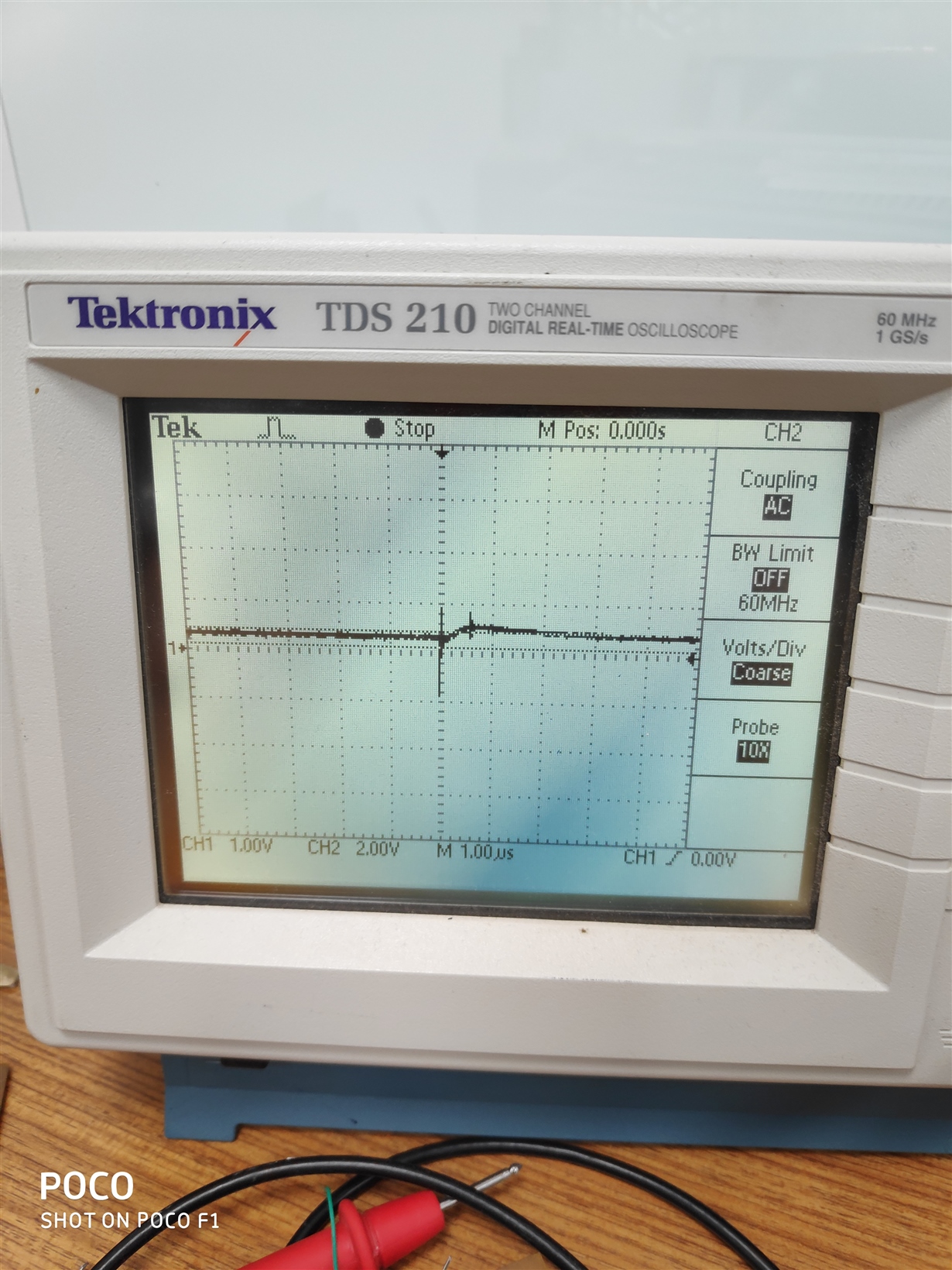

First is no load followed by circuit

0 Nidhi Rao1 over 4 years ago in reply to Nidhi Rao1

Prodigy 220 points

Input and out put caps are 47uF. I dont have the snubber circuit in place.

0 Minqiu Xie over 4 years ago in reply to Nidhi Rao1

TI__Mastermind 21565 points

Hi Nidhi:
I thought it's may not effective for online support. Could you contact the field team？
I still didn't see the Vin waveform with or without the load now. Please ensure the Vin is keep in recommended range.
