Hi Team

1:Tps61170-q1 PWM(pulse width modulation) control to adjust the output accuracy and the use of PWM signal programmable FB voltage precision, which way the voltage precision is higher? Thank you very much!

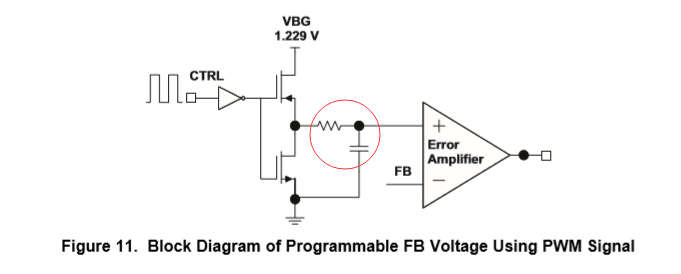

2:Tps61170-q1 as shown in the figure, what is the parameter of RC? Thank you very much!

over 4 years ago

0 Helen chen over 4 years ago

TI__Mastermind 40080 points

Dear Sir,
1. Use the default 1.229V reference will get the most accurate voltage.
2. The internal RC time constant is around 1ms.

0 user6041007 over 4 years ago in reply to Helen chen

Prodigy 180 points

Hi Helen
There are two voltage adjustment method for TPS61170, one is PWM duty cycle control of CTRL pin, another is easy scale program;
what is the internal realization diagram for easy scale method? What about the accuracy of these two method?

Many thanks!

0 Helen chen over 4 years ago in reply to user6041007

TI__Mastermind 40080 points

Hi Ranen,
The PWM duty cycle can be set at any duty. While the easy scale program only have 32 steps. So it depend on your needs.

0 user6041007 over 4 years ago in reply to Helen chen

Prodigy 180 points

Hellen,
I am not confused about the resolution, but the reference accuracy.
For PWM duty cycle adjustment, the accuracy is affected by PWM frequency, duty accuracy, 1.229V accuracy and RC filter.
and I do not know the easy scale internal diagram, so do not know which parameter affect the reference accuracy when using easy scale.

0 Helen chen over 4 years ago in reply to user6041007

TI__Mastermind 40080 points

Hi Ranen,
The easy scale mode has better accuracy. It is of +-2.5% accuracy for each step voltage..
