TPS54233: TPS54233 WEBENCH design

Red Yen

Expert 4310 points

Part Number: TPS54233

Hi Support team

TPS54233 would NOT use WEBENCH design both in IE & Chrome browser, may i have your take a look

BTW, may i have your help to calculate the bode plot and provides the chart as following two conditions,

input 12-18V

output 3.3V

Current 1A

condition 1

condition 2

over 4 years ago

0 Shawn Nie over 4 years ago

TI__Genius 10070 points

Hi,

Please go into the product folder first, and then use the Webench, it will work.

Shawn

0 Red Yen over 4 years ago in reply to Shawn Nie

TI__Expert 4310 points

Hi

are you able to simulate as above conditions?
Webench would NOT running at above conditions even it's EVM value

0 Shawn Nie over 4 years ago in reply to Red Yen

TI__Genius 10070 points

Hi,

We have discussed on the phone, is there any additional question?

Shawn

0 Bhushan Waghmare over 4 years ago in reply to Shawn Nie

TI__Expert 3320 points

Hi Red,
We are able to create the designs for TPS54233. Could you please try creating them from product page ? Let me know if this helps.
Product Page: www.ti.com/.../TPS54233

In mean time I have created the designs on Webench for the input conditions shared. Please find them below.

Input: Vin= 12-18, Vout=3.3 Iout=1
webench.ti.com/.../SDP.cgi

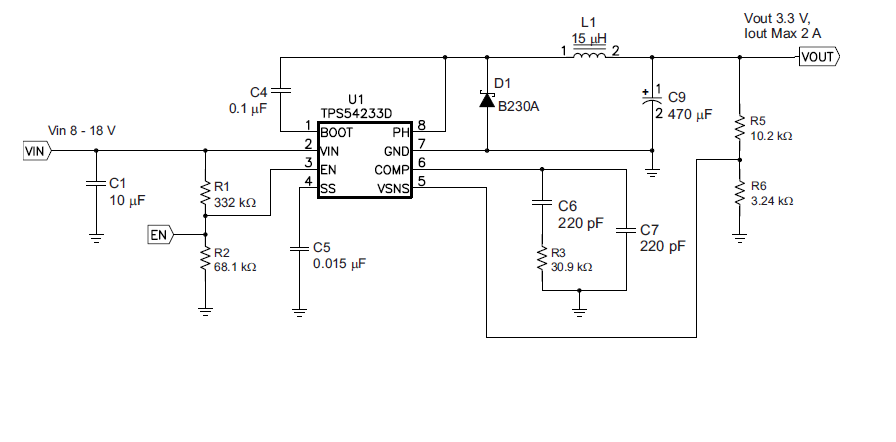

Input: Vin= 8-18, Vout=3.3 Iout=2
webench.ti.com/.../SDP.cgi

Regards,
Bhushan

0 Bhushan Waghmare over 4 years ago in reply to Bhushan Waghmare

TI__Expert 3320 points

Hi Red,
We did not heard from you in long time. Assuming above solution has resolved your issue, we are closing this post. Please open a new post if you have any further queries.

Best Regards,

Bhushan
