BQ40Z50-R2: XDSG and XCHG set without any protection triggered

uday kumar reddy

Part Number: BQ40Z50-R2

Hi,

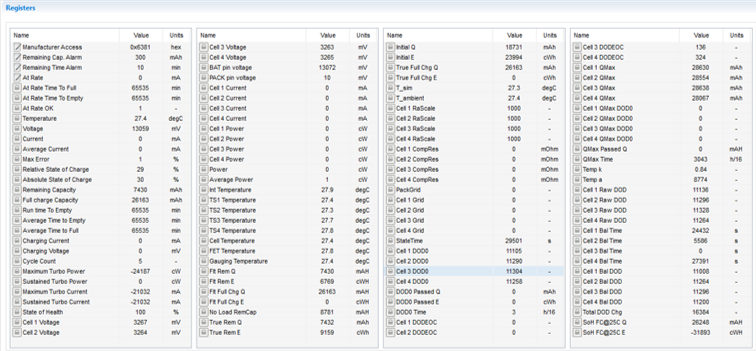

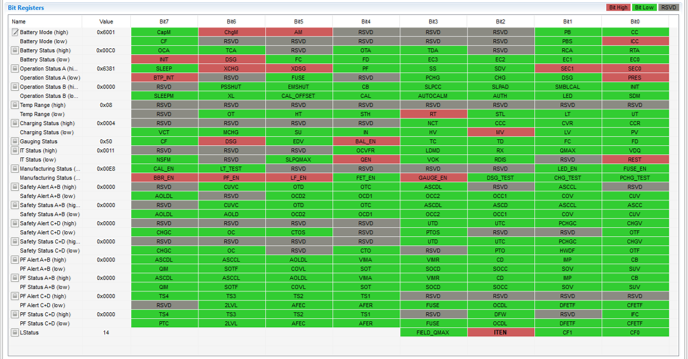

In one of our field return battery pack XDSG and XCHG flags has been set and no other protections were triggered, Attached the screen shot of the registers showing.

What would be the conditions other than Permanent fail case to disable the charging and discharging, I am attaching gg file of the battery pack.

Tgg file.csvhanks& Regards

over 6 years ago

0 Batt over 6 years ago

TI__Mastermind 42535 points

Hi Uday,

Please reupload your images. If you have a secondary level protector trip, or FUSE trip, that can disable the chg and dsg FETs.

0 uday kumar reddy over 6 years ago in reply to Batt

Intellectual 580 points

Hi Batt,

Sorry for the late reply.

We are not using FUSE protection.

6014.gg file.csv

0 Batt over 6 years ago in reply to uday kumar reddy

TI__Mastermind 42535 points

Uday,

You don't have to use the fuse protection. However, if the fuse pin trips, you can end up with disabled FETs. So, please attach the fuse pin to GND.
