My customer use LM5034 for flyback application. And there has a issue in it.(Schematic is showing below.)
PMOS1(Q11) & PMOS2(Q12) (temperature increase when no load)

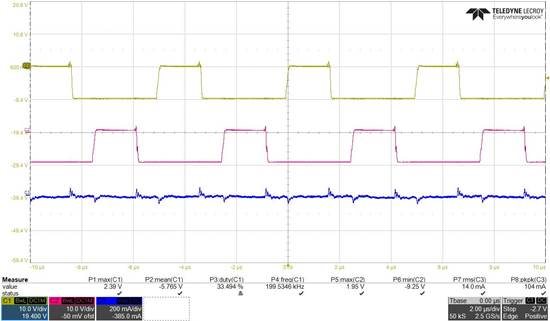

yellow:Q11 red:Q12 blue:load current
yellow:Q11 red:Q1/Q2 blue:load current
The LM5034 is not a flyback controller. It is an interleaved active clamp forward type of controller.We have no reference material available for this part in a flyback application.
We are glad that we were able to resolve this issue, and will now proceed to close this thread.
If you have further questions related to this thread, you may click "Ask a related question" below. The newly created question will be automatically linked to this question.
In reply to John Griffin1:
I'm not familiar with flyback and interleaved active clamp forward topology.
As attached schematic, I think customer using interleaved active clamp forward topology and it occurred the issue that I described.
Do you have any idea why the condition occurred? or we could test the which node waveform could verify the issue? Thank you.
In reply to Roy Chou1:
Sorry about the delay in respondingThe schematic shows a flyback designIcan tell this because there is no output inductor and because of the out of phase relationship between the primary and secondary.
The LM5034 is a forward controller and so the relationship between the main FET timing and the auxiliary FET timing will be only valid for a forward design..It is not designed for use in a flyback circuit.
