UCD3138: fusion digital power studio - vout cal offset pmbus command

Jack Tan80

Part Number: UCD3138

Hi Amiel,

Thanks for your strong support for providing a new version GUI while taking E2&E3 command.

Currently I was encoutered another error situation while implement vout calibration offset(0x23) command, please see below error messages. Can you please help share your comments here?

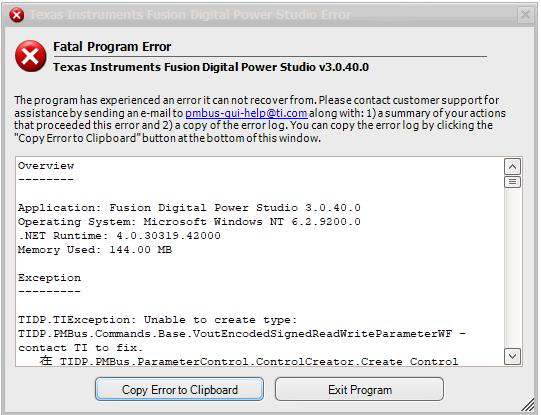

Overview
--------

Application: Fusion Digital Power Studio 3.0.40.0
Operating System: Microsoft Windows NT 6.2.9200.0
.NET Runtime: 4.0.30319.42000
Memory Used: 143.00 MB

Exception
---------

TIDP.TIException: Unable to create type: TIDP.PMBus.Commands.Base.VoutEncodedSignedReadWriteParameterWF - contact TI to fix.
在 TIDP.PMBus.ParameterControl.ControlCreator.Create_Control[TCProps](IParameterControl`1 parent_control)
在 TIDP.PMBus.ParameterControl.ReadOnlyParameterControl`5.b()
在 TIDP.PMBus.ParameterControl.ReadOnlyParameterControl`5.Construct(CommandID command_id, PMBusDevice device, Nullable`1 mode)
在 TIDP.PMBus.ParameterControl.ReadOnlyParameterControl`5..ctor(CommandID command_id, PMBusDevice device, Nullable`1 mode)
在 TIDP.PMBus.ParameterControls.VOUT_CAL_OFFSET..ctor(PMBusDevice device, Nullable`1 mode)
在 TIDP.PMBus.ParameterControls.ParameterControlCreator.Create_Control(CommandID command_id, PMBusDevice device, Nullable`1 mode)
在 TIDP.PMBus.Controls.ParameterGridControl.a(ParameterBase A_0, ControlMode A_1)
在 TIDP.PMBus.Controls.ParameterGridControl.b(b A_0)
在 TIDP.PMBus.Controls.ParameterGridControl.c()
在 TIDP.PMBus.Controls.ParameterGridControl.b(Boolean A_0)
在 TIDP.PMBus.Controls.ParameterGridControl.b(Object A_0, EventArgs A_1)
在 System.Windows.Forms.Timer.OnTick(EventArgs e)
在 System.Windows.Forms.Timer.TimerNativeWindow.WndProc(Message& m)
在 System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)

Loaded Assemblies
-----------------

DevExpress.Data.v6.2
Version: 6.2.10.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.Data.v6.2.DLL
Public Key Token: 79868B8147B5EAE4
DevExpress.Utils.v6.2
Version: 6.2.10.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.Utils.v6.2.DLL
Public Key Token: 79868B8147B5EAE4
DevExpress.XtraBars.v6.2
Version: 6.2.10.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraBars.v6.2.DLL
Public Key Token: 79868B8147B5EAE4
DevExpress.XtraEditors.v6.2
Version: 6.2.10.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraEditors.v6.2.DLL
Public Key Token: 79868B8147B5EAE4
DevExpress.XtraGrid.v6.2
Version: 6.2.10.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraGrid.v6.2.DLL
Public Key Token: 79868B8147B5EAE4
DevExpress.XtraNavBar.v6.2
Version: 6.2.10.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.XtraNavBar.v6.2.DLL
Public Key Token: 79868B8147B5EAE4
DundasWinChart
Version: 7.1.0.1810
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DundasWinChart.DLL
Public Key Token: A4C03DCE5DB22406
Free.CommandLine
Version: 3.0.8.30690
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.CommandLine.DLL
Public Key Token:
Free.Hid
Version: 3.0.8.27724
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.Hid.DLL
Public Key Token:
Free.Misc
Version: 3.0.8.30690
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.Misc.DLL
Public Key Token:
Free.WinForms.Misc
Version: 2.0.88.26527
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Free.WinForms.Misc.DLL
Public Key Token:
Fusion Digital Power Studio
Version: 3.0.40.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/Fusion Digital Power Studio.exe
Public Key Token:
Microsoft.GeneratedCode
Version: 1.0.0.0
Info Version:
<empty>
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
Public Key Token:
Microsoft.mshtml
Version: 7.0.3300.0
Info Version:
<empty>
Location: file:///C:/Windows/assembly/GAC/Microsoft.mshtml/7.0.3300.0__b03f5f7f11d50a3a/Microsoft.mshtml.dll
Public Key Token: B03F5F7F11D50A3A
mscorlib
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.NET/Framework64/v4.0.30319/mscorlib.dll
Public Key Token: B77A5C561934E089
mscorlib.resources
Version: 4.0.0.0
Info Version:
<empty>
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/mscorlib.resources/v4.0_4.0.0.0_zh-Hans_b77a5c561934e089/mscorlib.resources.dll
Public Key Token: B77A5C561934E089
System
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll
Public Key Token: B77A5C561934E089
System.Configuration
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll
Public Key Token: B03F5F7F11D50A3A
System.Core
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll
Public Key Token: B77A5C561934E089
System.Data
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_64/System.Data/v4.0_4.0.0.0__b77a5c561934e089/System.Data.dll
Public Key Token: B77A5C561934E089
System.Drawing
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll
Public Key Token: B03F5F7F11D50A3A
System.Numerics
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Numerics/v4.0_4.0.0.0__b77a5c561934e089/System.Numerics.dll
Public Key Token: B77A5C561934E089
System.resources
Version: 4.0.0.0
Info Version:
<empty>
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.resources/v4.0_4.0.0.0_zh-Hans_b77a5c561934e089/System.resources.dll
Public Key Token: B77A5C561934E089
System.Windows.Forms
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll
Public Key Token: B77A5C561934E089
System.Windows.Forms.resources
Version: 4.0.0.0
Info Version:
<empty>
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms.resources/v4.0_4.0.0.0_zh-Hans_b77a5c561934e089/System.Windows.Forms.resources.dll
Public Key Token: B77A5C561934E089
System.Xml
Version: 4.0.0.0
Info Version:
4.8.3752.0
Location: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
Public Key Token: B77A5C561934E089
TIDP.DevEx.Skin1
Version: 1.0.0.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.DevEx.Skin1.DLL
Public Key Token: 95FC6C5621878F0A
TIDP.Misc
Version: 3.0.8.27636
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.Misc.DLL
Public Key Token:
TIDP.Net.ProxyPrefs
Version: 1.4.0.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.Net.ProxyPrefs.DLL
Public Key Token:
TIDP.PMBus
Version: 3.0.8.28796
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.PMBus.DLL
Public Key Token:
TIDP.PMBus.DeviceGUI.UCD3000
Version: 1.9.63.28805
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.PMBus.DeviceGUI.UCD3000.DLL
Public Key Token:
TIDP.PMBus.WinForms
Version: 2.0.88.28804
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.PMBus.WinForms.DLL
Public Key Token:
TIDP.SAA
Version: 3.0.8.27726
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.SAA.DLL
Public Key Token:
TIDP.SAA.WinForms.Misc
Version: 2.0.88.27726
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.SAA.WinForms.Misc.DLL
Public Key Token:
TIDP.WinForms.Apps.DPGUI
Version: 1.9.63.28805
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Apps.DPGUI.DLL
Public Key Token:
TIDP.WinForms.Apps.DPGUI.DPGUI1
Version: 1.9.63.28807
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Apps.DPGUI.DPGUI1.DLL
Public Key Token:
TIDP.WinForms.Apps.DPGUI.HelpCenter
Version: 1.9.63.27640
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Apps.DPGUI.HelpCenter.DLL
Public Key Token:
TIDP.WinForms.Misc
Version: 2.0.88.27639
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Misc.DLL
Public Key Token:
TIDP.WinForms.Util
Version: 3.0.8.27637
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/TIDP.WinForms.Util.DLL
Public Key Token:
XtraDataTempAssembly
Version: 0.0.0.0
Info Version:
<empty>
Location: file:///C:/Program Files (x86)/Texas Instruments/Fusion Digital Power Studio/bin/DevExpress.Data.v6.2.dll
Public Key Token:

over 4 years ago

0 Cormac Harrington over 4 years ago

TI__Intellectual 1245 points

Hi jack

I hope you are well.

Amiel is on vacation today, I will assign this post to him and he will get back to you as soon as possible

Best regards

Cormac

0 Cormac Harrington over 4 years ago in reply to Cormac Harrington

TI__Intellectual 1245 points

hi again Jack

He is actually on vacation until next week, he is returning on the 25th November.

So unfortunately you will need to wait until then for a response.

Best regards

Cormac

0 Ian Bower over 4 years ago in reply to Cormac Harrington

TI__Genius 17090 points

Jack, I got the same results. I notice that there is already a variable for vout_cal_offset which is in RAM, and is saved in dflash. I see two short term options:

1. Just use the memory debugger to read and write to it

2. If you want to duplicate the command function, just use a different command code that the GUI doesn't use. Or you could use the same command code, but just don't set the bit that tells the GUI about it. Then use the SMBus debug tool to send and receive the data. I bet you can figure out how not to set the bit in the command array, but if not, I can help you.

3. Note that the variable is probably not defined correctly. It's a Uint32, and you probably want an int32 so that you can go negative. The PMBus definition calls for a signed number. Perhaps this is why the exception occurs in the GUI.

0 Jack Tan80 over 4 years ago in reply to Ian Bower

Mastermind 7090 points

Hi Ian and Cormac,

I'm pretty good, and hope everything goes well with you.

Hi Ian,

1. and 2. I think your suggestion could be work arround solution for the testing purpose, since the calibration is done in factory, and R&D guyes just make sure the calibration feature works correctly. Writing this post is to remind your guyes if this is a bug in GUI, and fix it if it is.

3. This is a good point, I think VOUT_CAL_OFFSET should be int16 instead of int32 according to pmbus spec. This might be the reason cause GUI crash, since I set the offset as positive value in my code, the sign bit is always 0.

0 Ian Bower over 4 years ago in reply to Jack Tan80

TI__Genius 17090 points

Jack, you could probably even use an int8, because your offset will probably be small. An Int32 is the native size for the ARM7 core, so if you've got room, I'd recommend it always. It gives you the most instructions, and the longest offset size in the structure. So there's a chance that the code will be smaller and faster by just a little bit.
