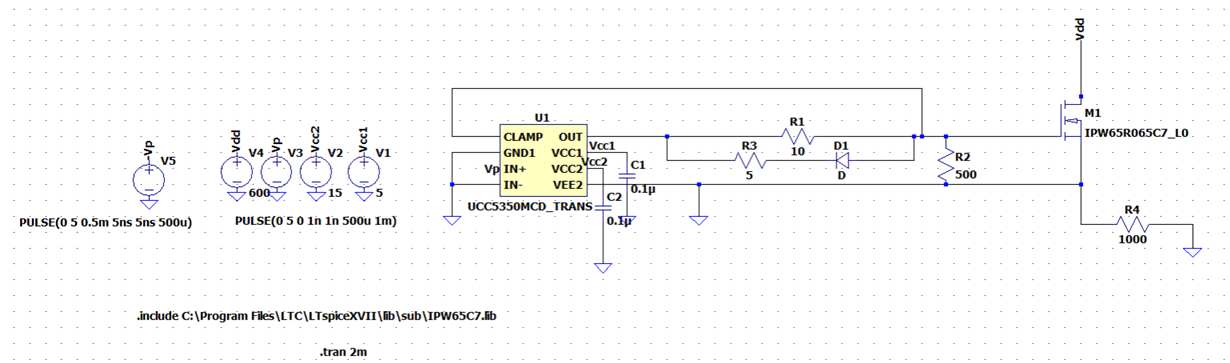

I am trying to used UCC5350M for driving a MOSFET. The LTspice simulation circuit is attached herewith. There is lot of ringing on the Gate terminal of MOSFET and the simulation is getting stuck after sometime. Can you please help!Gtae drive_UCC5350M_MOSFET_Highside.rar
My colleague is out this week. When he gets back next week, he will look into this issue with you.
Gate Driver Applications
Dallas, TX USA
We have an excellent training series that can help answer all your questions about our gate drivers. It is indexed so you can jump right to the section you want! You can find it here. A second series focused 100% on Isolated Gate drivers may be found here.
We also provide models for our gate drivers to accelerate your time to market. You can find them in the Product Folders under the "Design and development" tab:
We are glad that we were able to resolve this issue, and will now proceed to close this thread.
If you have further questions related to this thread, you may click "Ask a related question" below. The newly created question will be automatically linked to this question.
In reply to Don Dapkus:
Could you share the screenshot of your circuit? I cannot seem to open your file.
Thankyou so much for your help
In reply to Suryavalli U:
I do not have issue simulating a similar circuit.
I would also recommend using PSpice or TINA-TI, as LTSpice is not fully supporting for our models.
There are resources for importing unencrypted PSpice models to TINA-TI here if you do not have PSpice simulator. Please take a look and try it out!
In reply to Audrey Dearien7:
Thank you so much for your support.
Sorry for troubling you, but the problem is when driving a high side switch. Also, the IC you used does not have a clamp pin
Can you please help me with driving a high side switch.
When using the model in TINA-TI, I see that the model will simulate properly even with the floating node. As LTSpice is not fully supported, I would recommend you to import the model using the Macro Wizard to simulate your circuitry. The TINA software is available for free here.
