BQ25505: bq25505 pspice query

joohyun kim

Prodigy 50 points

Part Number: BQ25505
Other Parts Discussed in Thread: BQ25504

helllo,

I have a few question about pspice model of bq25505.

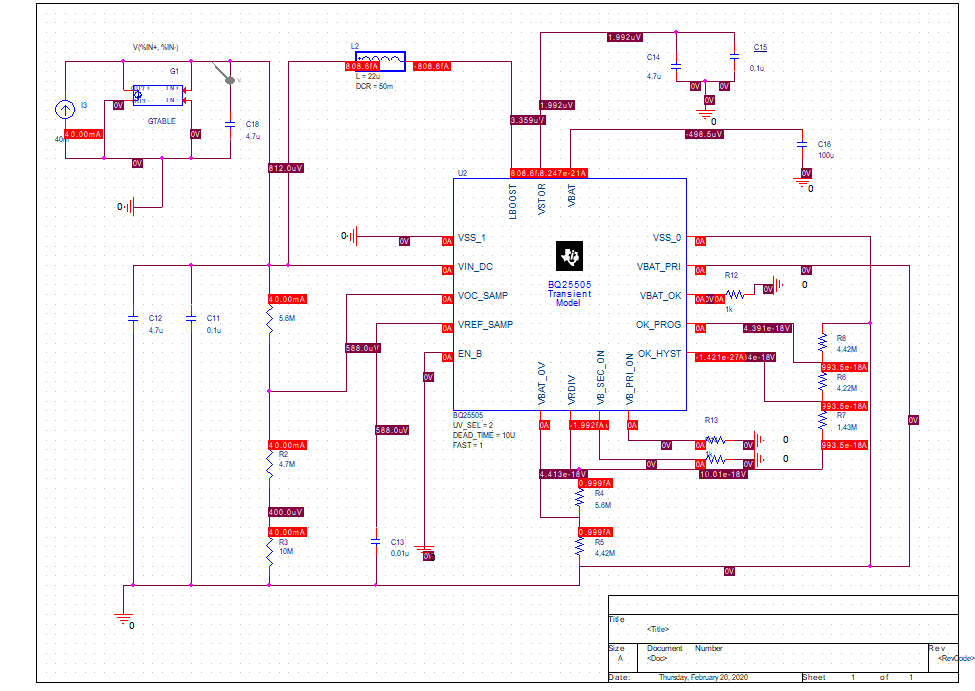

I download the bq25505 file and make schematic with BQ25505 Transient Model and run it.

But when I try to simulate it, the graph shows 0.8mV on solar cell.

I think the bq2205 didn't work in its original operation.

Could you help me why It didn't work?

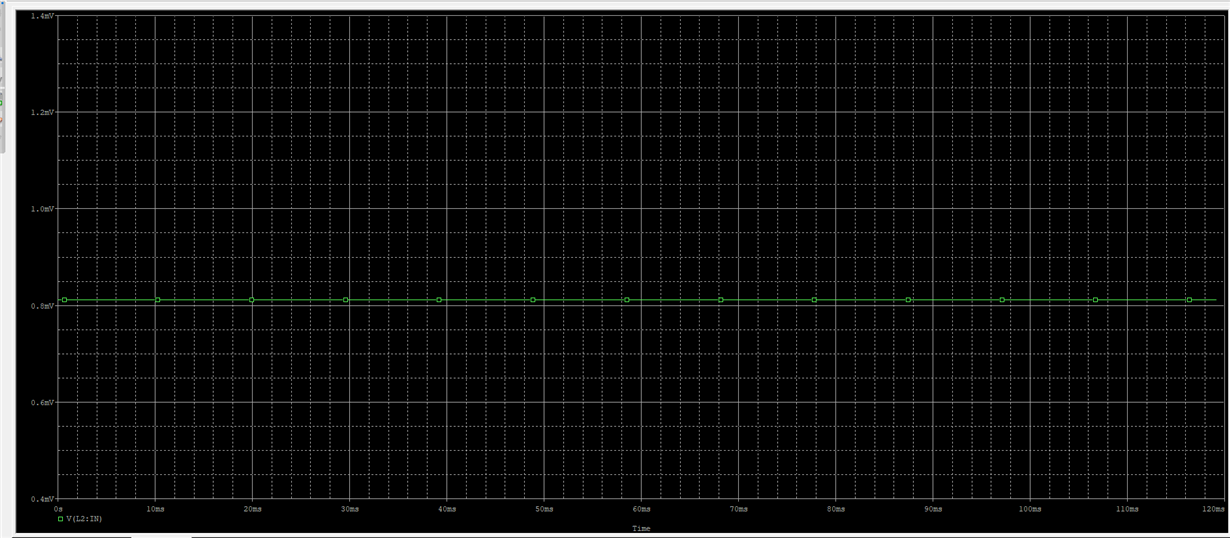

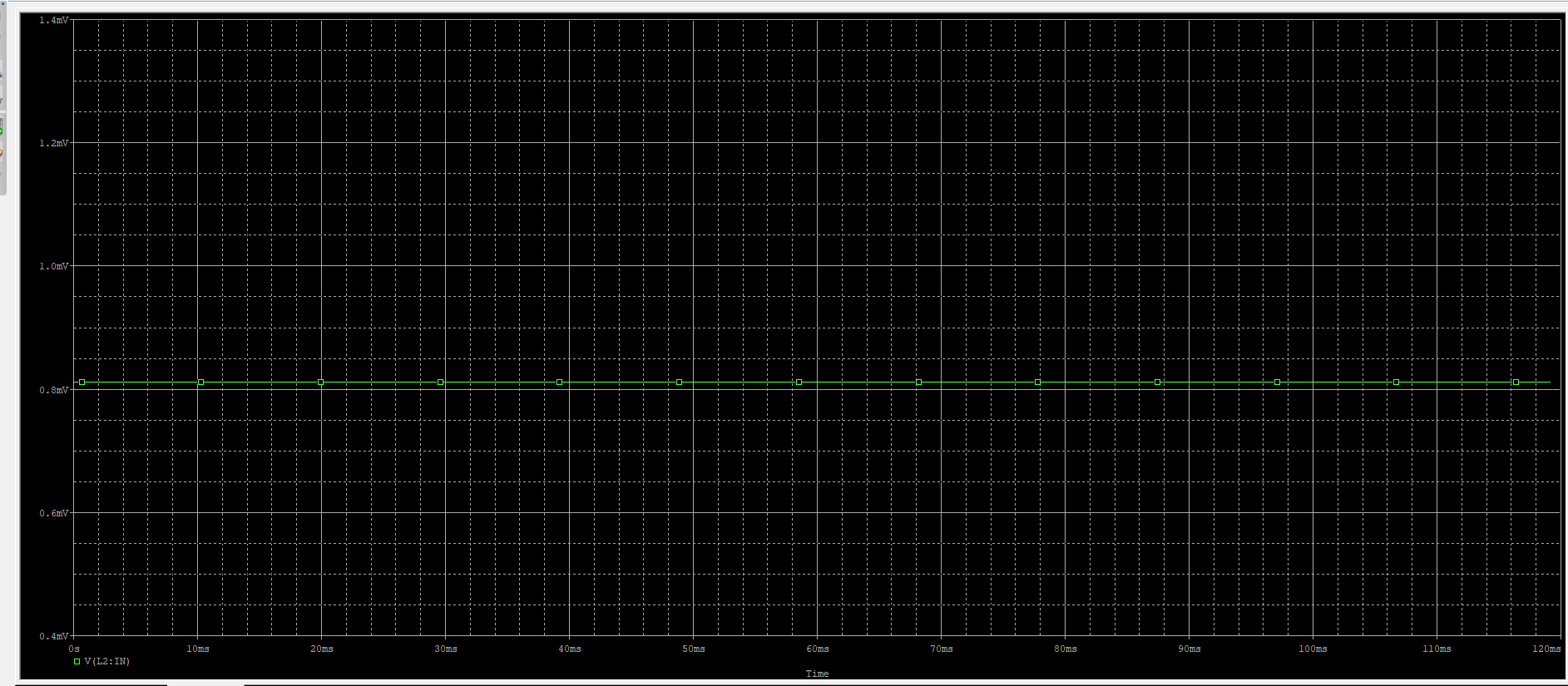

I upload entire schema simulation figure

over 4 years ago

0 joohyun kim over 4 years ago

Prodigy 50 points

In addition, the table value of GTABLE is (-1,0) (0.4,0) (1.54, 1.5m) (2.2,40m).

0 Jeff F over 4 years ago in reply to joohyun kim

TI__Guru*** 143950 points

Hi Joohyun,

Unfortunately, the transient model is very simplified and no longer supported.

Regards,

Jeff

0 joohyun kim over 4 years ago in reply to Jeff F

Prodigy 50 points

Then how can I do simulation about bq25505 or bq25504 transient graph in pspice?

0 joohyun kim over 4 years ago in reply to joohyun kim

Prodigy 50 points

Also, could you tell me what actual function bq25505 transient model did not support?

0 Jeff F over 4 years ago in reply to joohyun kim

TI__Guru*** 143950 points

Hi Joohyun,

I apologize but I do not know for certain. The group that supported this model no longer exists at TI. Measured bench test results are always better than simulation.

Regards,

Jeff
