LM53601-Q1: Current Protection Mechanism

Wilson Guo11

Part Number: LM53601-Q1

Hi Expert,

Could you please help share more details about the current protect mode?

I want to know the exactly current limit of the Peak and Valley. And after how many circle, the IC will enter Hiccup Mode?

Will be appreciated if you could share more detail about this Current Protect Mechanism

Best regards,

Wilson

over 4 years ago

0 Wilson Guo11 over 4 years ago

TI__Prodigy 570 points

Attach the description in DS. Hope to get more details. Thanks!

0 Marshall_Beck over 4 years ago in reply to Wilson Guo11

TI__Mastermind 29070 points

Hello, this will take some investigation on my part. Please allow me to get back to you.

0 Wilson Guo11 over 4 years ago in reply to Marshall_Beck

TI__Prodigy 570 points

Hi Marshall, any update?

Wilson

0 Marshall_Beck over 4 years ago in reply to Wilson Guo11

TI__Mastermind 29070 points

It takes approximately 64 cycles for device to go into hiccup mode. Minimal temperature rise in device (and inductor, if properly selected) will occur.

0 Wilson Guo11 over 4 years ago in reply to Marshall_Beck

TI__Prodigy 570 points

Hi Marshall,

How about my first question? The limit of PEAK current and Valley current, as show in our DS?

Wilson

0 Frank De Stasi over 4 years ago in reply to Wilson Guo11

TI__Guru 57555 points

Are you asking about what the garuanteed specs are for current limits ??

If so, the limits are found in the EC table IL_hs and IL_ls

0 Wilson Guo11 over 4 years ago in reply to Frank De Stasi

TI__Prodigy 570 points

Hi Frank,

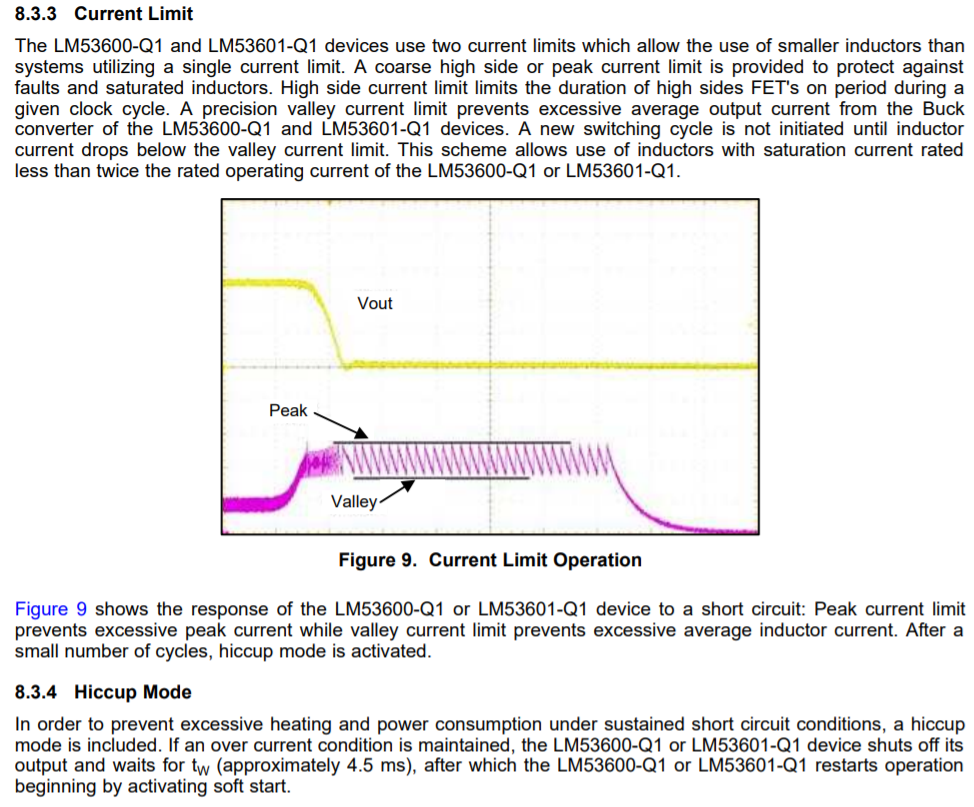

I mean the current limit of Peak and Valley current as shown in below waveform. Thanks!

0 Frank De Stasi over 4 years ago in reply to Wilson Guo11

TI__Guru 57555 points

Yes; those are the ones that are guaranteed in the EC table.
