BQ76952: SCD_DLY question of BQ76952

Sophia Yao

Part Number: BQ76952

Hi team,

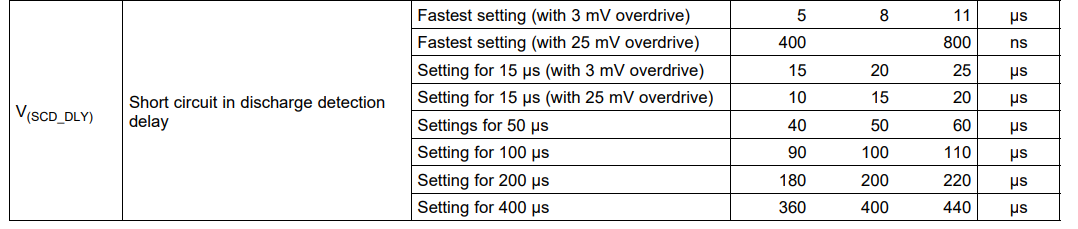

Nice to meet you by email. When I look through datasheet of BQ76952, SCD_DLY can be set to Fastest setting with different overdrive. So my questions are what does "overdrive" refer to and how this "overdrive" effect SCD_DLY? Looking forward to your reply.

over 3 years ago

0 Matt Sunna over 3 years ago

TI__Guru* 77283 points

Hi Sophia,

This overdrive refers to the voltage across SRN-SRP. If this is only 3mV, the comparator delay is longer (~8us), vs if 25mV the comparator is faster (~600ns).

Best regards,

Matt

0 Sophia Yao over 3 years ago in reply to Matt Sunna

TI__Prodigy 701 points

Hi Matt,

Got it! By the way, if I set SCD_DLY=1, does that mean fastest setting? And under fastest setting, does comparator response time of SCD depend on overdrive value cross SRN-SRP?(higher overdrive, faster the response speed)

thanks and best regards,

Sophia

0 Matt Sunna over 3 years ago in reply to Sophia Yao

TI__Guru* 77283 points

Hi Sophia,

Yes, this is correct. Setting SCD Delay to '1' is the fastest setting, SCD Delay of '2' is 15us.

The fastest setting also depends on the voltage across SRN-SRP.

Regards,

Matt

0 Sophia Yao over 3 years ago in reply to Matt Sunna

TI__Prodigy 701 points

Hi Matt,

Now I got clear.

Thanks and best regards,

Sophia
