TPS4H160-Q1: EMI issue for TPS4H160-Q1

Songzhen Guo

Intellectual 2770 points

Part Number: TPS4H160-Q1

Hi expert,

TPS4H160-Q1 has an EMI issue. Could you comment on that and give us an advice? Thanks

Here are the action customer did：

total board IR test is Fail;
check the load of TPS4H160-Q1, the output current is fixed, output current is 1A;
Isolate TPS4H160-Q1(No power supply), IR test passed.

Here are the IR test result for TPS4H160-Q1：

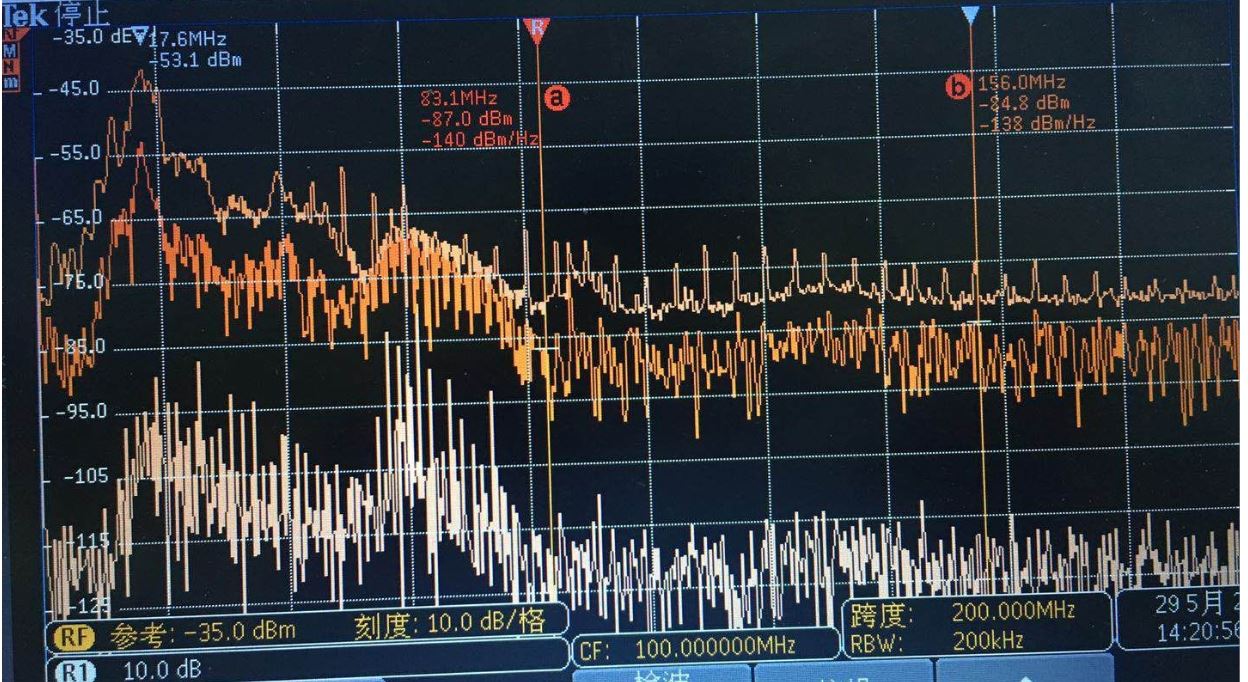

Use spectrum analyzer to test, the output current is fixed (1A). The middle one is the result for IR:

No output current for TPS4H160

1A output current --- IR test result

Songzhen Guo

over 3 years ago

0 Kalin Burnside over 3 years ago

TI__Genius 13260 points

Hello Songzhen,

Could you please share the schematic around the TPS4H160? What capacitors are being used from Vs to IC_GND, Vs to GND and Vout to GND? Are any ferrite beads being used?

Regards,

Kalin Burnside

0 Songzhen Guo over 3 years ago in reply to Kalin Burnside

TI__Intellectual 2770 points

Hi Kalin,

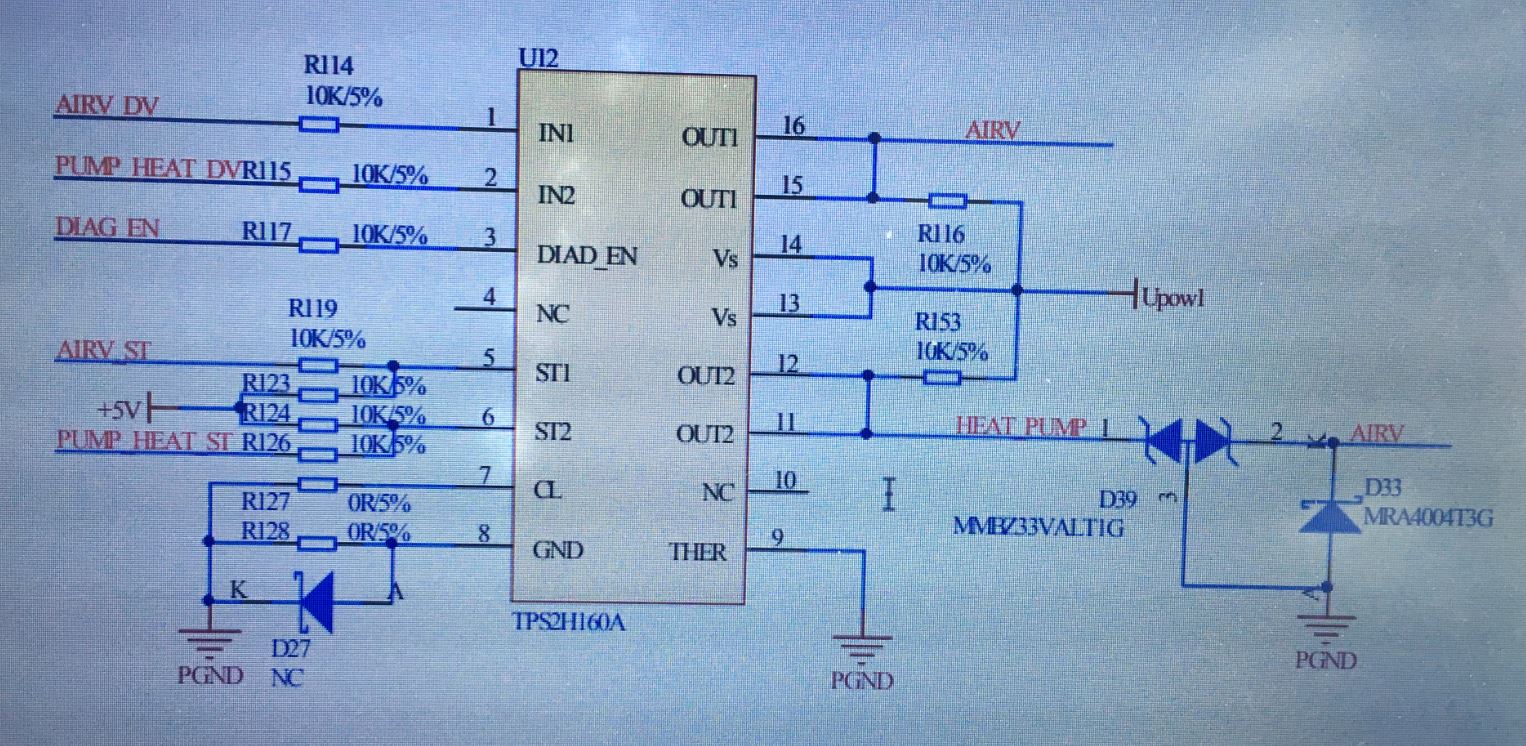

Thanks for your feedback.Sorry for the mistake. The right part number is TPS2H160.Here is the schematic:

Regards

Songzhen Guo

0 Kalin Burnside over 3 years ago in reply to Songzhen Guo

TI__Genius 13260 points

Hello Songzhen,

I would recommend that you use by-pass capacitors from Vs to IC_GND. The most important capacitor to add is Vs to IC_GND 100 nF, 50V, 0603 X7R. Though for better noise reduction you could also add capacitors from Vout to IC_GND & PCBGND, and Vs to PCBGND. Placing a 10 nF capacitor in parallel with the 100 nF capacitor from Vs to IC_GND will also help. The closer these capacitors are to the pin of the device the better.

Regards,

Kalin Burnside
