TPS1H200A-Q1: How OUT PIN follow the IN pin?

James Zhan

Part Number: TPS1H200A-Q1

Hi team,

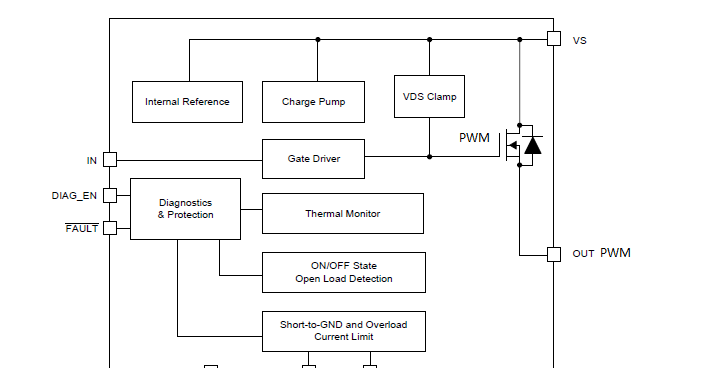

In the datasheet of TPS1H200A show the internal block diagram as below, but I am wondering how the OUT pin follow the IN pin with the internal MOSFET's source side connected to OUT pin.

How to achieve the same direction of OUT and IN?

Thanks.

over 3 years ago

0 Anthony P Pham over 3 years ago

TI__Mastermind 22150 points

Hi James,

Once the channel on the FET is formed, current can flow from drain to source (VS to OUT) or from source to drain (OUT to VS which is a reverse current case), As long as the design of the device is according to the datasheet, the OUT pin will follow the IN pin with the following switching characteristics.

0 James Zhan over 3 years ago in reply to Anthony P Pham

TI__Expert 4365 points

Hi Anthony,

Thanks for the detail information.

I am still wondering how the N-FET work inside the IC, since the block diagram is just a simplified diagram.

Could you help to provide more details about this ?

Thanks.

0 Anthony P Pham over 3 years ago in reply to James Zhan

TI__Mastermind 22150 points

Hi James,

The IN pin controls the GATE of the FET as a gate driver and the OUT is the SOURCE of the FET. When the IN pin enables the FET, the OUT becomes connected to VS (the supply voltage) which is located at the FET's drain.
