TPS61023: PFM entry

Shinji Tsuji

Genius 12348 points

Part Number: TPS61023

Hi team,

Could you advise if my design operate at PFM mode or not.

Vin=1.8V to 3.3V

Vout=4.5V

Iout = 150mA to 800mA

I could not find how to calculate the PFM threshold, so if it is possible to calculate or simulate, please let me know.

I would like to avoid it to move to audible band.

regards,

over 3 years ago

0 Zack Liu over 3 years ago

TI__Mastermind 34201 points

Hi Shinji,

When Vin =3.3V, Vout = 4.5V, Iout is less than 400mA, it would enter into PFM.

You can use Pspice for TI to simulate or use TPS61023 calculation tool to see when the devices is not working at CCM.

0 Shinji Tsuji over 3 years ago in reply to Zack Liu

TI__Genius 12348 points

Hi Zack,

Does Pspice for TI model support PFM simulation?

I run steady state model and changed the output load to 30ohm, but the simulation failed.

Could you check if the model works OK?

regards,

0 Zack Liu over 3 years ago in reply to Shinji Tsuji

TI__Mastermind 34201 points

Hi Shinji,

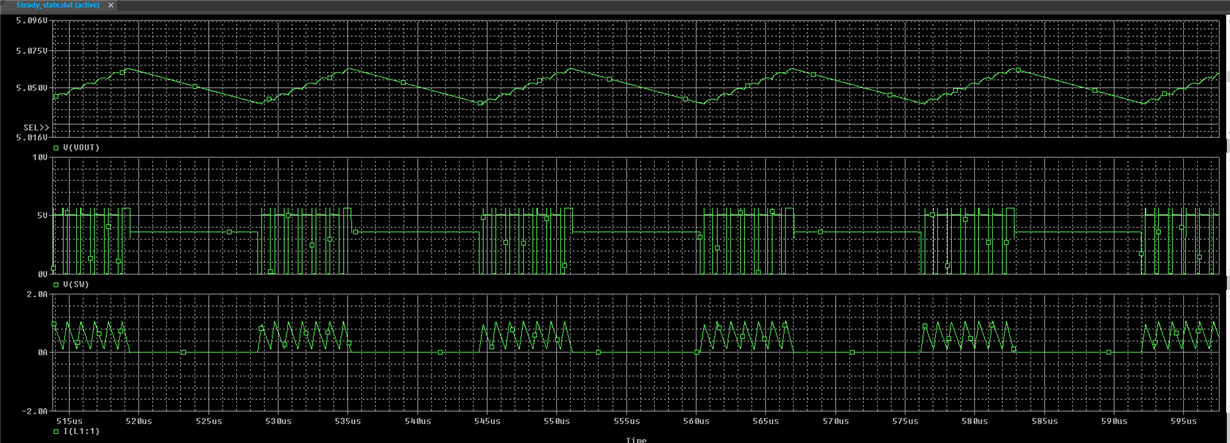

Below is the simulation waveform that I ran just now. The Rload is set to 30ohm. The Pspice project file is downloaded from ti.com. Please use steady-state page for simulation.

0 Shinji Tsuji over 3 years ago in reply to Zack Liu

TI__Genius 12348 points

Hi Zack,

Thank you I could successfully complete the simulation.

regards,
