BQ28Z610-R1: BQ28Z610-R1 or alternative to measure 2S pack

diogofu

Part Number: BQ28Z610-R1
Other Parts Discussed in Thread: BQ34Z100, BQ78Z100, BQ28Z610

Hi,

I'm looking for a fuel gauge for my system to act similar to what bq27541-G2 does for 1S battery packs, is BQ28Z610-R1 the best option?

I'm not sure I will use the protection features/balancing, so I was looking for a simpler implementation.

Thanks in advance!

over 3 years ago

0 Wyatt Keller over 3 years ago

TI__Guru** 102415 points

Hello,

The bq28z610-r1 or bq78z100 would be the best option, if you want to have only gauging the bq34z100 is what we can recommend, but using the bq28z610 will give you more flexibility if you want to use cell balancing or protections.

Sincerely,

Wyatt Keller

0 diogofu over 3 years ago in reply to Wyatt Keller

Prodigy 80 points

Hmm, ok, I think we will go with bq28z610 then, is there any application note of using it for gauging purposes only?

and a recommended circuit/layout?

Thanks a lot!

0 Wyatt Keller over 3 years ago in reply to diogofu

TI__Guru** 102415 points

Hello,

You can leave any output pins floating (CHG, DSG) and disable all the protections in the data memory.

Sincerely,

Wyatt Keller

0 diogofu over 3 years ago in reply to Wyatt Keller

Prodigy 80 points

Hi,

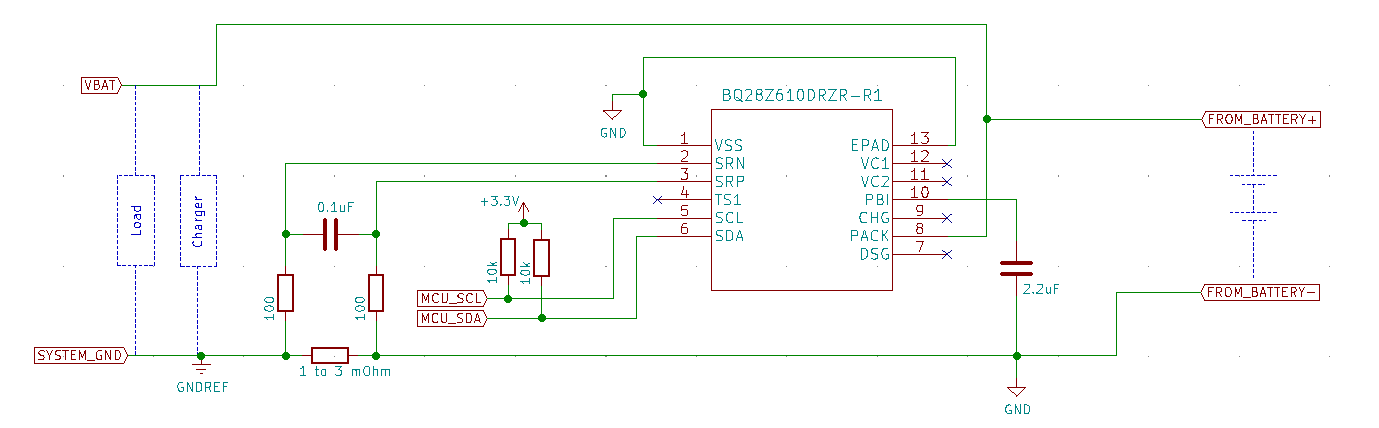

so, something like this would work? Should I add any decoupling capacitors or ground any unused pin?

We would be using this in a system, not pack configuration.

0 diogofu over 3 years ago in reply to diogofu

Prodigy 80 points

not sure if the image went through, trying again

0 Wyatt Keller over 3 years ago in reply to diogofu

TI__Guru** 102415 points

Hello,

You will still need to connect the cells to VC1 and VC2 even without cell balancing. Check the EVM user guide for connection examples.

Sincerely,

Wyatt Keller

0 Nick Brylski over 3 years ago in reply to diogofu

TI__Mastermind 19195 points

Hi diogofu,

You can follow the evm schematic:

Best regards,

0 diogofu over 3 years ago in reply to Wyatt Keller

Prodigy 80 points

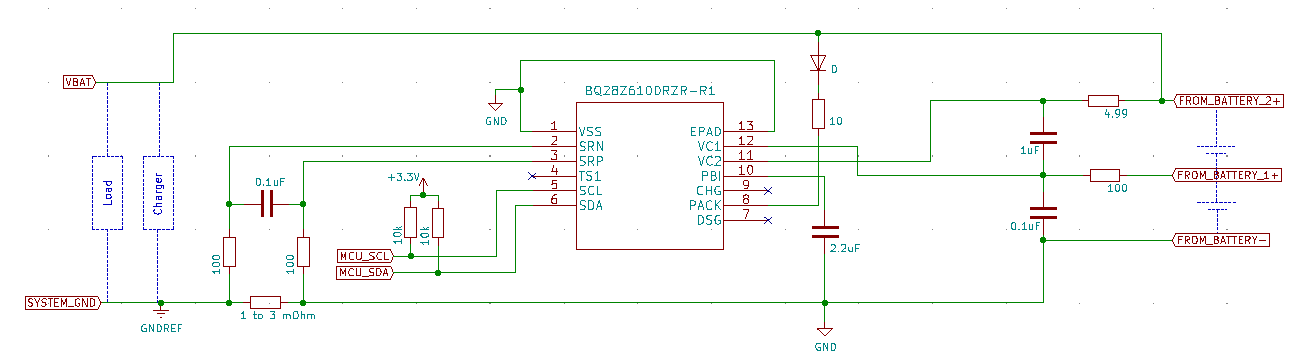

Ok, is this correct? I just want to make sure I'm not missing anything or leaving unnecessary components in this circuit. I'm not sure about what D1 and R11 are there for, and R14, R16, C9 and C10 as well (labels from the evm schematic).
