According this E2E answered: https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1038437/dra821u-how-to-skip-eeprom-checking-when-in-spl-booting-stage-if-customer-pcb-has-no-eerpom
Customer still put the EEPROM on their PCB to prevent if real needs it.
Now, they are stuck on the EEPROM read during uboot stage.
Do we have quick patch to skip this?
BR Rio
Hi Rio
Following as console output log
U-Boot SPL 2021.01-g53e79d0e89 (Aug 07 2021 - 08:12:48 +0000) Model: Texas Instruments K3 J7200 SoC EEPROM not available at 0x50, trying to read at 0x51 Reading on-board EEPROM at 0x51 failed -1 Board: J721EX-PM1-SOM rev E2 SYSFW ABI: 3.1 (firmware rev 0x0015 '21.5.0--v2021.05 (Terrific Llam') EEPROM not available at 0x50, trying to read at 0x51 Reading on-board EEPROM at 0x51 failed -1 Trying to boot from MMC2 Starting ATF on ARM64 core... NOTICE: BL31: v2.5(release):08.00.00.004-dirty NOTICE: BL31: Built : 07:25:50, Aug 7 2021 U-Boot SPL 2021.01-g53e79d0e89 (Aug 07 2021 - 07:28:31 +0000) Model: Texas Instruments K3 J7200 SoC EEPROM not available at 0x50, trying to read at 0x51 Reading on-board EEPROM at 0x51 failed -1 Board: J721EX-PM1-SOM rev E2 SYSFW ABI: 3.1 (firmware rev 0x0015 '21.5.0--v2021.05 (Terrific Llam') EEPROM not available at 0x50, trying to read at 0x51 Reading on-board EEPROM at 0x51 failed -1 ERROR: Unhandled External Abort received on 0x80000000 from EL2 ERROR: exception reason=0 syndrome=0xbf000002 Unhandled Exception from EL2 x0 = 0x0000000081f00338 x1 = 0x0000000000000000 x2 = 0x0000000000000019 x3 = 0x0000000500000000 x4 = 0x0000000080090a0c x5 = 0x0000000000000000 x6 = 0x0000000000000008 x7 = 0x0000000000000002 x8 = 0x0000000081f004d0 x9 = 0x0000000000000008 x10 = 0x0000000000000004 x11 = 0x0000000000000002 x12 = 0x0000000081fffbec x13 = 0x00000000800c1510 x14 = 0x00000000800c1510 x15 = 0x0000000080080ae4 x16 = 0x00000000800a5ee0 x17 = 0x0000000000000000 x18 = 0x0000000081fffe80 x19 = 0x0000000080178ea8 x20 = 0x0000000000000000 x21 = 0x0000000081f00338 x22 = 0x00000000800c0000 x23 = 0x0000000000000000 x24 = 0x0000000000000000 x25 = 0x0000000000000000 x26 = 0x0000000000000000 x27 = 0x0000000000000000 x28 = 0x0000000000000000 x29 = 0x0000000081fffce0 x30 = 0x000000008009f794 scr_el3 = 0x000000000000073d sctlr_el3 = 0x0000000030cd183f cptr_el3 = 0x0000000000000000 tcr_el3 = 0x0000000080803520 daif = 0x00000000000002c0 mair_el3 = 0x00000000004404ff spsr_el3 = 0x00000000200003c9 elr_el3 = 0x000000008009f7f8 ttbr0_el3 = 0x0000000070010c00 esr_el3 = 0x00000000bf000002 far_el3 = 0x0000000000000000 spsr_el1 = 0x0000000000000000 elr_el1 = 0x0000000000000000 spsr_abt = 0x0000000000000000 spsr_und = 0x0000000000000000 spsr_irq = 0x0000000000000000 spsr_fiq = 0x0000000000000000 sctlr_el1 = 0x0000000030d00801 actlr_el1 = 0x0000000000000000 cpacr_el1 = 0x0000000000000000 csselr_el1 = 0x0000000000000000 sp_el1 = 0x0000000000000000 esr_el1 = 0x0000000000000000 ttbr0_el1 = 0x0000000000000000 ttbr1_el1 = 0x0000000000000000 mair_el1 = 0x0000000000000000 amair_el1 = 0x0000000000000000 tcr_el1 = 0x0000000000800080 tpidr_el1 = 0x0000000000000000 tpidr_el0 = 0x0000000000000000 tpidrro_el0 = 0x0000000000000000 par_el1 = 0x0000000000000000 mpidr_el1 = 0x0000000080000000 afsr0_el1 = 0x0000000000000000 afsr1_el1 = 0x0000000000000000 contextidr_el1 = 0x0000000000000000 vbar_el1 = 0x0000000000000000 cntp_ctl_el0 = 0x0000000000000000 cntp_cval_el0 = 0x0000000000000000 cntv_ctl_el0 = 0x0000000000000000 cntv_cval_el0 = 0x0000000000000000 cntkctl_el1 = 0x0000000000000000 sp_el0 = 0x000000007000a3d0 isr_el1 = 0x0000000000000000 dacr32_el2 = 0x0000000000000000 ifsr32_el2 = 0x0000000000000000 cpuectlr_el1 = 0x0000001b00000040 cpumerrsr_el1 = 0x0000000000000000 l2merrsr_el1 = 0x0000000000000000
Hi RIO
After Re-build the u-boot without this compile option: TI_I2C_BOARD_DETECT,
/opt/ti-processor-sdk-linux-j7200-evm-08_00_00_05/board-support/u-boot-2021.01+gitAUTOINC+53e79d0e89-g53e79d0e89/board/ti/j721e# gedit Kconfig
Following as console output log, it still hang in Unhandled Exception from EL2
U-Boot SPL 2021.01 (Nov 02 2021 - 10:47:37 +0800) EEPROM not available at 0x50, trying to read at 0x51 Reading on-board EEPROM at 0x51 failed -1 EEPROM not available at 0x50, trying to read at 0x51 Reading on-board EEPROM at 0x51 failed -1 Trying to boot from MMC2 NOTICE: BL31: v2.5(release):08.00.00.004-dirty NOTICE: BL31: Built : 07:25:50, Aug 7 2021 U-Boot SPL 2021.01 (Nov 24 2021 - 14:38:29 +0800) Model: Texas Instruments K3 J7200 SoC SYSFW ABI: 3.1 (firmware rev 0x0015 '21.5.0--v2021.05 (Terrific Llam') ERROR: Unhandled External Abort received on 0x80000000 from EL2 ERROR: exception reason=0 syndrome=0xbf000002 Unhandled Exception from EL2 x0 = 0x0000000081f00338 x1 = 0x0000000000000000 x2 = 0x0000000000000019 x3 = 0x0000000500000000 x4 = 0x0000000080090318 x5 = 0x0000000000000000 x6 = 0x0000000000000008 x7 = 0x0000000000000002 x8 = 0x0000000081f004d0 x9 = 0x0000000000000008 x10 = 0x0000000000000004 x11 = 0x0000000000000002 x12 = 0x0000000081fffbec x13 = 0x00000000800c08a8 x14 = 0x00000000800c08a8 x15 = 0x0000000080080b04 x16 = 0x00000000800a5418 x17 = 0x0000000000000000 x18 = 0x0000000081fffe80 x19 = 0x0000000080178ea8 x20 = 0x0000000000000000 x21 = 0x0000000081f00338 x22 = 0x00000000800bf000 x23 = 0x0000000000000000 x24 = 0x0000000000000000 x25 = 0x0000000000000000 x26 = 0x0000000000000000 x27 = 0x0000000000000000 x28 = 0x0000000000000000 x29 = 0x0000000081fffce0 x30 = 0x000000008009eccc scr_el3 = 0x000000000000073d sctlr_el3 = 0x0000000030cd183f cptr_el3 = 0x0000000000000000 tcr_el3 = 0x0000000080803520 daif = 0x00000000000002c0 mair_el3 = 0x00000000004404ff spsr_el3 = 0x00000000200003c9 elr_el3 = 0x000000008009ed30 ttbr0_el3 = 0x0000000070010c00 esr_el3 = 0x00000000bf000002 far_el3 = 0x0000000000000000 spsr_el1 = 0x0000000000000000 elr_el1 = 0x0000000000000000 spsr_abt = 0x0000000000000000 spsr_und = 0x0000000000000000 spsr_irq = 0x0000000000000000 spsr_fiq = 0x0000000000000000 sctlr_el1 = 0x0000000030d00801 actlr_el1 = 0x0000000000000000 cpacr_el1 = 0x0000000000000000 csselr_el1 = 0x0000000000000000 sp_el1 = 0x0000000000000000 esr_el1 = 0x0000000000000000 ttbr0_el1 = 0x0000000000000000 ttbr1_el1 = 0x0000000000000000 mair_el1 = 0x0000000000000000 amair_el1 = 0x0000000000000000 tcr_el1 = 0x0000000000800080 tpidr_el1 = 0x0000000000000000 tpidr_el0 = 0x0000000000000000 tpidrro_el0 = 0x0000000000000000 par_el1 = 0x0000000000000000 mpidr_el1 = 0x0000000080000000 afsr0_el1 = 0x0000000000000000 afsr1_el1 = 0x0000000000000000 contextidr_el1 = 0x0000000000000000 vbar_el1 = 0x0000000000000000 cntp_ctl_el0 = 0x0000000000000000 cntp_cval_el0 = 0x0000000000000000 cntv_ctl_el0 = 0x0000000000000000 cntv_cval_el0 = 0x0000000000000000 cntkctl_el1 = 0x0000000000000000 sp_el0 = 0x000000007000a3d0 isr_el1 = 0x0000000000000000 dacr32_el2 = 0x0000000000000000 ifsr32_el2 = 0x0000000000000000 cpuectlr_el1 = 0x0000001b00000040 cpumerrsr_el1 = 0x0000000000000000 l2merrsr_el1 = 0x0000000000000000
BR
JAY
Rio,
The cause of exception might be something else on the custom board. Can you attach a debugger and check which function is crashing?
Also is the DDR part the same as TI DRA821 board? How about mux related changes?
Are you using default U-Boot or you have made changes in U-Boot for custom board?
- Keerthy
Hi Keerthy

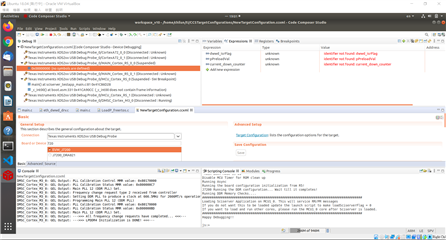

We process CCS boot mode with our custom board with prebuild image as following image.
1.Could you provide guide for attach a debugger with U-boot process.
2.DDR part the same as TI DRA821 board, DDR mux also same as J7200 EVM.
3. We are using default U-Boot for custom board
BR
Jay
Hi TI
We try to pull OSPI/HYPER_MUX_SEL high to low, then we can starting kernel, but still stuck, following as linux console log.
U-Boot SPL 2021.01-g53e79d0e89 (Aug 07 2021 - 08:12:48 +0000)
Model: Texas Instruments K3 J7200 SoC
EEPROM not available at 0x50, trying to read at 0x51
Reading on-board EEPROM at 0x51 failed -1
Board: J721EX-PM1-SOM rev E2
SYSFW ABI: 3.1 (firmware rev 0x0015 '21.5.0--v2021.05 (Terrific Llam')
EEPROM not available at 0x50, trying to read at 0x51
Reading on-board EEPROM at 0x51 failed -1
Trying to boot from MMC2
Starting ATF on ARM64 core...
NOTICE: BL31: v2.5(release):08.00.00.004-dirty
NOTICE: BL31: Built : 07:25:50, Aug 7 2021
U-Boot SPL 2021.01 (Nov 25 2021 - 16:31:43 +0800)
Model: Texas Instruments K3 J7200 SoC
EEPROM not available at 0x50, trying to read at 0x51
Reading on-board EEPROM at 0x51 failed -1
Board: J721EX-PM1-SOM rev E2
SYSFW ABI: 3.1 (firmware rev 0x0015 '21.5.0--v2021.05 (Terrific Llam')
EEPROM not available at 0x50, trying to read at 0x51
Reading on-board EEPROM at 0x51 failed -1
Trying to boot from MMC2
am654_sdhci sdhci@4fb0000: pinctrl_select_state_full: uclass_get_device_by_phandle_id: err=-19
U-Boot 2021.01 (Nov 25 2021 - 16:31:43 +0800)
SoC: J7200 SR1.0
Model: Texas Instruments K3 J7200 SoC
EEPROM not available at 0x50, trying to read at 0x51
Reading on-board EEPROM at 0x51 failed -1
Board: J721EX-PM1-SOM rev E2
DRAM: 4 GiB
Flash: 0 Bytes
MMC: sdhci@4f80000: 0, sdhci@4fb0000: 1
Loading Environment from MMC... *** Warning - bad CRC, using default environment
In: serial@2800000
Out: serial@2800000
Err: serial@2800000
EEPROM not available at 0x50, trying to read at 0x51
Reading on-board EEPROM at 0x51 failed -1
Net: Could not get PHY for ethernet@46000000: addr 0
am65_cpsw_nuss_slave ethernet@46000000: phy_connect() failed
No ethernet found.
Hit any key to stop autoboot: 0
i2c_write: error waiting for data ACK (status=0x116)
pca953x gpio@22: Error reading output register
switch to partitions #0, OK
mmc1 is current device
i2c_write: error waiting for data ACK (status=0x116)
pca953x gpio@22: Error reading output register
SD/MMC found on device 1
Failed to load 'boot.scr'
0 bytes read in 0 ms
Loaded env from uEnv.txt
Importing environment from mmc1 ...
19137024 bytes read in 214 ms (85.3 MiB/s)
45267 bytes read in 5 ms (8.6 MiB/s)
## Flattened Device Tree blob at 88000000
Booting using the fdt blob at 0x88000000
Loading Device Tree to 000000008fef1000, end 000000008fffffff ... OK
Starting kernel ...
