TMDSIDK437X: Optional 20-pin JTAG

Josh Wallace

Part Number: TMDSIDK437X

Hi experts,

It is stated in the User Guide of the IDK that the 20-pin CJTAG connector is optional. How may I ensure a part I would like to purchase will have this optional feature?

Is this CJTAG supported by XDS200.

Regards.

J.W.

over 7 years ago

0 Biser Gatchev-XID over 7 years ago

TI__Guru**** 393215 points

Hi,

The boards are delivered without the 20-pin JTAG connector. Yes, XDS200 is supported.

0 Josh Wallace over 7 years ago in reply to Biser Gatchev-XID

Prodigy 145 points

Thanks. Sorry to ask again...

1) Should I conclude that I won't be able to use XDS200 (without this optional connecter) but just the onboard xds100v2.

2) Or is there another possibility (connectors shipped with xds200 I should already own)?

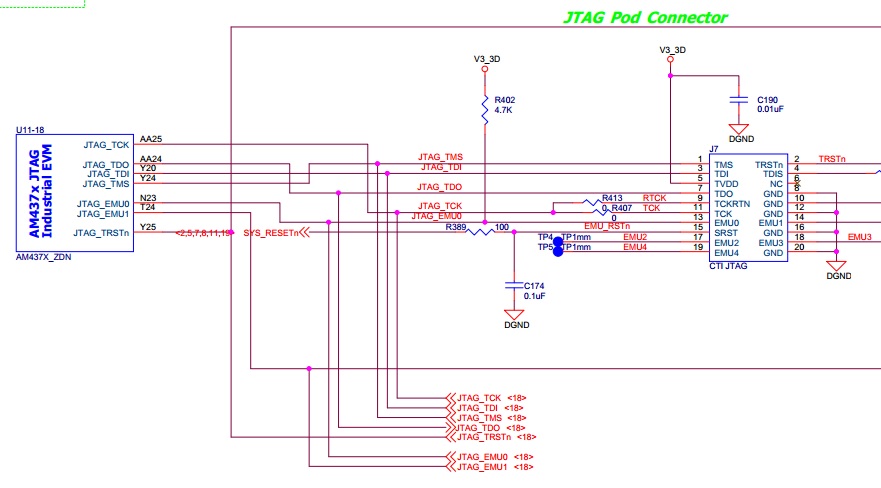

3) The board picture shows a 20-pin headers (see below). Is this the cJtag?

Regards.

0 Biser Gatchev-XID over 7 years ago in reply to Josh Wallace

TI__Guru**** 393215 points

1. Yes, this is correct.
2. I don't think target board connectors are shipped with the XDS200.
3. Yes, this is the JTAG, however this photo is only an illustration. The HW user guide (www.ti.com/.../spruii2.pdf) clearly states in section 2.6:

"The EVM also has an optional 20-pin, CJTAG connector, from TI, to support the Emulation. This CJTAG connector is not installed by default."

0 Josh Wallace over 7 years ago in reply to Biser Gatchev-XID

Prodigy 145 points

OK,
It is clear.
It is a great experience to have quick responses.
Thanks.
Have a great day.
