Linux/TDA2E: TDA2Ex (23mm) 1GiB(2*512MiB) DDR3 setting

Denny Zhuang

Part Number: TDA2E

Tool/software: Linux

Hi,

First,I want to know how to set the memory map in uboot(lisa map、...ect.) The highlight above is the information about my design.

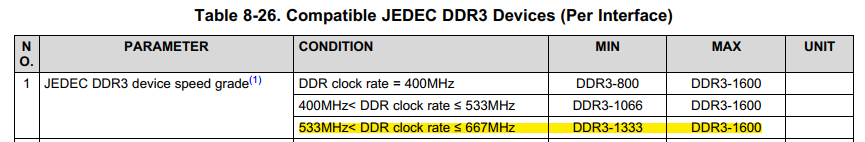

Second, according to the table down below,that means I can not use ddr3 -1866, right?

BR, Denny

over 5 years ago

0 Yordan Kamenov over 5 years ago

TI__Mastermind 42515 points

Hi Denny,

for the first question you can check this Application Note:
www.ti.com/.../spraca1.pdf

For the second question I can confirm that you can not use DDR at 1866. You can use memory from 1333 to 1600 MT/s if the frequency is between 533MHz and 667MHz(it is the max supported frequency on TDA2Ex).

Regards,
Yordan

0 Denny Zhuang over 5 years ago in reply to Yordan Kamenov

Intellectual 460 points

For the ddr3L 2*512MiB setting, is it right?
const struct dmm_lisa_map_regs TDA2Ex_ABC_DDR3L_666MHz_TI_EVM_revG3_dmm_regs = {
.dmm_lisa_map_0 = 0x00000000,
.dmm_lisa_map_1 = 0x00000000,
.dmm_lisa_map_2 = 0x80600100,
.dmm_lisa_map_3 = 0xFF020100,
.is_ma_present = 0x1
};

""For the second question I can confirm that you can not use DDR at 1866. You can use memory from 1333 to 1600 MT/s if the frequency is between 533MHz and 667MHz(it is the max supported frequency on TDA2Ex).""

You mean that I can use DDR-1866 and set the DDR frequency between 533MHz and 667MHz?

0 Yordan Kamenov over 5 years ago in reply to Denny Zhuang

TI__Mastermind 42515 points

Hi Denny,

you can not use DDR-1866 (you can use up to DDR-1600).

I will ping u-boot expert to help with dmm_lisa_map_regs struct.

Regards,
Yordan

0 Somnath Mukherjee over 5 years ago in reply to Yordan Kamenov

TI__Intellectual 2460 points

Hi Denny,
Can you please refer the EMIF configuration tool at www.ti.com/.../litabsmultiplefilelist.tsp ?
This tool will give you the LISA register settings.

Regards,
Somnath
