TDA2SX: Linux: OpenVX TIDL OD Usecase Modification

Part Number: TDA2SX
Other Parts Discussed in Thread: PGA460

Hi all,

I am using VSDK 0308 and trying to incorporate tidl_openvx into my custom usecase.

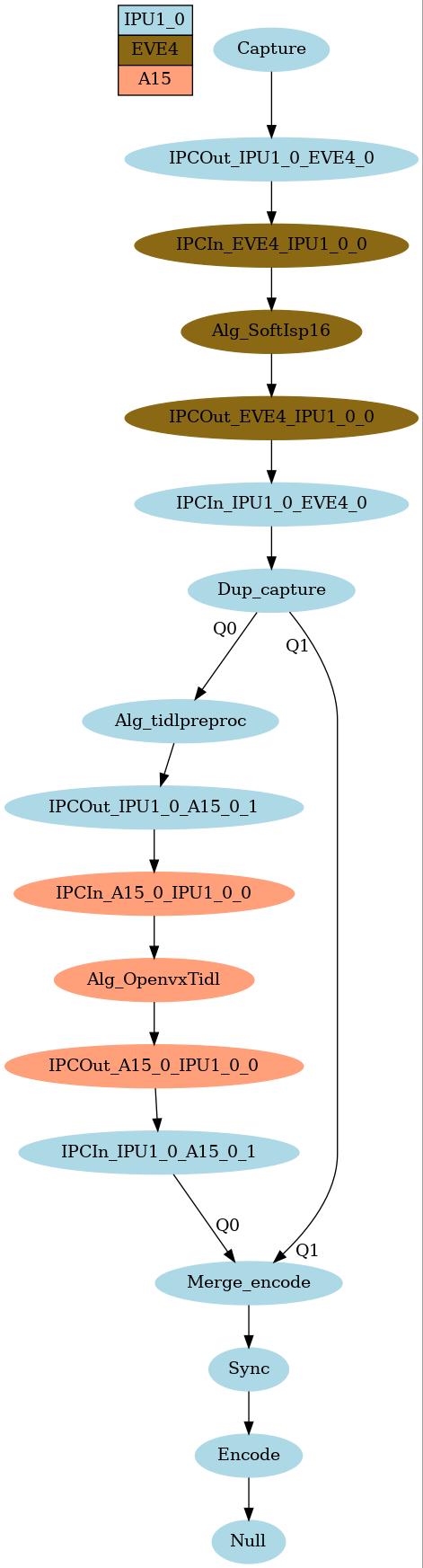

My usecase is as follows.  Alg_SoftIsp16 is a custom eve application that implements Bayer->RGB->UYVY->NV12 conversion and is tested as working in my system.



I am trying to figure out the most streamlined way of returning the data to NV12 after the TIDL link which I believe is adding additional OpenVX stages to run the color convert to pass the correctly formatted data to the Encoder but I am having a hard time deciphering how to make changes to the graph after the TIDL plugin has added the TIDL nodes within openvxTidl.c.  I have no prior experience with OpenVX or TIDL so this is definitely a learning experience.  Any guidance would be much appreciated!

Thanks,

Joe

  • Forgot to include my run log.  I also didn't mention that the TIDL node is completely unmodified.  I copied the params over directly from the chains_tidlOpenVx_OC.c though I'll be switching to the OD mode after I get this working.  Below is my params config.

        /* YUV420SP to planar RGB conversion */
        pUcObj->Alg_tidlpreprocPrm.outPad = 4;
        pUcObj->Alg_tidlpreprocPrm.numOutputQueues = 1;
        pUcObj->Alg_tidlpreprocPrm.procMode = TIDLPREPROC_LINK_PROCMODE_Y2R;

        /* OpenVx TIDl Params */
        pUcObj->Alg_OpenvxTidlPrm.eveCoreIndex = 1;
        pUcObj->Alg_OpenvxTidlPrm.operationMode = TIDL_OC;
    //    pUcObj->Alg_OpenvxTidlPrm.grpxSrcLinkID = pUcObj->GrpxSrcLinkID;
        pUcObj->Alg_OpenvxTidlPrm.grpxSrcLinkID = -1;
    //    pUcObj->Alg_OpenvxTidlPrm.nullSrcFramePeriodicity = pUcObj->NullSourcePrm.timerPeriodMilliSecs;
        pUcObj->Alg_OpenvxTidlPrm.nullSrcFramePeriodicity = -1;
        pUcObj->Alg_OpenvxTidlPrm.posX = 50;
        pUcObj->Alg_OpenvxTidlPrm.posY = INPUT_HEIGHT + 200;
        strncpy(pUcObj->Alg_OpenvxTidlPrm.tidl_params_file_path, "/home/root/tidl_param_imagenet_jacintonet11v2.bin", 256);
        strncpy(pUcObj->Alg_OpenvxTidlPrm.tidl_network_file_path, "/home/root/tidl_net_imagenet_jacintonet11v2.bin", 256);
