AWR1642: data format of captured ADC data using RadarStudio+TSW1400

Xinsi lin

Part Number: AWR1642

I used RADAR studio and TSW1400 to capture ADC raw data. the data is saved off to C:\ti\mmwave_dfp_00_07_00_04\rf_eval\radarstudio\PostProc\adc_data.bin. What is the format of the .bin file? I used 1 TX 4 RX and 16bit ADC. thanks! -Xinsi Lin

over 8 years ago

0 Vaibhav Mahimkar over 8 years ago

TI__Mastermind 23725 points

Hello Xinsi,

Please check AWR1xxx Data Path Programmer’s Guide for details about packaged data over LVDS lane.

Section 4.1.4.2 Format Mapping in that documents talks about AWR1642 data mapped to LVDS lanes.

Thank you,

Vaibhav

0 Vivek Dham over 8 years ago in reply to Vaibhav Mahimkar

TI__Guru 58035 points

Hello Xinsi Lin,
The bin file saved from HSDC pro would have the data in sequential order . If you are using 16 bit complex the order of data would be (for N samples per chirp):
RX1-I sample 0 , RX1 Q sample 0 , RX1 Isample1 , RX1 Qsample1 .....Rx1 I sampleN-1 , RX1 Q sample N-1

After 1 chirp data the second chirp data follows.

regards,
Vivek

0 Vivek Dham over 8 years ago in reply to Vivek Dham

TI__Guru 58035 points

Hello Xinsi Lin,
Did this clarify your query?

regards,
Vivek

0 Xinsi lin over 8 years ago in reply to Vivek Dham

Intellectual 530 points

Yes. Thank you!

0 Zhicheng Hu over 8 years ago in reply to Xinsi lin

Prodigy 200 points

Hello, Xinsi lin
What should i do to capture ADC raw data from AWR1642 by using MMWAVE-DEVPACK and TSW1400?
I have read RadarStudio_User's_Guide , but I still have no idea to do it.
Would you give me some information and idea.
Thank you!

0 Vivek Dham over 8 years ago in reply to Zhicheng Hu

TI__Guru 58035 points

Hello Xiamen,
You can refer to the following training material : training.ti.com/mmwave-sensor-raw-data-capture-using-tsw1400-board

regards,
Vivek

0 Zhicheng Hu over 8 years ago in reply to Vivek Dham

Prodigy 200 points

Thank you!

0 Zhicheng Hu over 8 years ago in reply to Vivek Dham

Prodigy 200 points

Hello Vivek Dham,

Following your advise, I refer to training.ti.com/mmwave-sensor-raw-data-capture-using-tsw1400-board. In Radar Studio(v1.7.4.0), mmwave-sensor-raw-data-capture-using-tsw1400-board suggest me to select the Application/User UART, Buad rate 115200.

But when I select Buad rate 115200, I can't connect SPI. The "SPI connect" button was stuck.

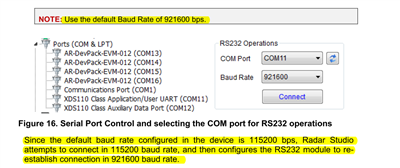

Then I refer to Radar_Studio_User's_Guide, it suggest me to set the Buad rate to 921600.

When I set the Buad rate to 921600, I can connect SPI successfully.

I'm confused. Because when I do the mmw demo and capture demo, the Buad rate of the Application/User UART is set to 115200.

Why do I connect the SPI successfully in the Radar Studio until I set the Application/User UART to 921600?

Thank you!

0 Vivek Dham over 8 years ago in reply to Zhicheng Hu

TI__Guru 58035 points

Hello Zhicheng,
The UART rate depends on the rate set by the application. The mmw demo application sets a 115200 baud rate while the radar studio application sets it to 921600 kbps.

regards,
Vivek

0 Zhicheng Hu over 8 years ago in reply to Vivek Dham

Prodigy 200 points

Thank you !

0 Omin Chou over 8 years ago in reply to Zhicheng Hu

Genius 3555 points

Hi Vevek,

I want to clarify more about data format topic.

When default RadarStudio configures 16 bit complex the order of data should be:

RX1-I sample 0 , RX1-Q sample 0 , RX1-I sample 1 , RX1-Q sample 1 .....Rx1-I sample N-1 , RX1-Q sample N-1 , RX2-I sample 0 , RX2-Q sample 0 ……

Questions:

1. The above data order is correct or not.

2. Is there any header between frames?

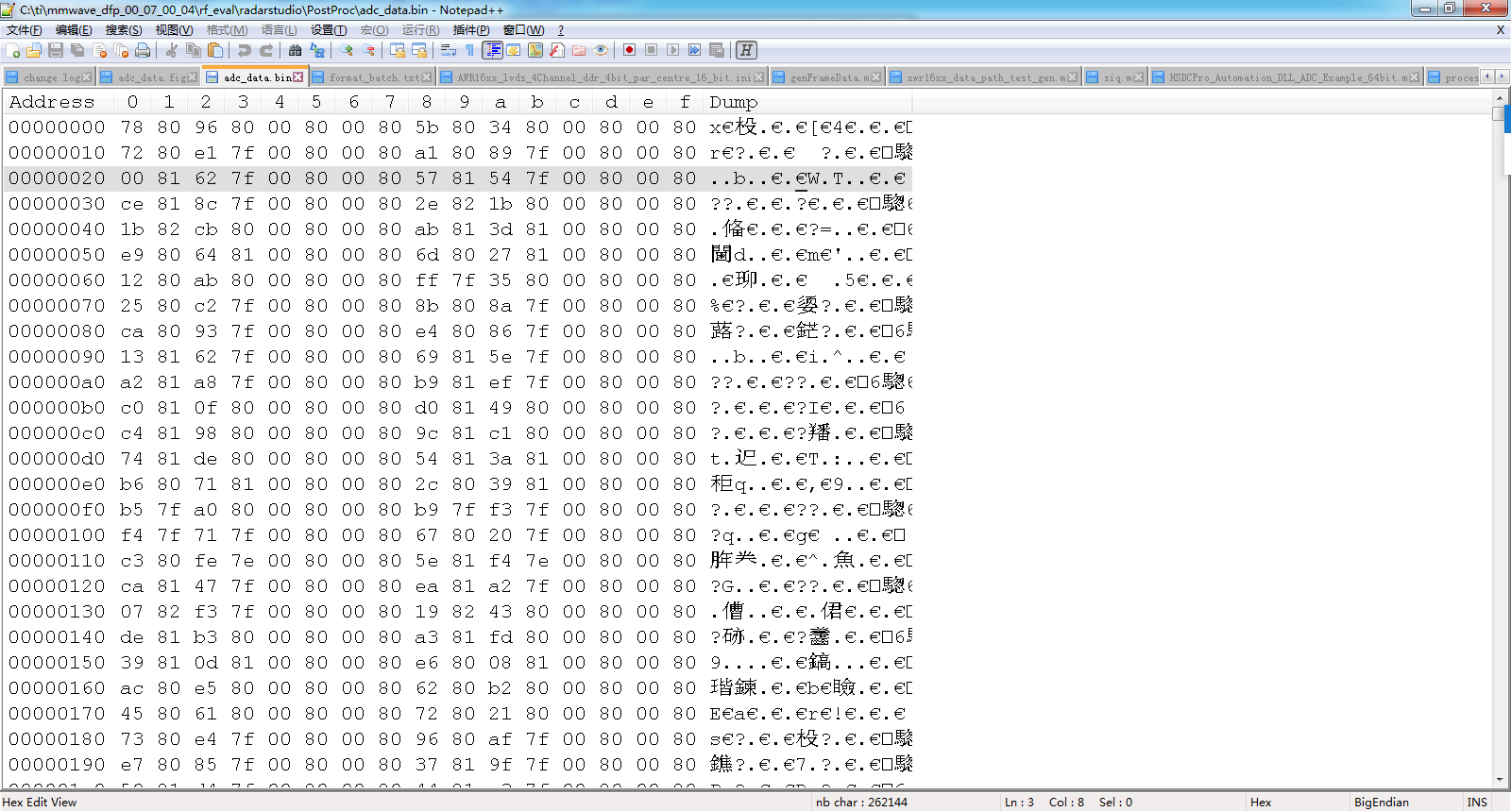

3. What is the first sample as following figure? Does they align with big-endian or little-endian?

Thanks in advance.

B.R.

0 Vivek Dham over 8 years ago in reply to Omin Chou

TI__Guru 58035 points

Hello OC,
The above data format you have mentioned is correct. In radar studio no frame headers are present, you know the number of chirps you have configured and number of samples in each chirp. Using that you identify the frame boundary.
The data is in little endian.

Regards,
Viven

0 Omin Chou over 8 years ago in reply to Vivek Dham

Genius 3555 points

Hi Vivek,

Thanks for your confirmation.

B.R.
OC

0 Zalman Ibragimov over 8 years ago in reply to Vivek Dham

Prodigy 60 points

Hi Vivek,

I installed all sw described in training material and connected the DevPack and the EVM to PC through USB cables. Connected a power supply to the EVM and powered it up. Nothing happens. In Windows Device Manager of Windows 10 , the COM ports not appear .

What should I do?

0 Vivek Dham over 8 years ago in reply to Zalman Ibragimov

TI__Guru 58035 points

Hello Zalman,
Your issue seems different from what is being discussed on this thread. I would request you to open a separate thread for this issue we can take forward from there.

Regards,
Vivek

0 Andy Yin over 8 years ago in reply to Vivek Dham

TI__Genius 9780 points

Hi Vivek,

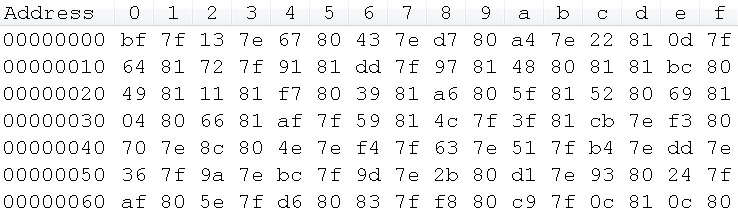

My customer used the AWR1642 EVM+TSW1400 to capture ADC raw data, with only Rx1 and Rx3 enabled, got below data view, seems the stored data format is Rx channel interleaved, it cannot be understood as below format. Per my understand AWR1642 only support non-interleaved data output, below data view confuse me. Would u pls help have a look at it?

RX1-I sample 0 , RX1-Q sample 0 , RX1-I sample 1 , RX1-Q sample 1 .....Rx1-I sample N-1 , RX1-Q sample N-1 , RX2-I sample 0 , RX2-Q sample 0 ……

Regards,

Andy
