IWR1443BOOST: analyze format of data uploaded via UART Port

Will_Wang

Part Number: IWR1443BOOST
Other Parts Discussed in Thread: AWR1642

Hello

I used mmWave_Demo_Visualizer 1.0.0 GUI to create the configuration file and send to the IWR1443BOOST using the COM port called CFG_port.

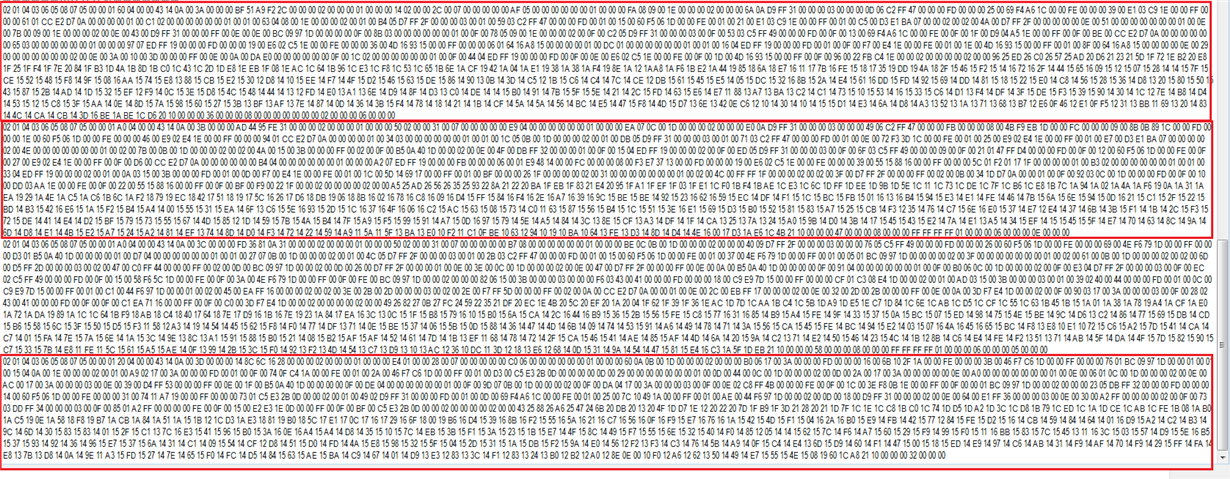

While the IWR1443BOOST running, I received the data generated by the demo on Data COM port via Tera term vt instead of Visualizer GUI .(shown in picture below)

question: How can I known detailed format of output packets with the detection information which are sent out every frame through the UART?

over 8 years ago

0 Vaibhav Mahimkar over 8 years ago

TI__Mastermind 23725 points

Hello Will,

Please check the following thread where a few ways to interpret the data sent over the UART port for mmWave Demo is discussed:

IWR1443: Get data from mmWave Demo GUI

Hope that helps. Please let us know if you have further questions.

Thank you,

Vaibhav

0 Minh Nguyen87 over 8 years ago

Prodigy 160 points

Hi, I work with AWR1642 and I have some problems. Can I ask you what is the set up of you tetra term to get data like this. What is the baud rate, data bit,...

0 Will_Wang over 8 years ago in reply to Minh Nguyen87

Prodigy 200 points

Hello

Power on the board---->send CLI command in configration file(or send command via mmWave_Demo_Visualizer )---->set Tera term port(baudrate：921600)

0 Minh Nguyen87 over 8 years ago in reply to Will_Wang

Prodigy 160 points

Thanks, I can receive the data. Do you understand the format of the data. I try to understand the source code of mmWave_Demo_Visualize. Maybe we can work together if you are interested.

0 Will_Wang over 8 years ago in reply to Minh Nguyen87

Prodigy 200 points

Yes of course. I tried to understand the source code of mmWave_Demo_Visualizer too but had many difficulties.

I think there have progress on recognizing the format of the data, for I have separated some strings according to my work.

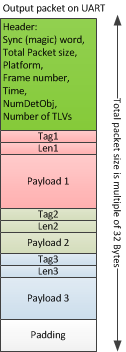

Format in picture below may help you a lot, I think. (.......packages\ti\demo\xwr16xx\mmw\docs )

Could you please let me know if you have any progress on understanding the source code of mmWave_Demo_Visualizer ?

0 Minh Nguyen87 over 8 years ago in reply to Will_Wang

Prodigy 160 points

I begin with example in gallery of TI to understand how javascript work, I will let you know when I have some progress.
Thank you

0 Minh Nguyen87 over 8 years ago in reply to Will_Wang

Prodigy 160 points

Hi bro, I have some idea to analyze the data. Can you tell me what is the version of your tetra term. My tetra term do not have the function to convert to Hex like you. If you do not mind, can you send your tetra term to me by email "minhece@gmail.com" or the link to download . I will tell you the result about analyze these data when I have some progress. Thank you

0 Will_Wang over 8 years ago in reply to Minh Nguyen87

Prodigy 200 points

What I'm using is called Serial-Port-Utility，which is similar to tetra term. You can download from( download.cnet.com/.../3000-2218_4-75879373.html). Two ports can be opened at the same time. (one to send, one to receive). Also, One version of it will be sent to your email.

0 Kevin Ortiz over 8 years ago

TI__Expert 3525 points

Hi,

I am closing this thread as it is marked as verified and has been inactive for some time. If you have another question, please feel free to open a new ticket.

P.S. we are currently working on a document that provides a clear description of the data structure and it will be available soon.

Regards,
Kevin
