IWR6843: Flashing IWR6843 over UART at UniFlash

JINHYEONG LEE

Intellectual 740 points

Part Number: IWR6843
Other Parts Discussed in Thread: UNIFLASH

Hi,

I'm developing a board using IWR6843, and I have the following questions.

Radar data can be received using Host MCU (STM32), but cannot flashing IWR6843 chip over UART at UniFlash (v6.3).

HW Configuration is as follows.

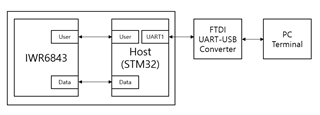

I was configured to bypass data between the User port and UART1 in the host, and it was connected to the PC with an FTDI UART-USB converter.

I can communicate in Functional mode, and tried to flash using UniFlash in Flash mode, but the COM port was not recognized.

How can I flashing IWR6843 in the above structure?

Thanks.

over 3 years ago

0 Brennan Hartigan over 3 years ago

TI__Genius 10463 points

Hi Jinhyeong,

Before using uniflash to flash the device, ensure that the COM port is disconnected from Tera Term. To do this, within Tera Term click file -> disconnect. Then, try flashing the device.

In addition, please ensure that the device is in flashing mode and that you have power cycled the device.

Regards,

Brennan

0 JINHYEONG LEE over 3 years ago in reply to Brennan Hartigan

Intellectual 740 points

I have already checked the following several times

1. COM port is disconnected from Tera Term.

2. SOP was set 1 0 1 and reboot device.

But It's still same in UniFlash.

{"mean":["<dicwordclass style=\"user-select: text;\">Boot Device 부팅 장치 </dicwordclass>","<dicwordclass style=\"user-select: text;\">Boot Device Manager Miscellaneous (Abbr.) BDM. </dicwordclass>","<dicwordclass style=\"user-select: text;\">Multiple Device Boot Miscellaneous (Abbr.) MDB. </dicwordclass>","<dicwordclass style=\"user-select: text;\">boot 미국∙영국[buːt] (튼튼하고) 목이 긴 신발, 부츠 (→desert boot, football boot, wellington) 英 (자동차의) 트렁크 세게 차다 컴퓨터 (컴퓨터를[가]) 부팅하다[되다] </dicwordclass>","<dicwordclass style=\"user-select: text;\">device 미국∙영국[dɪˈvaɪs] (특정 작업을 위해 고안된) 장치[기구] 폭발물, 폭탄 (특정한 결과·효과를 낳는) 방법 </dicwordclass>","<dicbridgeLine>","오픈","<dicbridgeLine>","예제","<dicwordclass style=\"user-select: text;\">Ricky first goes into the BIOS and makes the CD ROM the first boot device. null</dicwordclass>","<dicwordclass style=\"user-select: text;\">Bond was trailing Goldfinger and had planted a tracking device in the boot of his Rolls-Royce. null</dicwordclass>","<dicwordclass style=\"user-select: text;\">The operating system, known as "firmware", is stored on a microchip, and, like a PC, the device needs to boot up to make it work. null</dicwordclass>","<dicwordclass style=\"user-select: text;\">Boot up the PC using your Puppy disc and plug in your USB device. null</dicwordclass>","<dicwordclass style=\"user-select: text;\">Boot big enough for holiday luggage, golf clubs, even a couple of scuba tanks, wetsuit and a buoyancy control device (but not all at once). null</dicwordclass>","<dicbridgeLine>","VLIVE 자막"],"word":"boot device","basicWord":"boot device","soundWord":"boot device","phoneticSymbol":""}

0 Brennan Hartigan over 3 years ago in reply to JINHYEONG LEE

TI__Genius 10463 points

Hi Jinhyeong,

Since this is a custom board, how are you setting the SOP jumpers?

In addition, ensure that the COM port you are setting in Uniflash is the User UART//Enhanced (CFG) Port.

Also, please confirm you have the appropriate drivers installed. Refer to the resource below and ensure all the necessary steps have been followed for the setup of your device.

https://dev.ti.com/tirex/content/mmwave_industrial_toolbox_4_10_0/docs/hardware_guides/evm_setup_operational_modes.html

Regards,

Brennan

0 JINHYEONG LEE over 3 years ago in reply to Brennan Hartigan

Intellectual 740 points

The SOP jumper setting was set to 1, 0, 1 for flashing as mentioned above.

The com port used by Uniflash is not a USER//Enhanced port, but a UART port of the host that transmits data to the USER//Enhanced port as it is.

The FTDI Converter driver has been installed.

Is flashing via host(FTDI converter <-> Host <-> IWR6843 User port) impossible because UniFlash doesn't recognize the port?

{"mean":["<dicwordclass style=\"user-select: text;\">transmit 미국∙영국[træns│mɪt; trænz│mɪt] 전송[송신/방송]하다 전염시키다 (=transfer) 전문 용어 (열·전기·소리 등을) 전도하다 </dicwordclass>","<dicwordclass style=\"user-select: text;\">transmission 미국∙영국[træns│mɪʃn; trænz│mɪʃn] 전염, 전파, 전달 (=transfer) 전송, 송신 방송 </dicwordclass>","<dicbridgeLine>","오픈","<dicbridgeLine>","예제","<dicwordclass style=\"user-select: text;\">This wireless power system transmits energy by using magnetic fields. 이 무선 전력 공급 장치는 자기장을 이용해서 에너지를 전달한다.</dicwordclass>","<dicwordclass style=\"user-select: text;\">The controller uses a motion sensor and wirelessly transmits to the TV. 이 컨트롤러는 움직임 센서를 사용하여 TV로 무선 전송을 한다.</dicwordclass>","<dicwordclass style=\"user-select: text;\">The camera transmits pictures to a receiver worn around the patient’s waist. 카메라는 환자의 허리에 부착된 수신장치로 사진을 전송합니다.</dicwordclass>","<dicwordclass style=\"user-select: text;\">The shopper provides those four numbers to the clerk, who then transmits this one-time code to Swivel for authorization. 구매자가 점원에게 그 네 자리 숫자를 주면 점원은 이 일회용 비밀번호를 스위벌社에 전송하여 승인을 받는다.</dicwordclass>","<dicwordclass style=\"user-select: text;\">The product plugs into a cell phone or a personal digital assistant, which transmits a mild electrical current back to the fabric, called Elektex and made of synthetic fibers thinly coated in metal. 이 제품을 휴대폰이나 개인 휴대용 정보 단말기(PDA)에 플러그를 꽂아 접속하면, 금속재가 얇게 코팅된 ‘일렉텍스’라는 합성 섬유로 약한 전류를 보내 준다.</dicwordclass>","<dicbridgeLine>","VLIVE 자막","<dicwordclass style=\"user-select: text;\">[Ready to transmit the eating show...] [먹방 송출 준비중...]</dicwordclass>","<dicwordclass style=\"user-select: text;\">Can they not transmit it simultaneously? 동시 송출을 못해주시나?</dicwordclass>","<dicwordclass style=\"user-select: text;\">Is it about a disease being transmitted? 그거 감염되는 그런 건가?</dicwordclass>","<dicwordclass style=\"user-select: text;\">It's not being transmitted simultaneously, everyone. 동시 송출이 안 됐네요 여러분.</dicwordclass>","<dicwordclass style=\"user-select: text;\">No, sty gets transmitted as well. - No. - No? 아니에요, 다래끼도 옮습니다 - 안 옮아 - 안 옮나요?</dicwordclass>"],"word":"transmits","basicWord":"transmits","soundWord":"transmits","phoneticSymbol":""}

0 Brennan Hartigan over 3 years ago in reply to JINHYEONG LEE

TI__Genius 10463 points

Hi Jinhyeong,

Could you please post a screenshot of your COM ports in the device manager to this thread? This could be a case of UniFlash not recognizing the port.

Regards,

Brennan

0 JINHYEONG LEE over 3 years ago in reply to Brennan Hartigan

Intellectual 740 points

JINHYEONG LEE said:
The com port used by Uniflash is not a USER//Enhanced port, but a UART port of the host that transmits data to the USER//Enhanced port as it is.

This mention is not correct... COM port used by UniFlash is FTDI USB-USAR Converter port and FTDI is connected UART1 at host.

And Data of UART1 is passed USER UART in host FW.

Finally, USER UART is connected USER//Enhanced port of IWR6843. (you can refer block diagram in the first question)

If flashing is not possible with the above configuration, I will configure it not to go through the host.

{"mean":["<dicwordclass style=\"user-select: text;\">correct 미국∙영국[kəˈrekt] 맞는, 정확한 (↔incorrect), (=right) 적절한, 옳은 바로잡다, 정정하다 (가끔 점수를 매기기도 하면서 과제를) 검사하다 </dicwordclass>","<dicwordclass style=\"user-select: text;\">not 미국식[nɑːt] 영국식[nɒt] …아니다[않다] (be, do, have 동사나 can, must 같은 조동사를 부정할 때 씀. 흔히 n’t으로 줄여 씀) <뒤에 오는 단어·구를 부정할 때 또는 부정적인 대답을 할 때 씀> <<it> hope, expect, believe</it> 등의 뒤에 써서 부정적인 대답을 나타냄> </dicwordclass>","<dicwordclass style=\"user-select: text;\">use 명사[juːs] 동사[juːz] 쓰다, 사용[이용]하다 (특정한 양의 액체물질 등을) 소비하다[쓰다] 사용, 이용 용도, 쓰임새 (→single-use) </dicwordclass>","<dicwordclass style=\"user-select: text;\">mention 미국∙영국[ˈmenʃn] (말글로 간단히) 말하다, 언급[거론]하다 (→above-mentioned, aforementioned) (말글로 하는 간단한) 언급[거론] </dicwordclass>","<dicwordclass style=\"user-select: text;\">port 미국식[pɔːrt] 영국식[pɔːt] 항구 (도시) (Abbr.) Pt.. 항구[항만] (시설) (→airport, free port, heliport, seaport) 컴퓨터 (한 시스템기계에서 다른 시스템기계로 소프트웨어를) 복사하다 </dicwordclass>","<dicbridgeLine>","오픈","<dicwordclass style=\"user-select: text;\">com 오다 (come) </dicwordclass>","<dicwordclass style=\"user-select: text;\">com [접두사] 완전히, 모두 함께 (together) </dicwordclass>","<dicwordclass style=\"user-select: text;\">port 나르다, 운반하다 (carry) </dicwordclass>","<dicwordclass style=\"user-select: text;\">Port 단순히 금전적인 이익을 위해 게임의 품질이나 퀄리티 등 플레이 할 수 있는 요소에 투자하기보다 그저 자극적인 요소 등으로 가득 채운 게임을 의미한다. (질이 나쁜 게임을 의미) </dicwordclass>","<dicbridgeLine>","예제","<dicbridgeLine>","VLIVE 자막"],"word":"This mention is not correct COM port used by UniFlash is FTDI USBUSAR Converter port and FTDI is connected","basicWord":"This mention is not correct COM port used by UniFlash is FTDI USBUSAR Converter port and FTDI is connected","soundWord":"This mention is not correct COM port used by UniFlash is FTDI USBUSAR Converter port and FTDI is connected","phoneticSymbol":""}

+1 Wesley He over 3 years ago in reply to JINHYEONG LEE

TI__Expert 6205 points

Hi, Jinhyeong,

After you click the "load image" in uniflash, the uniflash will send a break signal to device. A long low level break signal, then device will have the response for this break signal. You can have UART sending 0X00 in 110bps or other low bps to simulate this break signal..

After this, UART will send command and data in 115200bps.

You can refer to FIGURE 9 at document: https://www.ti.com.cn/cn/lit/pdf/swra627

Regards,

Wesley

0 Brennan Hartigan over 3 years ago in reply to Wesley He

TI__Genius 10463 points

Thank you, Wesley for the reply!

Jinhyeong, please try this and post in this thread if you are having additional problems.

Regards,

Brennan
