Hi,

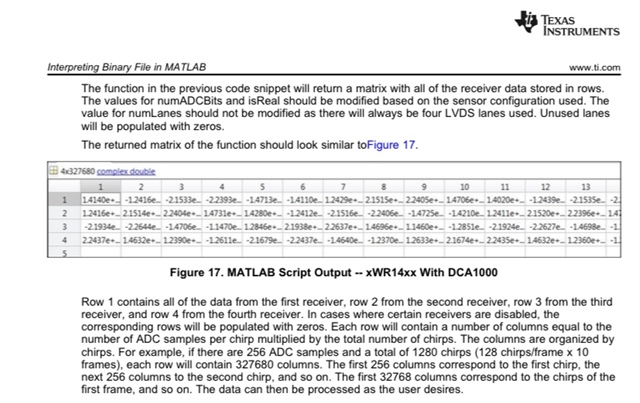

I followed the DCA1000 training video with the default setting. Then, I stepped to convert the captured data "adc_data.bin" to a matrix with all the receiver data stored in rows. But, I could not do it. Below are the log and other related files. May I know the reason behind not showing a matrix using the provided MATLAB code?
GM: Constructor
GM: Sun Oct 02 22:08:50 2022
RSTD.Transmit("/Settings")
[22:08:50]
[22:08:50] ### Running Startup script: "C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Scripts\Startup.lua" ###
[22:08:50] RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[22:08:50] RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[22:08:50] Scripter ignored: Attempt to UnBuild() again or before Build.
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[22:08:50] RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\RunTime\\SAL.dll")
[22:08:50] RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[22:08:50] RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[22:08:50] RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[22:08:50] RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[22:08:50] RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[22:08:50] RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[22:08:50] RSTD.Transmit("/")
[22:08:50] RSTD.SaveSettings(): Settings saved to "C:\Users\kumar\AppData\Roaming\RSTD\config.xml"
[22:08:50] RSTD.Build()
[22:08:50] RSTD.SaveSettings(): Settings saved to "C:\Users\kumar\AppData\Roaming\RSTD\config.xml"
[22:08:50] RSTD.Transmit("/")
[22:08:50] RSTD.AL_Build()
[22:08:50] RSTD.AL_LoadXml()
[22:08:50] RSTD.Transmit("/")
[22:08:50] RSTD.AL_Init()
[22:08:50] RSTD.Clients_Build()
[22:08:50] GM: Init
[22:08:50] GM: Loaded 'C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Clients\\LabClient.dll'
[22:08:50] GM: 1 Guest (s) init
[22:08:50] GM: 1 Module(s) init
[22:08:50] GM: 2 Tab (s) init
[22:08:50] RSTD.Client_LoadXml()
[22:08:50] [RadarAPI]: ar1.selectRadarMode(0)
[22:08:50] [RadarAPI]: Status: Passed
[22:08:51] Matlab Runtime Engine is installed
[22:08:51] [RadarAPI]: Starting Matlab Engine..
[22:08:53] [RadarAPI]: Matlab Engine Started!
[22:08:54] [RadarAPI]: ar1.selectCascadeMode(0)
[22:08:54] [RadarAPI]: Status: Passed
[22:08:54] [RadarAPI]: ar1.LoadSettings('C:\Users\kumar\AppData\Roaming\RSTD\ar1gui.ini')
[22:08:55] TESTING = false
[22:08:55] RstdNet: Port 2777: Listening..
[22:08:55]
[22:08:55] ***Script completed successfully.***
[22:09:02] [RadarAPI]: Opening Gpio Control Port()
[22:09:02] [RadarAPI]: Status: Passed
[22:09:02] [RadarAPI]: Opening Board Control Port()
[22:09:02] [RadarAPI]: Status: Passed
[22:09:03] [RadarAPI]: ar1.FullReset()
[22:09:03] [RadarAPI]: Status: Passed
[22:09:04] [RadarAPI]: Closing Board Control Port()
[22:09:04] [RadarAPI]: Status: Passed
[22:09:04] [RadarAPI]: Closing Gpio Control Port()
[22:09:04] [RadarAPI]: Status: Passed
[22:09:04] [RadarAPI]: ar1.SOPControl(2)
[22:09:04] [RadarAPI]: Status: Passed
[22:09:09] [RadarAPI]: ar1.Connect(4,921600,1000)
[22:09:11] [RadarAPI]: Warning: Connected with baudrate 115200
[22:09:12] [RadarAPI]: Warning: Disconnected existing BaudRate
[22:09:13] [RadarAPI]: Warning: Trying to connect with baudrate 921600
[22:09:14] [RadarAPI]: ar1.Calling_IsConnected()
[22:09:15] [RadarAPI]: ar1.SelectChipVersion("AR1243")
[22:09:15] [RadarAPI]: Status: Passed
[22:09:15] [RadarAPI]: ar1.SelectChipVersion("AR1243")
[22:09:15] [RadarAPI]: Status: Passed
[22:09:15] [RadarAPI]: ar1.deviceVariantSelection("XWR1443")
[22:09:15] [RadarAPI]: Status: Passed
[22:09:15] [RadarAPI]: ar1.frequencyBandSelection("77G")
[22:09:15] [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[22:09:15] [RadarAPI]: Status: Passed
[22:09:15] Device Status : XWR1443/QM/SOP:2/ES:3
[22:09:16] [RadarAPI]: ar1.SaveSettings('C:\Users\kumar\AppData\Roaming\RSTD\ar1gui.ini')
[22:09:24] [RadarAPI]: ar1.DownloadBSSFw("C:\\ti\\mmwave_studio_02_01_01_00\\rf_eval_firmware\\radarss\\xwr12xx_xwr14xx_radarss.bin")
[22:09:24] [RadarAPI]: Downloading BSS Patch RPRC Binary..
[22:09:25] [RadarAPI]: ar1.GetBSSFwVersion()
[22:09:25] [RadarAPI]: BSSFwVersion:(02.00.00.01 (05/10/17))
[22:09:26] [RadarAPI]: ar1.GetBSSPatchFwVersion()
[22:09:26] [RadarAPI]: BSSPatchFwVersion:(01.02.05.02 (30/04/19))
[22:09:30] [RadarAPI]: ar1.DownloadMSSFw("C:\\ti\\mmwave_studio_02_01_01_00\\rf_eval_firmware\\masterss\\xwr12xx_xwr14xx_masterss.bin")
[22:09:30] [RadarAPI]: Downloading MSS RPRC Binary..
[22:09:33] [RadarAPI]: ar1.GetMSSFwVersion()
[22:09:33] [RadarAPI]: MSSFwVersion:(01.02.05.01 (12/07/19))
[22:09:36] [RadarAPI]: ar1.PowerOn(0, 1000, 0, 0)
[22:09:36] [RadarAPI]: Status: Passed
[22:09:36] MSS power up done async event received!
[22:09:39] [RadarAPI]: ar1.SelectChipVersion("AR1243")
[22:09:39] [RadarAPI]: Status: Passed
[22:09:39] [RadarAPI]: ar1.SelectChipVersion("XWR1443")
[22:09:39] [RadarAPI]: Status: Passed
[22:09:40] Device Status : XWR1443/QM/SOP:2/ES:3
[22:09:40] [RadarAPI]: ar1.RfEnable()
[22:09:40] BSS power up done async event received!
[22:09:40] [RadarAPI]: Status: Passed
[22:09:40] [RadarAPI]: ar1.GetMSSFwVersion()
[22:09:40] [RadarAPI]: MSSFwVersion:(01.02.05.01 (12/07/19))
[22:09:41] [RadarAPI]: ar1.GetBSSFwVersion()
[22:09:41] [RadarAPI]: BSSFwVersion:(02.00.00.01 (05/10/17))
[22:09:42] [RadarAPI]: ar1.GetBSSPatchFwVersion()
[22:09:42] [RadarAPI]: BSSPatchFwVersion:(01.02.05.02 (30/04/19))
[22:10:32] [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 0, 1, 1, 1, 1, 2, 1, 0)
[22:10:32] [RadarAPI]: Status: Passed
[22:10:58] [RadarAPI]: ar1.LPModConfig(0, 0)
[22:10:58] [RadarAPI]: Status: Passed
[22:10:59] [RadarAPI]: ar1.SetCalMonFreqLimitConfig(77,81)
[22:10:59] [RadarAPI]: Status: Passed
[22:11:00] [RadarAPI]: ar1.RfInit()
[22:11:00] RF Init async event received!
[22:11:00] [RadarAPI]: Time stamp, Temperture: 80626,35; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 0, 0; RxIQMM Status, Update: 1, 1;
[22:11:00] [RadarAPI]: Status: Passed
[22:11:07] [RadarAPI]: ar1.DataPathConfig(513, 1216644097, 0)
[22:11:07] [RadarAPI]: Status: Passed
[22:11:08] [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[22:11:08] [RadarAPI]: Status: Passed
[22:11:10] [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 1, 1, 1, 0, 0)
[22:11:10] [RadarAPI]: Status: Passed
[22:11:29] [RadarAPI]: ar1.ProfileConfig(0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[22:11:29] [RadarAPI]: Status: Passed
[22:11:31] [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 0, 0)
[22:11:31] [RadarAPI]: Status: Passed
[22:11:43] Test Source Already Disabled...!!!
[22:11:43] [RadarAPI]: ar1.DisableTestSource(0)
[22:11:43] [RadarAPI]: Status: Passed
[22:11:43] [RadarAPI]: ar1.FrameConfig(0, 0, 8, 128, 40, 0, 0, 1)
[22:11:43] [RadarAPI]: Status: Passed
[22:11:54] [RadarAPI]: ar1.GetCaptureCardDllVersion()
[22:11:54] [RadarAPI]: Sending dll_version command to DCA1000
[22:11:54] [RadarAPI]:
[22:11:54] DLL Version : 1.0
[22:11:54] [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[22:11:54] [RadarAPI]: Status: Passed
[22:11:58] [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[22:11:58] [RadarAPI]: ar1.CaptureCardConfig_Mode(1, 1, 1, 2, 3, 30)
[22:11:58] [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[22:11:58] [RadarAPI]: Sending fpga command to DCA1000
[22:11:58] [RadarAPI]:
[22:11:58] FPGA Configuration command : Success
[22:11:58] [RadarAPI]: Sending record command to DCA1000
[22:11:59] [RadarAPI]:
[22:11:59] Configure Record command : Success
[22:11:59] [RadarAPI]: ar1.GetCaptureCardFPGAVersion()
[22:11:59] [RadarAPI]: Sending fpga_version command to DCA1000
[22:11:59] [RadarAPI]:
[22:11:59]
[22:11:59] FPGA Version : 2.8 [Record]
[22:11:59]
[22:12:07] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data.bin", 1)
[22:12:07] [RadarAPI]: Sending start_record command to DCA1000
[22:12:11] [RadarAPI]: ar1.StartFrame()
[22:12:11] [RadarAPI]: Status: Passed
[22:12:11] Frame start async event received!
[22:12:11] Frame End async event received!
[22:12:11] [RadarAPI]: Frame Ended
[22:12:13] [RadarAPI]:
[22:12:13] [RadarAPI]:
[22:12:13] Start Record command : Success
[22:12:13]
[22:12:13] Record is completed
[22:12:13]
[22:12:13] Record stop is done successfully
[22:12:26] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data.bin")
[22:12:26] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 8

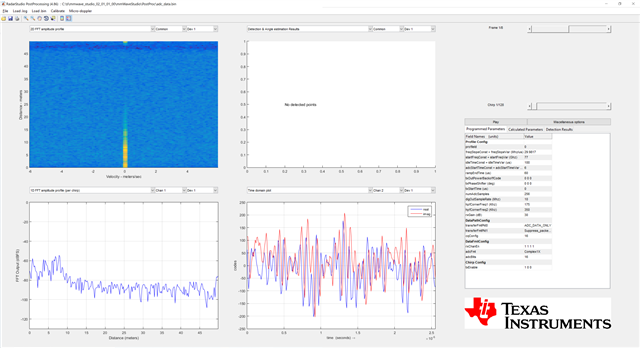

Generated plot after PostProc:
Generated data and csv files:
0334.InvalidConfigErr.csv7142.adc_data_Raw_LogFile.csv
Please suggest.
