AWR1243BOOST: Fix target and fix radar : Reconstruction of image radar issue

Hi,

Unfortunately there is no Matlab available from our support team.

We will let this thread open for other forum members to participate

thank you
Cesar

Hello,

I have another problem with speed. When my target is moving at 6 km/h, I cannot detect the distance between the target and the sensor when it is at 90°. I am using a BPM-MIMO configuration. How can I solve this problem?

Thank you,

SOUAD

Do you mean that the angle between the target and the normal to the surface of the sensor is 90 degrees?

The Field of View of the Antenna is around 60 degrees

You can see the Antenna gain plot in the EVM User Guide

https://www.ti.com/lit/ug/spruit8d/spruit8d.pdf

Figure 2-10, 2-11.

As you can see, on object will not be detected at 90deg

thank you
Cesar

My sensor is an AWR1243boost, the high gain of the antenna is at 0°, so the target and the sensor must be perpendicular.

Hi,

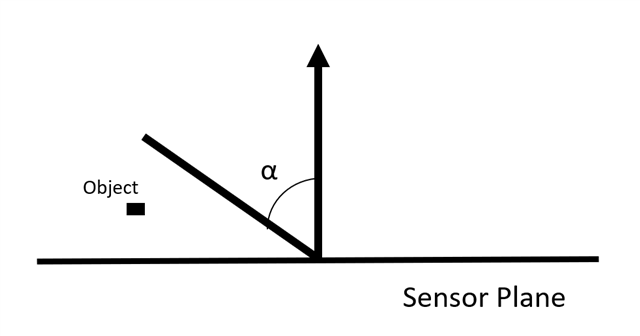

Please take a look at the snapshot below. When the angle alpha increases, at some point the object will no longer be detected. This angle depends on the reflectivity of the object. Usually, for the AWR1243BOOST antenna the alpha angle when objects are no longer detected is around 55-60 degrees.

When alpha=90deg, the object will not be detected

thank you
Cesar

Hello,

Thank you for your reply. Could you explain how to position the target in front of my sensor? I need very high precision regarding the distance, and what speed should I use?

Best regards,

SOUAD Fatima-ezzahraa

Hi,

Could you please provide more information about the use case? We are not clear about your setup

thank you
Cesar
