AWR2944: If HSM core has registered the interrupt HSM_MBOX_READ_ACK, which register should be configured to enter the ACK interrupt handler function in the Secure host R5F core?

cheyrl wang

Part Number: AWR2944

Tool/software:

Question one：If HSM core has registered the interrupt HSM_MBOX_READ_ACK, which register should be configured to enter the ACK interrupt handler function in the Secure host R5F core?

Question two：In the SDK package (tifs_awr294x_10_01_00_01), I couldn’t find the register R5FSS0_0_MBOX_READ_DONE_ACK shown in Figure 1 in the chip manual,Can you give me help？

picture 1

3 days ago

0 Saswat Kumar 2 days ago

TI__Mastermind 35985 points

Hello Cheryl,

1) You have to use the R5FSS0_0_MBOX_READ_DONE_ACK.

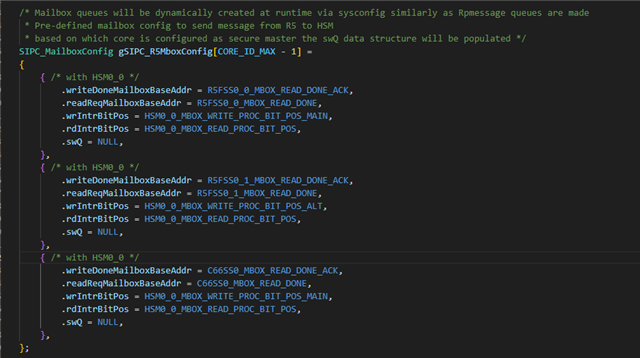

2) This is present in secure_ipc_notify driver in the mcuplus SDK folder

Regards,
Saswat Kumar

0 cheyrl wang 2 days ago in reply to Saswat Kumar

Intellectual 740 points

but I can not find this register R5FSS_MBOX_READ_DONE_ACK, I can not find this register through register's address from the mcuplus SDK folder,too.

0 Saswat Kumar 2 days ago in reply to cheyrl wang

TI__Mastermind 35985 points

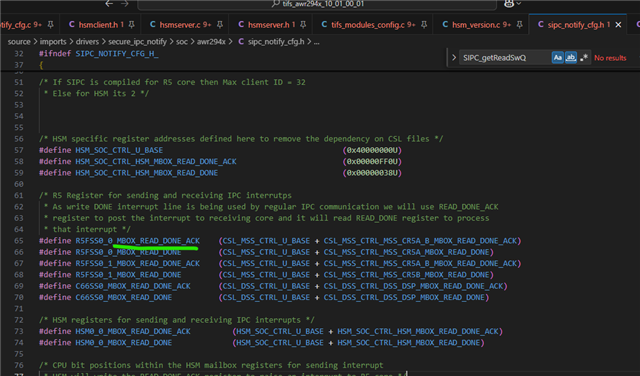

Please check in source/drivers/secure_ipc_notify/soc/awr294x/sipc_notify_cfg.h

0 cheyrl wang 2 days ago in reply to Saswat Kumar

Intellectual 740 points

I couldn't find this register even after searching the chip manual. I even extracted the register address from the SDK package, but still couldn't find it in the chip manual

0 Saswat Kumar 2 days ago in reply to cheyrl wang

TI__Mastermind 35985 points

Hello Cheryl,

We can take it as feedback for TRM, for now please refer to the SDK offset and utilize that.

Regards,
Saswat Kumar
