AWR1642BOOST: AWR1642+DCA1000,Queations on DCA1000

user5297696

Part Number: AWR1642BOOST
Other Parts Discussed in Thread: AWR1642, AWR1243

I use DCA1000+AWR1642 to get raw data for analysis.
when adcStarTime=4us, rampEndTime=100us, ADC samples=900, DCA1000 PostPro is as below

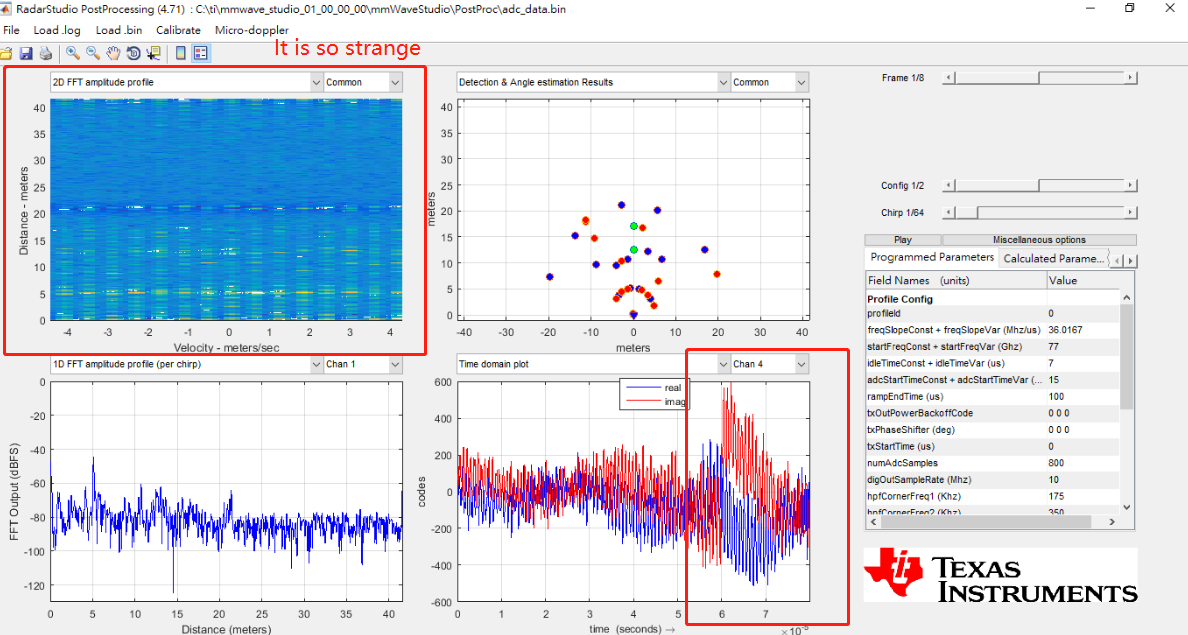

I'm not sure that there is a distortion at begining of the data.So I set adcStarTime=24us, rampEndTime=100us, ADC samples=750,DCA1000 PostPro is as below, I repeat the operation and get the same results,that is why? what's wrong with it ? How to avoid getting this?

over 7 years ago

0 Kaushal Kukkar over 7 years ago

TI__Expert 7215 points

Hi Lu,

Let me check this at my setup and see if I see similar behavior. I will get back on this.

Regards,
Kaushal

0 user5297696 over 7 years ago in reply to Kaushal Kukkar

Intellectual 435 points

Hi Kaushal
OK,thank you so much ,I'm waiting for your reply.

0 user5297696 over 7 years ago in reply to Kaushal Kukkar

Intellectual 435 points

Hi Kaushal
Have you checked this? Can you tell me the results?

0 Kaushal Kukkar over 7 years ago in reply to user5297696

TI__Expert 7215 points

Hi Lu,

Apologies for delayed response. I tried the scenario at my setup and I don't see the issue at our end. Please see below

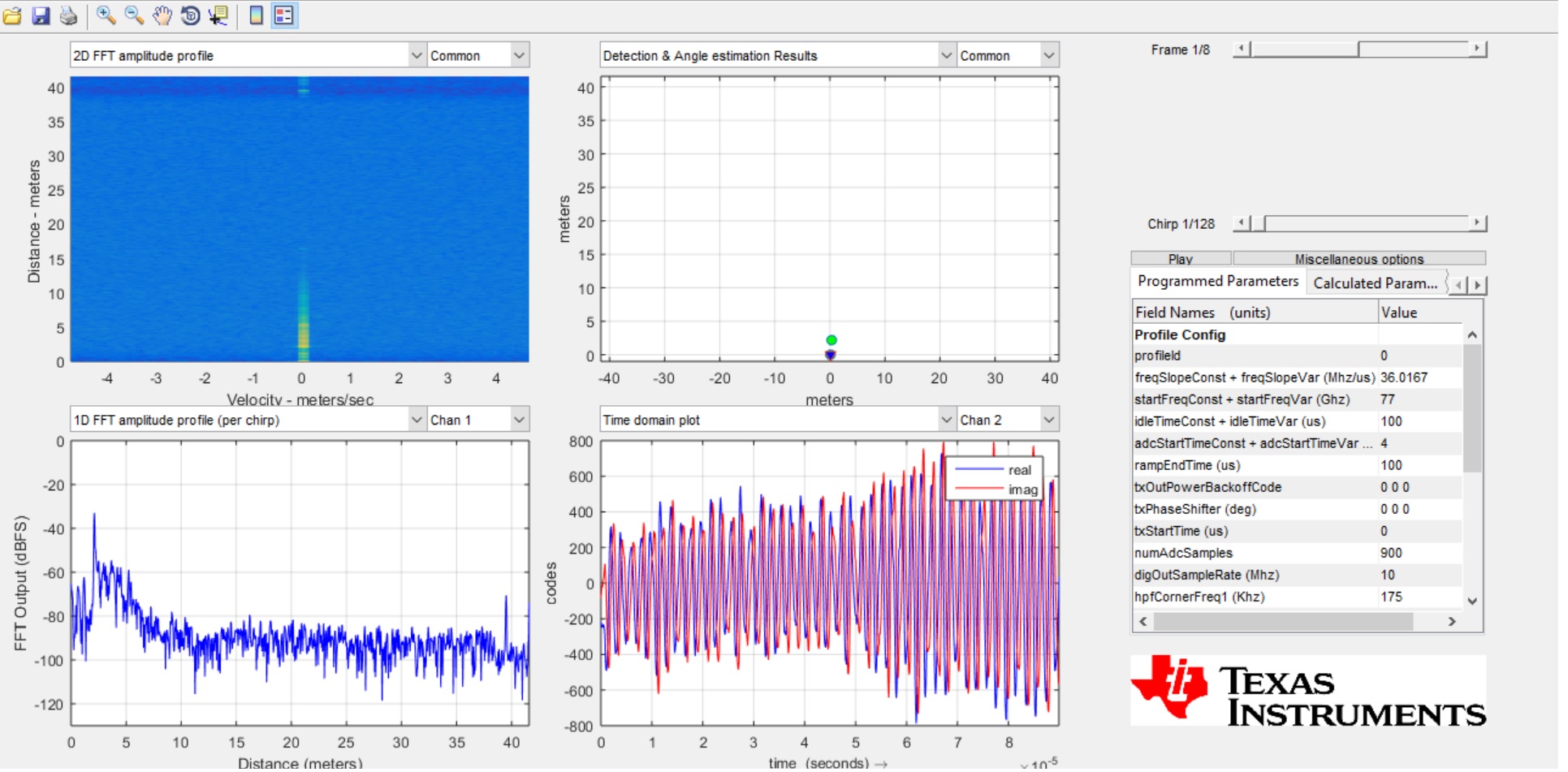

ADC start time: 4msec, ADC samples:900

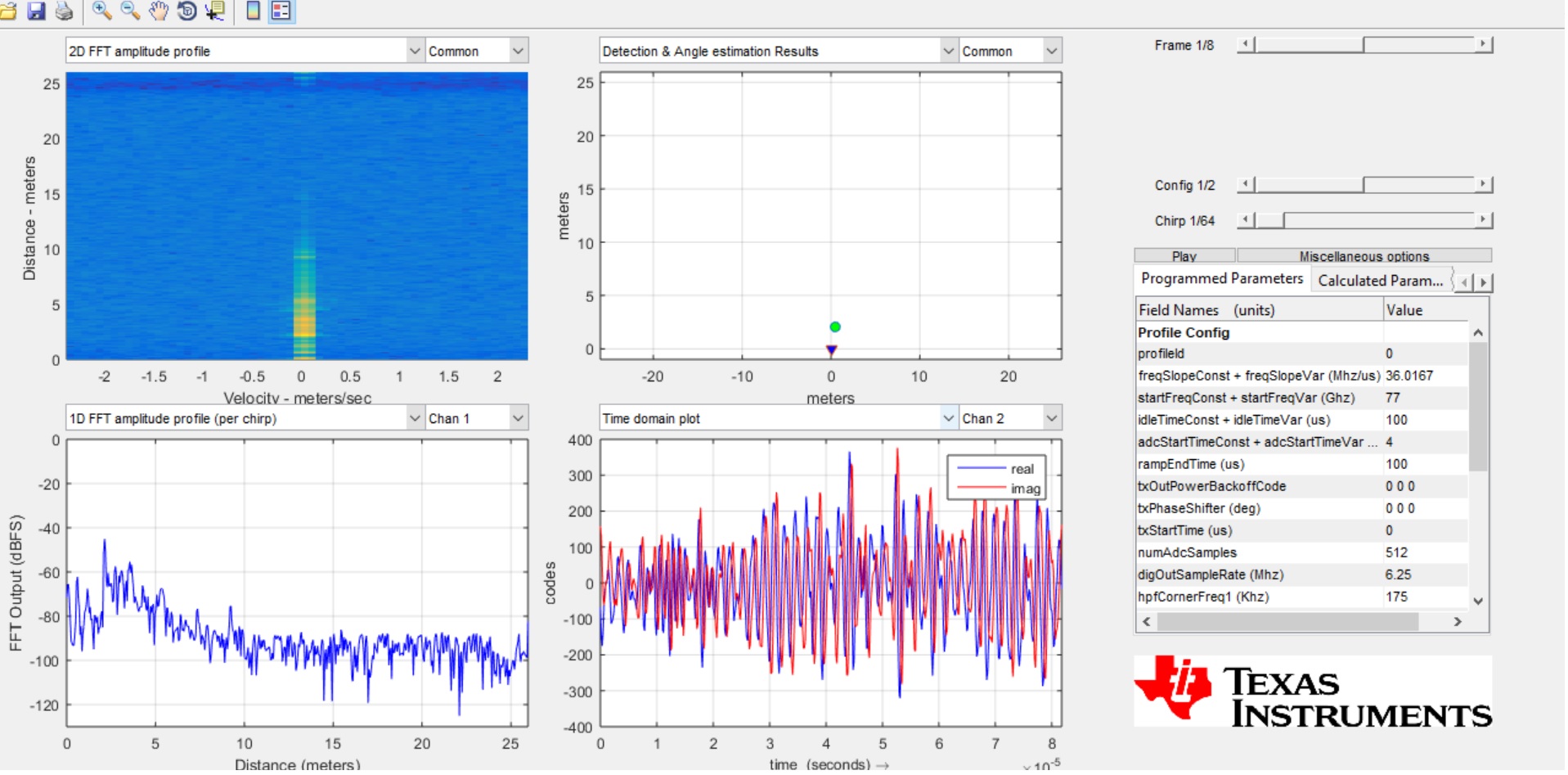

ADC start time: 15msec, ADC samples:750

Can you let us know if you changed any other settings.

Regards,

Kaushal

0 user5297696 over 7 years ago in reply to Kaushal Kukkar

Intellectual 435 points

Hi Kaushal

Thanks for your reply.

We operated DCA1000+1642 in accordance with ''DCA1000 quick start' and “mmwave studio user guide”.

Can you tell us your setup as detail as possible?

0 Kaushal Kukkar over 7 years ago in reply to user5297696

TI__Expert 7215 points

Hi Lu,

I am using the same Setup as you but I used AWR1243 instead of AWR1642. I can do the same experiment with AWR1642.

But, Can you test your configuration with lower sampling rate of 6.25msps and less number of samples. See if this helps.

Regards,
Kaushal

0 user5297696 over 7 years ago in reply to Kaushal Kukkar

Intellectual 435 points

Hi Kaushal
We will test our configuration with lower samlping rate of 6.25Msps later, But can we know your result of using AWR1642?
By the way,the maximum ADC samlping rate of AWR1642 is 6.25 msps, when ADC format is complex 1x, right? But why we can get the result seems correct at first time as figure1 in above?
In some documents, the complex (I and Q) DFE output rate is 2.5-18.75Msps, why we can't use the setting of 10Msps（>6.25Msps）?

0 user5593674 over 7 years ago

Prodigy 135 points

hi,i am using the DCA1000 too,I want to know you how to change the parameters.I change it only by change the .lua file.
Thanks and regards.

0 Kaushal Kukkar over 7 years ago in reply to user5593674

TI__Expert 7215 points

Hi,

I am using mmWaveStudio GUI to configure the parameters.

Also 18.75msps sampling rate is supported in AWR1243. AWR1642 only supports 6.25msps

See the result with AWR1642.

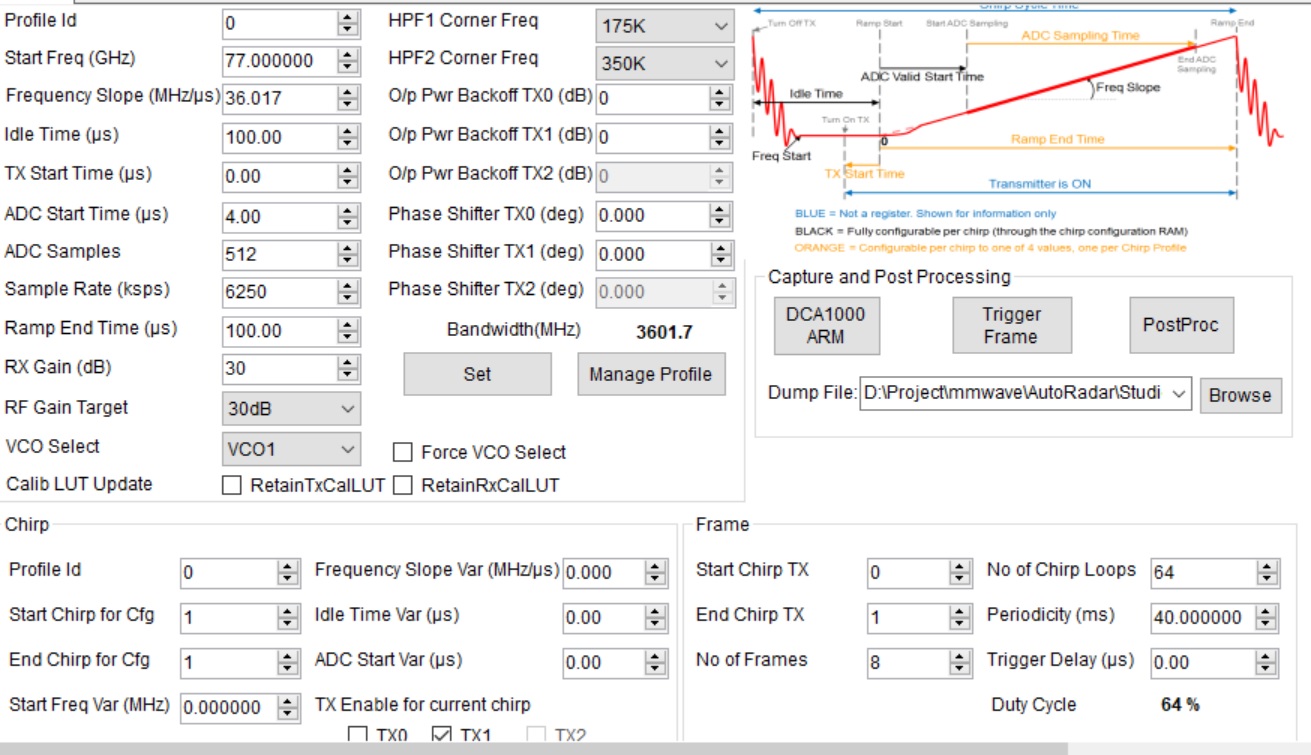

Configuration using mmWaveStudio GUI

Regards,

Kaushal

0 user5297696 over 7 years ago in reply to Kaushal Kukkar

Intellectual 435 points

Kaushal,Thank you for your reply.
I wonder why we can get the Detction&angle estimation results which seems correct.
If the mistake is ADC configuration,we ues the ADC format real ,it will be OK? (AWR1642)

0 Kaushal Kukkar over 7 years ago in reply to user5297696

TI__Expert 7215 points

Hi,

Can you elaborate on the problem? Do you get similar result as me when using 6.25msps sampling rate.

Real ADC mode is ok. Complex 1x gives 3dB better noise figure.

Regards,
Kaushal

0 Kaushal Kukkar over 7 years ago in reply to Kaushal Kukkar

TI__Expert 7215 points

Hi,

I am closing this thread as I didn't see any response. Please start a new thread for more questions.

Regards,
Kaushal
