TDC7200EVM: How big is the TDC7200EVM's input signal

user6521559

Part Number: TDC7200EVM

Hi,My lab want to use tdc7200evm for part of single photon detector.

Connect start with laser pulse and connect stop with avalanche pulse.

But,I can't figure out how big the avalanche pulse should I send to the tdc7200evm. I can only find the pulse width on the data sheet.

By the way,our avalanche pulse is usually at hundreds of mV. Maybe we need a amplifier.

Sincerely,Bryan Cheng

over 3 years ago

0 Justin Beigel over 3 years ago

TI__Genius 17690 points

Hello Bryan,

Just wanted to let you know that our ultrasonic experts are out this week and will be back next week to answer your questions.

Best Regards,

0 Gabriel Lake1 over 3 years ago

TI__Expert 3450 points

Hi Bryan,

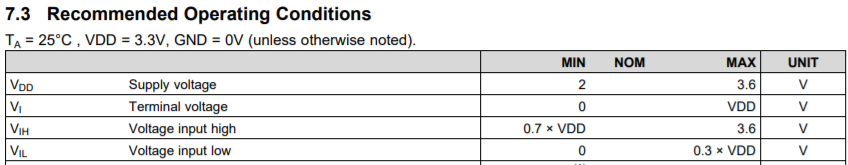

The minimum STOP voltage level is this VIH in the Recommended Operating Conditions Table of the datasheet. 0.7*VDD.

VCC from the MSP430 (JP1 jumper installed on the EVM) is 3.3V. If you need to supply a lower voltage down to 2V, you have to remove the JP1 jumper and supply the voltage directly on JP1.

Regards,

Gabriel

0 user6521559 over 3 years ago in reply to Gabriel Lake1

Prodigy 20 points

OK,I got it.

Thanks for reply!
