AWR2243BOOST: How to figure out my AWR2243BOOST is Rev A or B?

Yongshen Zhang

Prodigy 20 points

Part Number: AWR2243BOOST
Other Parts Discussed in Thread: AWR2243

From AWR2243BOOST's document, I knew board Rev A's capacitor C56 was changed from 220nF to 47nF in board Rev B.

1. Would this change bring completely different performance?

2. There is no clear evidence that shows my board's version. How can I know it's A or B?

over 2 years ago

0 Ishita Kochar over 2 years ago

TI__Mastermind 31680 points

Hello,

The revision should be highlighted on the silicon screen near the 60 pin connector of the Boost EVM. The capacitor that is changed is the Bandgap decoupling capacitor (VBGAP).

Regards,

Ishita

0 Yongshen Zhang over 2 years ago in reply to Ishita Kochar

Prodigy 20 points

I can only see 'PROC099A-001'. No other information can be found.

By the way, my 5-V LED won't glow. I guess there's something wrong in the hardware.

0 Ishita Kochar over 2 years ago in reply to Yongshen Zhang

TI__Mastermind 31680 points

Hello,

What is the power Supply rating you're using?

Also, can you send a picture of your setup?

Regards,

Ishita

0 Yongshen Zhang over 2 years ago in reply to Ishita Kochar

Prodigy 20 points

I don't know what 'power supply rating' means.

0 Ishita Kochar over 2 years ago in reply to Yongshen Zhang

TI__Mastermind 31680 points

Hello,

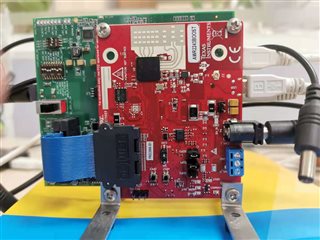

Thankyou for the picture of the setup. PROC99A is revB.

Also, for the connections, have you followed the AWR2243 Boost user guide and DCA1000 quick start guide for start up?

I don't see the device boot up after supplying power. Is it a 5V supply you're using? What is the current rating?

Regards,

Ishita
