AFE58JD16: How to use the PN?

Expert 2290 points

Replies: 1

Views: 395

Part Number: AFE58JD16

Hi team,

    My customer has some question about the IC, Could you give him some advice?

1.   NM1~INM16 are NC ,should I connect them to ground or VCC with a resistance?

2、ADC_CLKP &ADC_CLKN are LVDS, Should I add a 100 ohm to short out?

3、In datasheet(Rev 0.5  Mar/2015  )P113  Figure38   VREF_IN_REXT is connected with a cap ,Why do this ? And I don't find the Pin. As the yellow part:


4、Is DGND apart from AGND? AVSS1.8V is apart from DVSS1.8V? Do you have some recommendation about  decoupling capacitor?

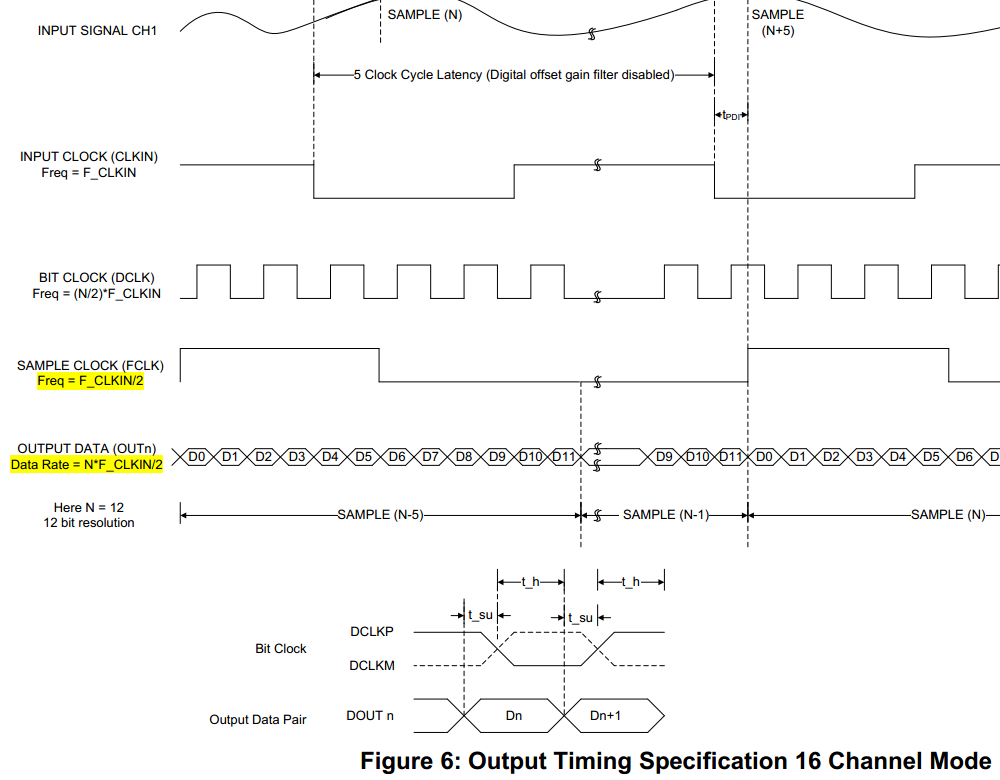

5、FCLK & OUTPUT DATA have wrong position? Is FCLK equal to F_CLKIN? Is Data Rate equal to N*F_CLKIN ?

1 Reply

  • Hello,

    We have received the query about the device AFE58JD16.
    Since AFE58JD16 is an NDA restricted device, I would like to take the conversation offline.
    Please send an email to praveen.aroul@ti.com

    Regards

    Praveen
