AWR1243: Errata ANA#06 Return Loss Measurement

Hitoshi Sugawara

Mastermind 19960 points

Part Number: AWR1243

Hi Experts,

Regarding the errata www.ti.com/lit/swrz071 ANA#06, we believe that the Return Loss must be worst case in the range of 76 to 81GHz,

We would like to know the Return Loss when the rage is from 76 to 77GHZ.

Also, could you please share the data which shows frequency vs. the Return Loss?

It is nice to have if S-parameter file which is citifile or Toshstone type could be shared.

Thank you very much for your kind support.

Best regards,

Hitoshi

over 7 years ago

0 Vivek Dham over 7 years ago

TI__Guru 58035 points

Hello Hitoshi San,
I shall check on this and get back to you.

Regards,
Vivek

0 Hitoshi Sugawara over 7 years ago in reply to Vivek Dham

TI__Mastermind 19960 points

Hi Vivek,
I would appreciate if you could kindly update this.
Best regards,
Hitoshi

0 bginzz over 7 years ago in reply to Hitoshi Sugawara

TI__Prodigy 545 points

Hi Sugawara-san,

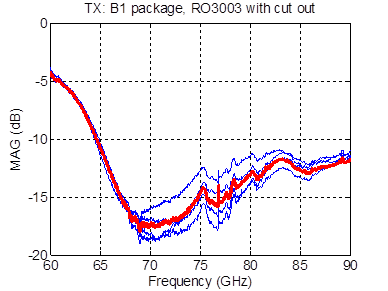

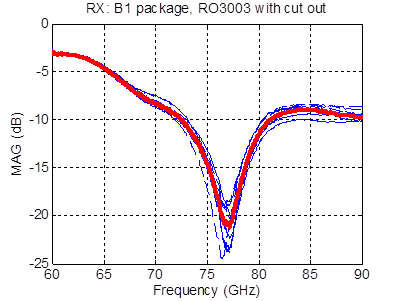

I am attaching two Touchstone files that are the typical impedances of the RX and TX ports. These are measured using a probe setup with the reference plane on the RO3003 PCB transmission line at the edge of the package. The corresponding return losses are shown in red in the below figures:

Regards,

Brian

xWR1642_S11_RO3003.zip

0 Hitoshi Sugawara over 7 years ago in reply to bginzz

TI__Mastermind 19960 points

Hi Brain,
I have a question.
The errata ANA#06 says that ANA#06 Return Loss Measurement on TX: S11 < –9dB, RX S11 < –6.5dB (Excepted Value of < –10dB)
The graph on this sled seems very close to target spec.
How can I understand TX:S11 < -9dB and RX:S11 < -6.5dB?
Thank you very much and best regards,
Hitoshi

0 bginzz over 7 years ago in reply to Hitoshi Sugawara

TI__Prodigy 545 points

Hi Hitoshi-san,

Unfortunately, I wasn't very clear in my earlier response. The graph corresponds to the update that is expected with the next silicon revision, after the fix. This was measured from a lookahead experiment and hence has better performance than indicated from the errata. When designing new boards for new parts, please use these S1P files as the nominal impedances.

Regards,
Brian

0 Hitoshi Sugawara over 7 years ago in reply to bginzz

TI__Mastermind 19960 points

Hi Brian,

Thank you for your kind clarifying the data where it comes from.
It shows the improvement of the next silicon.
Alternatively, I could close this inquiry with the data.
Thank you again and best regards,
Hitoshi
