AWR1642: RPRC Image format

Adam Yao94020

Part Number: AWR1642

Hi champion,
My customer is studying AWR1642 bin format to develop their second boot loader. They analyzed the bin file xwr16xx_mmw_demo.bin under C:\ti\mmwave_sdk_01_01_00_02\packages\ti\demo\xwr16xx\mmw and have some questions about the RPRC header.

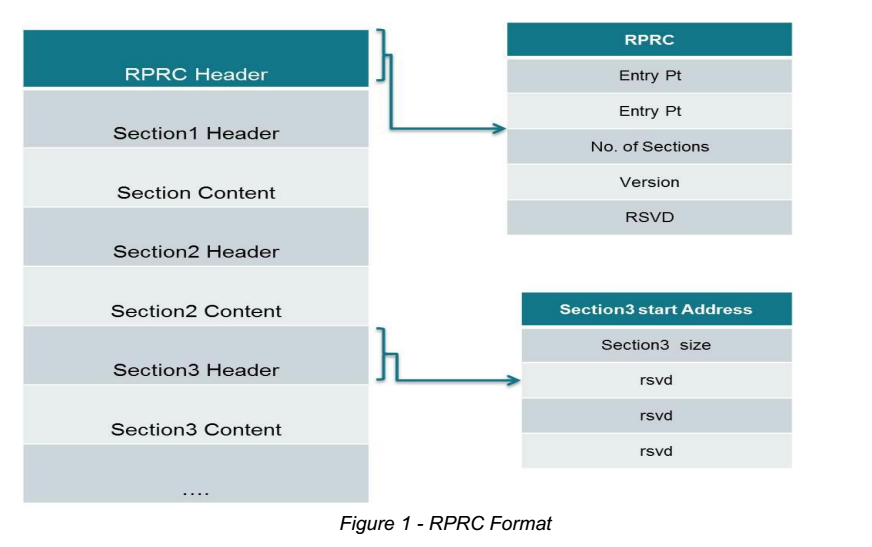

In Image creator user guide, we find the EPRC header and section header format as below figure.

In the content of xwr16xx_mmw_demo.bin, you can find the RPRC header for 0x00000080. The RPRC header is 24 bytes, and there is section 1 header from 0x00000098, but the content of this header is zeros for section start address and section size. Customer is confused with it. Could you help to check?

Thanks,
Adam

over 6 years ago

0 Cesar over 6 years ago

TI__Guru*** 138329 points

Hi,

The RPRC Header format is not specific to XWR devices. It is also used for Sitara devices.

Please search the e2e community for additional threads on this topic.

e2e.ti.com/.../2231173

Will check with the development team if there is more information available

thank you
Cesar

0 Adam Yao94020 over 6 years ago in reply to Cesar

TI__Genius 10910 points

Hi Ceasr,
Thanks. I know it is common for our processor, but I could not find the detailed description which can explain the data format confusion from the customer.
Could you contact the designer to see what is explanaiton of these fields in the file?

Thank you,
Adam

0 Prathyusha Inuganti over 6 years ago in reply to Adam Yao94020

TI__Intellectual 800 points

Hi Adam,

The RPRC section header is also 24 bytes long. (Not explicit in the RPRC format above)

So, it is 8 bytes of section start address, 4 bytes of section length, 12 bytes reserved.

In the above image,
section1 Start Addr = 0x0
Section1 Length = 0x3C

Thank you for pointing this out. We will correct the documentation in our next release.

Regards,
Prathyusha Teja.I

0 Adam Yao94020 over 6 years ago in reply to Prathyusha Inuganti

TI__Genius 10910 points

Hi Prathyusha,
Thanks for your help. I am clear now.

Best regards,
Adam
