CCS/TMS320F28027F: initializing a GPIO-17 in TMS320F28027F as general purpose and as External Interrupt

Hi Mark,

Thank you for the support.

I now successfully can get the frequency from the Hall signals.

I have a very small issue which is , I want to monitor the interrupt flag from ECFLG register.

How could i monitore the bit from ECAP handle?

  if(myCap->ECEFLG.INT)
                {
                    one_rot_time_ms = 30000;
                }

this gives error

Hi Mark,

Thank you for the response.

No the object of CAP module contains the ECEFLG.

I would like to read the INT bit(0) in this register .

Hello Mark,

I tried writting the below patch.

uint16_t Tst5 = myCap->ECEFLG &= 0x00FF;        // 0th bit is INT

but i couldnt get the register update in my variable.

also I tried writting this patch:

this below patch was added in cap.h

static inline uint16_t CAP_getECEFLAG(CAP_Handle capHandle)
{
uint16_t ECEFLG_INT;
CAP_Obj *cap = (CAP_Obj *) capHandle;
ECEFLG_INT = cap->ECEFLG;
return ECEFLG_INT;
} // end of CAP_getECEFLAG() function

Tst5 = CAP_getECEFLAG(myCap);      // in main.c

but the same problem persists.

I am surely missing something,

Regards,

Jesal

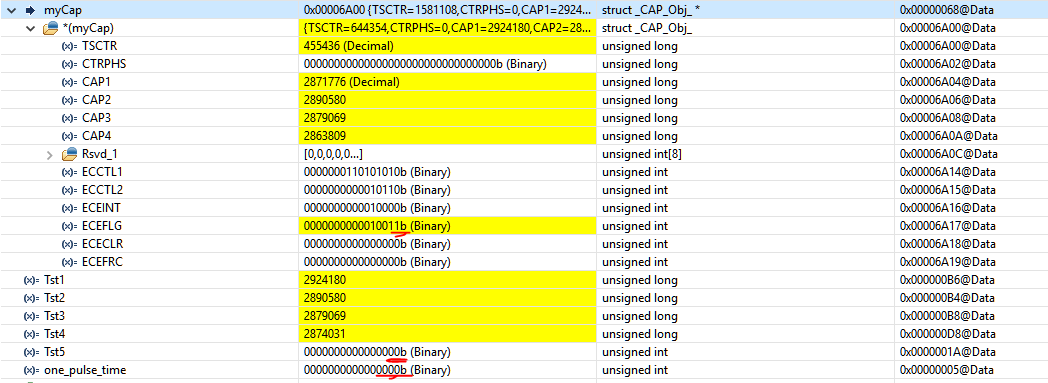

Tried with this:

uint16_t Tst5 = 0;   // global variable declaration
Tst5 = (myCap->ECEFLG) & 0x00FF;   // ECFLG is 16 bit register

output :

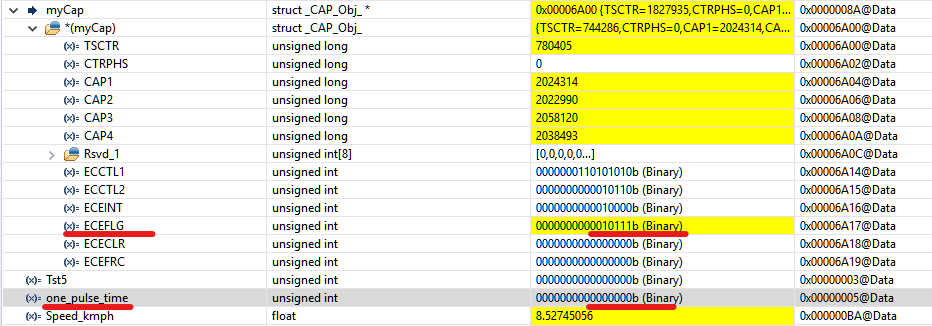

with the patch:

uint16_t one_pulse_time = 0; // global variable declared
//--------------------------------------------------------
// this below patch added in cap.h
static inline uint16_t CAP_getECEFLAG(CAP_Handle capHandle)
{
    uint16_t ECEFLG_INT;
    CAP_Obj *cap = (CAP_Obj *) capHandle;
    ECEFLG_INT = cap->ECEFLG;
    return ECEFLG_INT;
} // end of CAP_getECEFLAG() function
//--------------------------------------------------------
// this patch added in main.c within the for(;;)
  one_pulse_time = CAP_getECEFLAG(myCap);

output:

not returning value with the CAP_getECEFLAG() function

Jesal,

Tst5 = (myCap->ECEFLG) & 0x00FF;

The line above should correctly mask myCap.ECEFLG to only show the lower 8 bits. This makes me suspect that myCap->ECEFLG isn't referenced correctly.

Can you try something even more simple like the following and see if the correct value can be found in "TstStructAccess".

TstStructAccess =  myCap->ECEFLG;
Tst5            = (myCap->ECEFLG) & 0x00FF;

If you cannot see the correct value then you need to check your pointers, references, and de-references.

Regards,
Cody

No , Its not working.

Please guide me with pointers, references and de-references.

Jesal,

I don't know where you went wrong, either in build the struct, assigning the pointer, passing it by reference to the function or when assigning the pointer in the function itself.

Hopefully these links will be helpful for you.

https://beginnersbook.com/2014/01/c-passing-pointers-to-functions/

https://www.dyclassroom.com/c/c-pointers-and-structures

Regards,
Cody

Okay Sir,

My rest of the program works fine. Even the ECAP is working good. Can get CAP1-3 values perfectly. Just stuck with this ECFLG (bit0).

Thank you for the references.

I try to debug and report in the new thread.

Regards,

Jesal
