TDC1000-TDC7200EVM: TDC1000-TDC7200EVM

Tom Baby

Prodigy 80 points

Part Number: TDC1000-TDC7200EVM
Other Parts Discussed in Thread: TDC1000, TDC7200

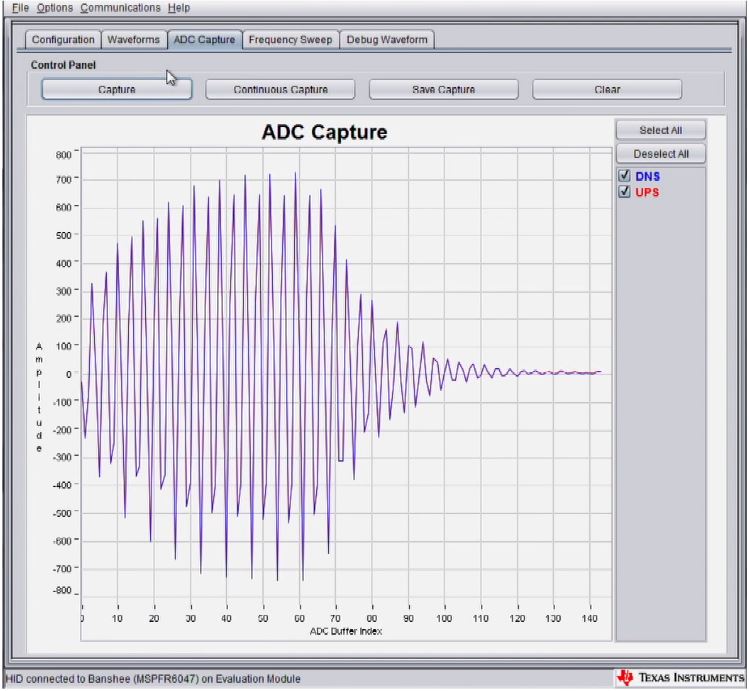

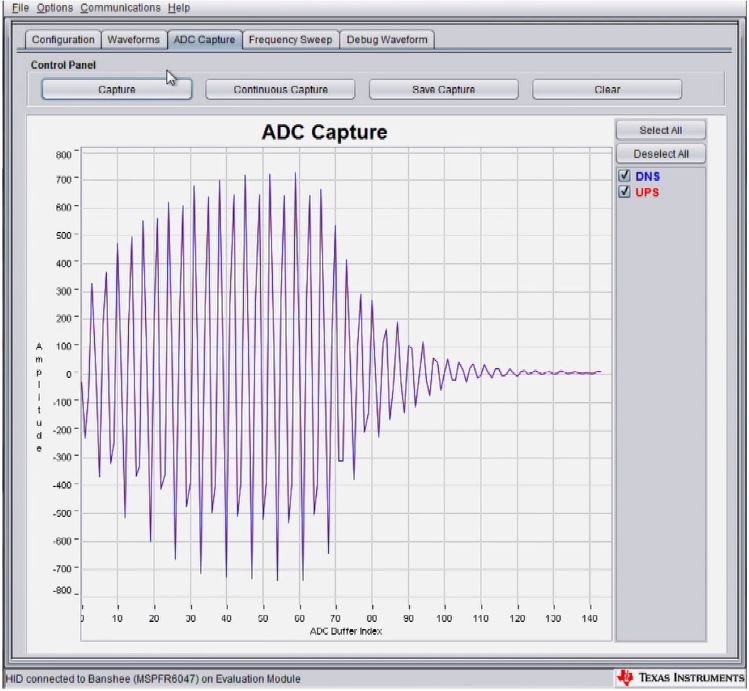

Is this graph similar to amplitude vs no of samples?

If yes, can I capture this type of graph from the TDC1000-TDC7200EVM module?

over 7 years ago

0 Bharat Aravamudhan over 6 years ago

TI__Genius 11015 points

Tom,

Please be specific on the signal that you would like to measure and why you would like to do it. Is there anything specific on the TDC1000/TDC7200 device that your looking to measure?

0 Tom Baby over 6 years ago in reply to Bharat Aravamudhan

Prodigy 80 points

We would like to differrentiate materials based on the amplitude it reflects back from an ultrasound transducer ? If so what kind of method and sensor development kit (ultrasound) we should use ?

0 Bharat Aravamudhan over 6 years ago in reply to Tom Baby

TI__Genius 11015 points

Tom,

You could use the same TDC1000 device for that. The ToF for the ultrasound waves will differ for different materials placed at a particular distance from the transducer. You could use a TDC1000 device for the same.

Sensors

Sensors forum
