TDC1000-TDC7200EVM: TDC1000-TDC7200 EVM distance (water level of tank) is not accurate

TDC1000-TDC7200EVM: TDC1000-TDC7200EVM

ASHITOSH MAHAJAN
Prodigy 60 points

Part Number: TDC1000-TDC7200EVM

Dear sir

I am Using TDC1000-TDC7200EVM

i attach flow meter body from Audio well connect on current Level measuring GUI

please guide me how measure flow rate using this kit and where can we see for Time of fight of AB and Time of Fight of BA side

  • 0
    TI__Genius 11015 points
    Ashitosh,

    I do not see any attachment.
  • 0 in reply to Bharat Aravamudhan
    Prodigy 60 points

    Dear Sir,

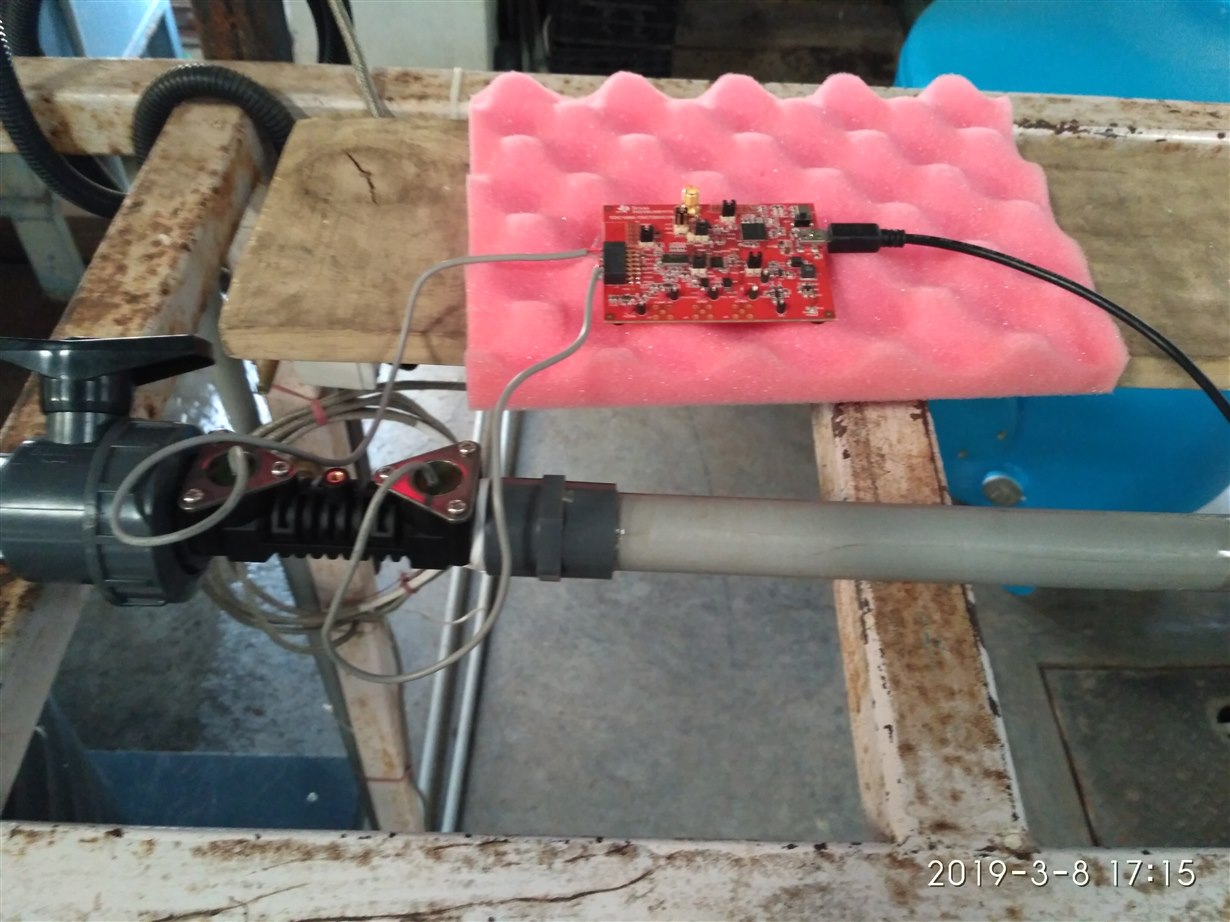

    I attach flow meter to system as per following image

    i directly attach meter to  pipeline which is bought from audiowell HS 0014-000 (which image also in attach and this model info easily found on internet.)

    Is any glue want to stick on sensor or any setting want to change. please guide us.

    TextFileGraph with water flow thorugh the pipe.xlsx

    TDC1000_Setup_2.txt
    TDC1000_Config0                         48
TDC1000_Config1                         45
TDC1000_Config2                         92
TDC1000_Config3                         03
TDC1000_Config4                         00
TDC1000_TOF-1                           A8
TDC1000_TOF-0                           1E
TDC1000_Error_Flags                     00
TDC1000_Timeout                         21
TDC1000_Clock_Rate                      02
TDC1000_Conts_Trigger                   01
TDC7200_Config1                         00
TDC7200_Config2                         44
TDC7200_Interrupt_Status                00
TDC7200_Interrupt_Mask                  00
TDC7200_Coarse_Cntr_Ov_H                FF
TDC7200_Coarse_Cntr_Ov_L                FF
TDC7200_Clock_Cntr_Ov_H                 FF
TDC7200_Clock_Cntr_Ov_L                 FF
TDC7200_Clock_Cntr_Stop_Mask_H          00
TDC7200_Clock_Cntr_Stop_Mask_L          00
TRIGGER_UPDATE_FREQ                     0009
TDC_AVG/STDEV_NUM_ELEMS                 000A
SAVE_GRAPH_DATA_TO_FILE                 00
FLOW_MODE_SELECT                        00
Y-SCALE_CENTER                          0032
X-SCALE_RANGE                           0032
MEASURE_RTD1                            00
SAVE_RESULT_REGR_TO_FILE                00
GRAPH_MULTI_STOPS                       00
TDC_SELECT                              00
TEMP_RTD_SELECT                         00
TEMP_RTD_MODE                           01
TEMP_AVG/STDEV_NUM_ELEMS                000A
SAVE_TEMP_DATA                          00
GRAPH_YMAX_DATA                         00000000004C4B40
GRAPH_YMIN_DATA                         0000000000030D40
TDC1000-HV_DRV_EN1                      00
TDC1000-HV_DRV_EN2                      00
HV_DRV_EN1_Period                       001E
HV_DRV_EN2_Period                       001E
ENABLE_POWER_CYCLE                      00
CLK_FREQ_(1-16MHz)                      8.000000
CLK_SOURCE_SEL                          00
CPU_CLK_FREQ                            05
CPU_CLK_EN                              00
TDC1000-HV_BST_PWR_EN                   00
HV_BST_PWR_EN_Period                    0000
FWD2REV_FLOW_DELAY                      0000
TDC1000-IMPE_MATCH_EN                   00
ENABLE_UART_STREAM                      00
ENABLE_MSP430TIMER_TDC                  00

    Texas.zip

  • 0 in reply to ASHITOSH MAHAJAN
    Prodigy 60 points

    Reminder

    till the date

    No reply sir

    what happen sir

  • 0 in reply to ASHITOSH MAHAJAN
    TI__Genius 11015 points
    Ashitosh,

    The audiowell based water sensor that you have attached apparently has internal circuitry in it which has help in detect the water flow rate. Am not too sure why you have connected TDC1000EVM with this.

    We recommend you use the MSP430 based ultrasonic flow metering device which has good accuracy & resolution in measuring water/gas flow.

    www.ti.com/.../MSP-ULTRASONIC-DESIGN-CENTER
