TMP411: Temp Reading

Kuan Wei Chen (Kevin Chen)

Genius 9710 points

Part Number: TMP411

Dear Team,

The customer use TMP411 to replace ADM1032.(The ADM1032 work fine here)

But the remote temperature can’t be read, and it shows around 0 degree C at room temperature.

Could you help to check is there anything we need to be verified?

Kevin

over 4 years ago

0 David Vaseliou over 4 years ago

TI__Expert 6820 points

Hi Kevin,

Can you please check and see if you can read the status register and see if there are any faults? A reading of 0C could be a result of an open or short on the D+ or D- pins.

If you do not see any open or shorts on these pins please send a oscilloscope screenshot of the D+ pin. Be sure to zoom in enough to see the different voltage levels.

Thanks,

0 David Vaseliou over 4 years ago in reply to David Vaseliou

TI__Expert 6820 points

Hi Kevin,

Is there any update on this information?

Thanks,

0 Kuan Wei Chen (Kevin Chen) over 4 years ago in reply to David Vaseliou

TI__Genius 9710 points

Dear David,

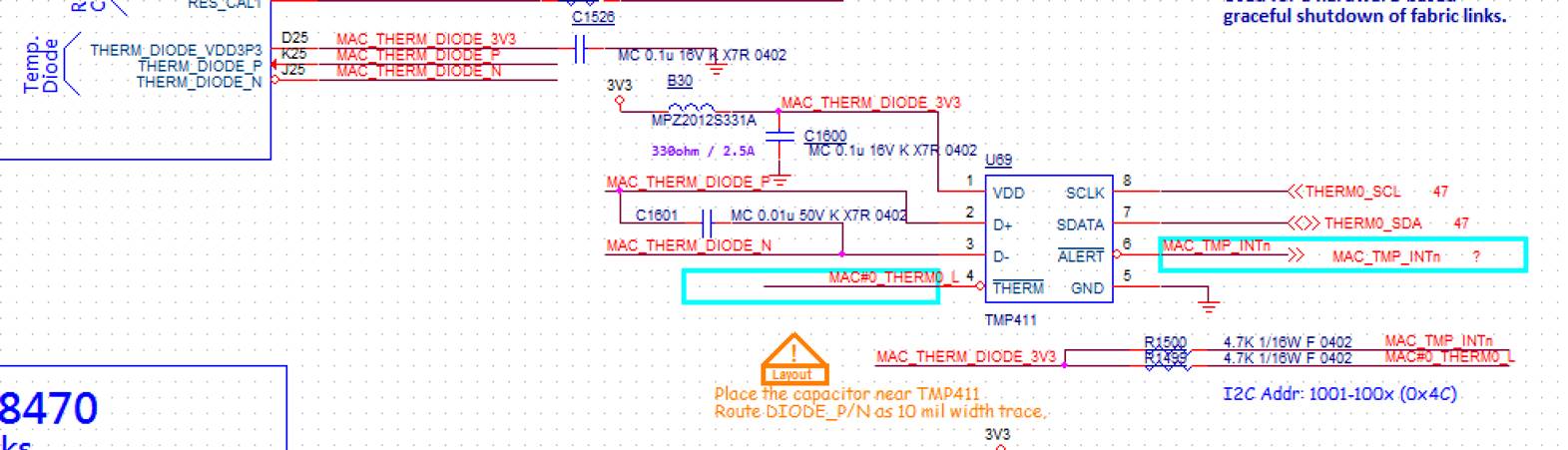

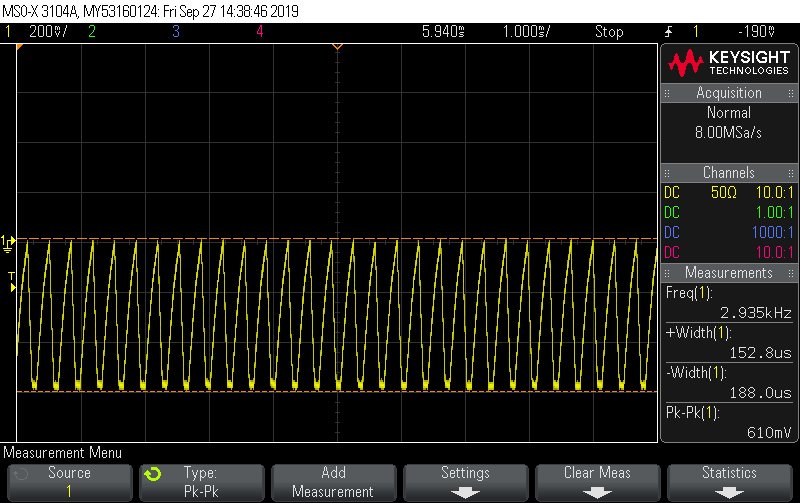

Here is the D+ D- signal, we are not sure why it is negative.

Kevin

0 David Vaseliou over 4 years ago in reply to Kuan Wei Chen (Kevin Chen)

TI__Expert 6820 points

Hi Kevin,

This waveform is not what I would expect to see on the D+ pin. Can you please make sure you have the correct signal? I also noticed that the capacitor between the D+ and D- (C1601) is over our recommendation (max 1000 pF). Please try removing or lowering the value of that capacitor and see if this fixes the issue.

Thanks,
