CCS/AWR1642: Meaning of "Privilege Write Mode"

James Dulgerian

Part Number: AWR1642
Other Parts Discussed in Thread: MMWAVE-SDK

Tool/software: Code Composer Studio

I am seeing register fields designated with "R/WP" where "WP" means "Write Privilege" mode. No where in the datasheet is this explained. Can anyone provide an explanation as to what this means? Thank you for your help.

over 6 years ago

0 Cesar over 6 years ago

TI__Guru*** 148594 points

Can you please provide an example of such a register?

thank you
Cesar

0 James Dulgerian over 6 years ago in reply to Cesar

Prodigy 40 points

Cesar,

An example is the RTIGCTRL register that is part of the Watchdog and RTI section. The CNT1EN and CNT0EN bits are designated "R/WP-0" where the "WP = Write in privileged mode only".

0 Cesar over 6 years ago in reply to James Dulgerian

TI__Guru*** 148594 points

Please see TRM Section 6.1.15 Memory Protection

thank you
Cesar

0 James Dulgerian over 6 years ago in reply to Cesar

Prodigy 40 points

Cesar,
I think what is explained in section 6.1.15 is an optional protection mechanism on selectable memory segments. This is different than an operational mode that restricts configuring registers. I want to use the RTI function to generate a periodic interrupt. It seems all the RTI registers have bit fields that are "Write in privileged mode only". I have to find a way around this privileged write only mode obstacle to use the RTI.

0 Cesar over 6 years ago in reply to James Dulgerian

TI__Guru*** 148594 points

Hi Jim,

I will check with our design team and get back to you tomorrow

thank you

Cesar

0 Cesar over 6 years ago in reply to Cesar

TI__Guru*** 148594 points

Jim

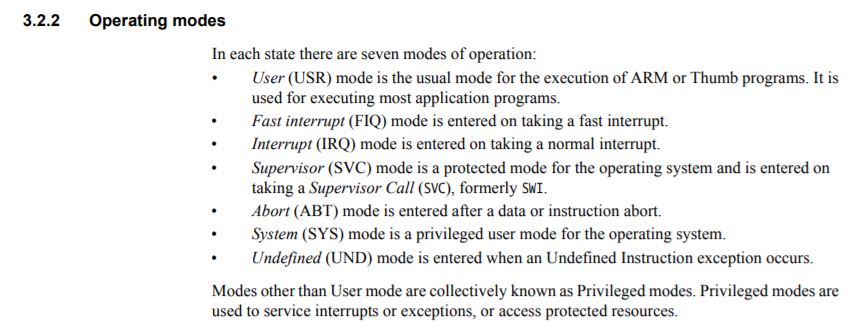

The privileged mode is related to the R4F CPU operating mode.

This mode is described in the CortexR4F TRM available on infocenter.arm.com

0 Jitendra Gupta over 6 years ago in reply to James Dulgerian

TI__Guru 69960 points

Hello James,

Is above response answered your query? We can close this thread then.

For reference related to your query, you can refer mmWave-SDK driver (watchdog_rti). TI-RTOS (OS) takes care of writing register in privileged mode.

In case you need to access privileged mode manually then you can refer Non-OS mmWave SDK Demo (osal_nonos\hwiP_nonos.c: switch_to_system_mode function).

----------------------------------------------------------------------------------------------------------

Please click the Verify Answer button on this post if it answers your question.
----------------------------------------------------------------------------------------------------------

Regards,

Jitendra
