TPSM82912: Output Voltage

Yuta Nishie

Part Number: TPSM82912

Tool/software:

Hi,

I connected a 100Ω or 68Ω load resistor between TP4 and AGND and checked the output voltage. However, the output voltage was 0V.

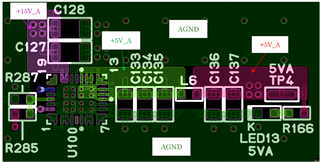

Could you please check whether there are any problems with the circuit diagram and layout?

Best Regards,

Nishie

0 Yuta Nishie 9 months ago

Genius 5470 points

Hi,

Can someone please support me?

Best Regards,

Nishie

0 Gautam Iyer 9 months ago in reply to Yuta Nishie

Hi Nishie,

The schematic is fine. What happens if you don't connect any load? Do you observe 5V at TP4?

Regards,

Gautam

0 Yuta Nishie 9 months ago in reply to Gautam Iyer

Genius 5470 points

Hi Gautam-san,

Thank you for checking the circuit diagram. Is it correct to understand that there are no problems with the layout?

I also checked the output voltage with the load removed, and it was 0V.

Best Regards,

Nishie

0 Gautam Iyer 9 months ago in reply to Yuta Nishie

Nishie-san, by any chance the chip is damaged? Did you try replacing the same with a new one?
