CCS/TIEVM-HV-1PH-DCAC: error in the GUI Composer Run time: C:\ti\xdctools_3_32_02_25_core\xs.exe: error: can't create session manager: can't find a JVM; the environment variable 'XDCTOOLS_JAVA_HOME' is set, but does not appear to be a dire

Muhammad Farooq Umar

Tool/software: Code Composer Studio

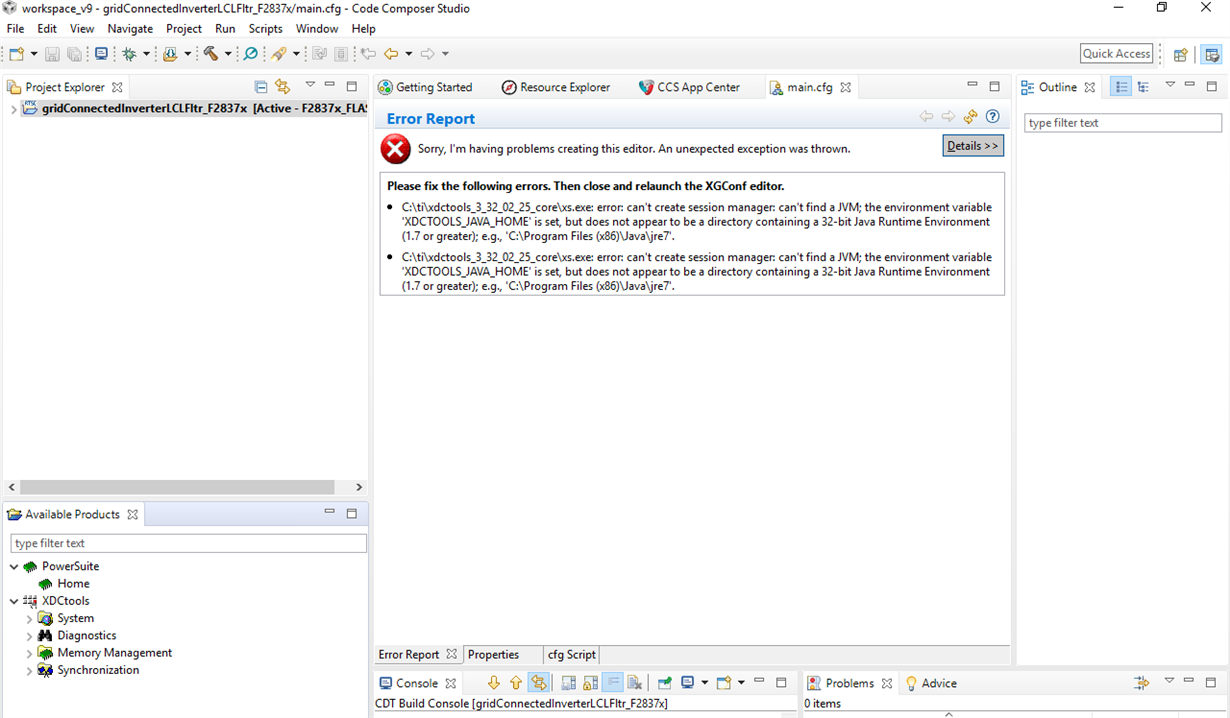

When I am running the TI reference design for the Single phase grid tied inverter, I am facing following error in the GUI Composer Run time V1. The snapshot of the error is attached with the mail.

over 6 years ago

0 AartiG over 6 years ago

TI__Guru**** 173310 points

Please take a look at this related thread that provides couple of options to resolve this error.

0 Genatco over 6 years ago in reply to AartiG

Guru 56178 points

Hi Arti,

Was GUI composer later added to CCS versions >7.3? I noticed the error message states run time GUI composer. Still relate back to CCS5.4 to get that GUI 1.1 from the http Java server. It would be nice to have the runtime somehow load my custom GUI via CCS 7.3. The cloud GUI composer was an impossible reach!

0 AartiG over 6 years ago in reply to Genatco

TI__Guru**** 173310 points

The error the OP reported is when opening a RTSC .cfg file in the editor, I don't believe it is directly related to GUI Composer runtime.

To answer your question, GUI Composer v1 designer is not available in CCS 7.3. For that version of CCS, you can only design the GUI using the GUI Composer on the cloud. However you can run existing GCv1 applications in CCS 7.x, after installing the GC runtime from CCS App Center.

A brief summary is here: http://processors.wiki.ti.com/index.php/Category:GUI_Composer#GUI_Composer_v1_vs_GUI_Composer_v2
