CCS/CC2640R2F: AoA for CCS v9 how to check the example is working?

Bruno Senzio

Prodigy 170 points

Part Number: CC2640R2F
Other Parts Discussed in Thread: UNIFLASH

Tool/software: Code Composer Studio

Hello, I have three launchpads for the CC2640R2 and one AoA Booster pack.

I have flashed the rtls_master to the AoA installed launchpad, rtls_passive and rtls_slave to the other two boards.

I made the hardware modification required for the AoA installed board.

For this case, how can I test that the angle of arrival is being detected?

I tried to open a terminal but the device is not sending anything for three nodes. Is there some configuration or setup to be done besides the ones from the documents?

Thanks

over 4 years ago

0 Clément over 4 years ago

TI__Guru* 94028 points

Hi,

I would recommend you to follow the labs provided here.

If you are using the latest SDK (3.40), you will be required to use the user interface named rtls_ui and stored in your SDK in tools\ble5stack\rtls_agent

I hope this will help,

Best regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

I tried the flashing and running the cli,but only MASTER node is detected. Is there something wrong about the way the devices were flashed?

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi,

It is expected and normal if the slave node is not detected. However the master and the slave should be detected. If this is not the case, I would recommend to re-flash the faulty device. Once again, follow the labs provided here it will save you some time :) For example, you will see that the AOA boosterback has to be mounted on the passive node (and not on the master node).

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hello Clement,

I have tried to reflash the board but only the MASTER node i recognized.Could it be a faulty behavior?

I tried flashing different boards and still the same problem. Any idea?

Best,

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi,

Verify if all the jumpers are installed on the passive device.

You can also try to re-flash the device using a different tool (such as Uniflash or Flash Programmer). In this case, I would recommend to start by mass-erasing the device.

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

I have tried to do so on both cards. Do you think using VCP might affect?

Thanks

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi,

Our software and tools are not tested with VCP. Even if I don't think this is the issue, I think it worth to do another try without VCP.

Regards,

0 danmbox over 4 years ago in reply to Bruno Senzio

Intellectual 260 points

Hi Bruno,

i had a similiar issue while trying to flash my devices. My main problem was the compatability issue. It did flash my devices without error, but it would't work.

Try to update to CCS 9.3.

Best regards,

Daniel

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

I was able to see the demo once my python environment was setup. Unfortunately, the slave device seems to be identified, but it does not allow to have AoA for some reason. ToF is working though.

Is there some step I might be missing?

Thanks in advance.

0 Bruno Senzio over 4 years ago in reply to danmbox

Prodigy 170 points

Hi Daniel,

I was able to open the device but it is still not recognizing the slave device on the demo.

Best,

Bruno

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hi Clement,

Now I can connect the three, Master, Passive and Slave and check the ToF Information without problem. For some reason, the enable AoA button is not available. I uncomment the option frm the build settings already but the button does not seem to be available. Did this happen to you as well?

Best,

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

Good to see you are progressing! Was the issue due to VCP? Can you precise what you have done to solve your problem? Thanks :)

Regarding the "enable AOA" button. The build options (especially the predefined symbols) of the software need to be slightly modified to allow them to handle AOA (note: this is for CC2640R2 devices only). For the master and slave devices, this must be done, in build_config.opt (in the stack projects) by de-commenting the symbol RTLS_LOCATIONING_AOA. For the passive device, the symbol must be pre-defined (right click on the passive project > Build > Predefined Symbols - The symbol xRTLS_LOCATIONING_AOA is declared, just remove the "x").

I hope this will help,

Kind regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hello Clement,

I switched to SDK 3.40 which was released recently and run thr UI. No problem related to VCP Usage. I tried uncommenting the AoA feature for the slave and the master and then enable the AoA option for the passive device. However, the button is still not enabled. Is there any other configuration I might be missing?

Thanks,

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

Can you precise what you meant saying "uncommenting the AoA feature for the slave and the master"? In theory, you only have to pre-define a different set of symbols (as I described in my previous message) but you don't need to directly modify the code.

In addition, you can try to mass erase the devices (using Flash Programmer 2 for example) and re-flash them.

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

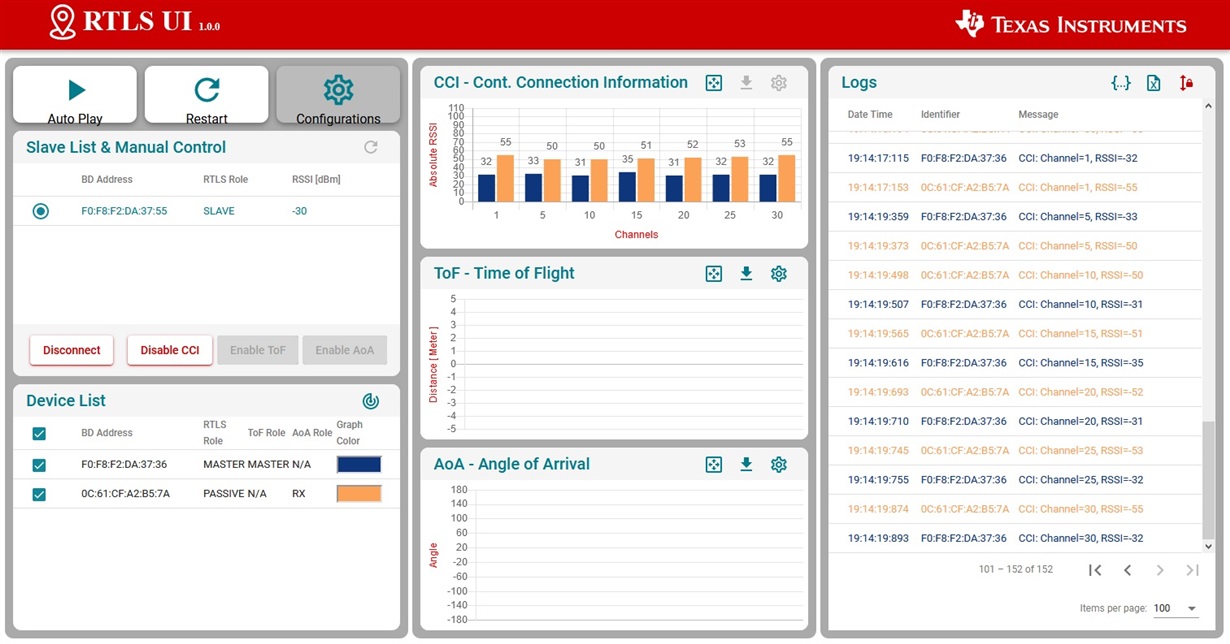

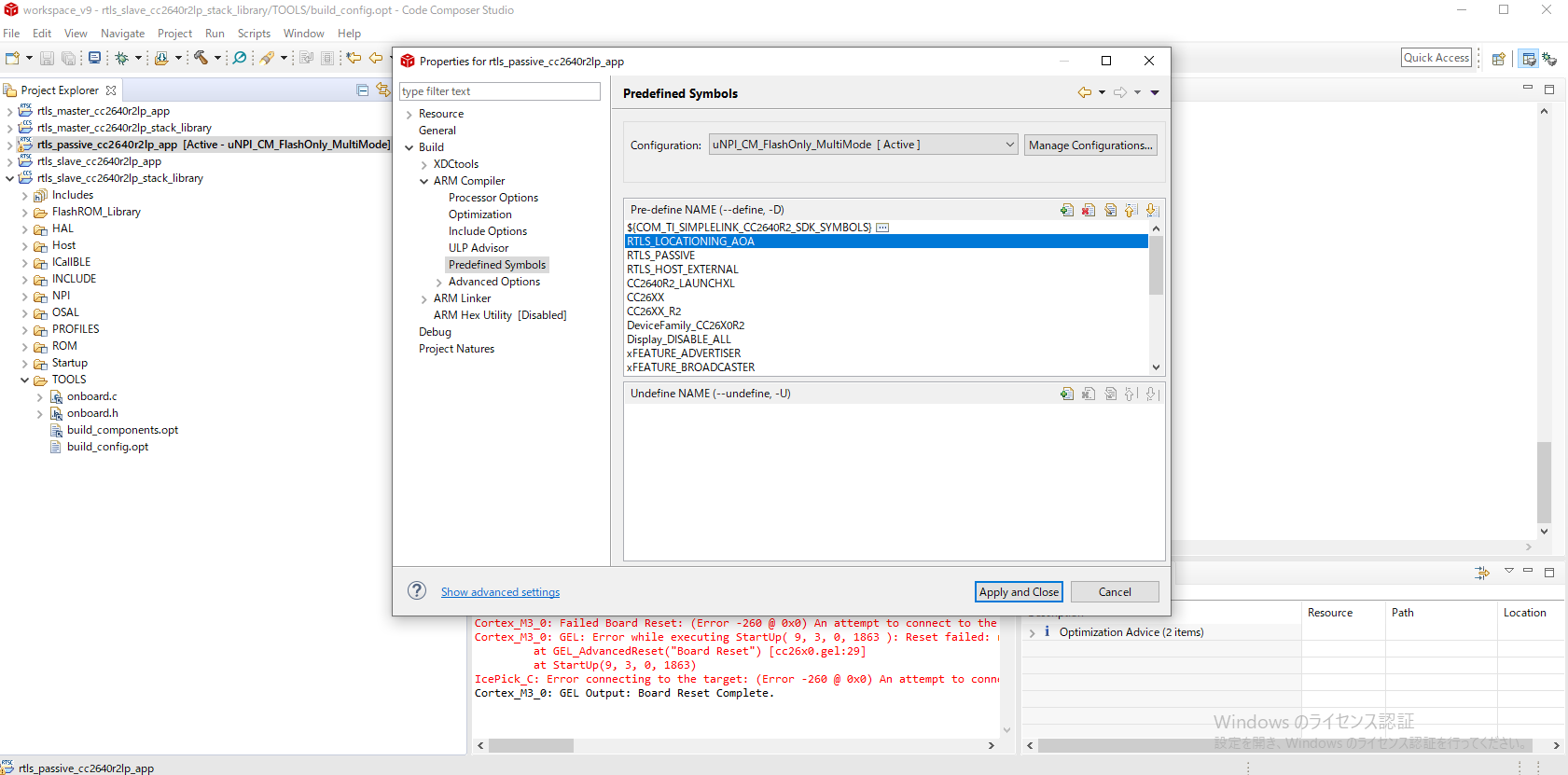

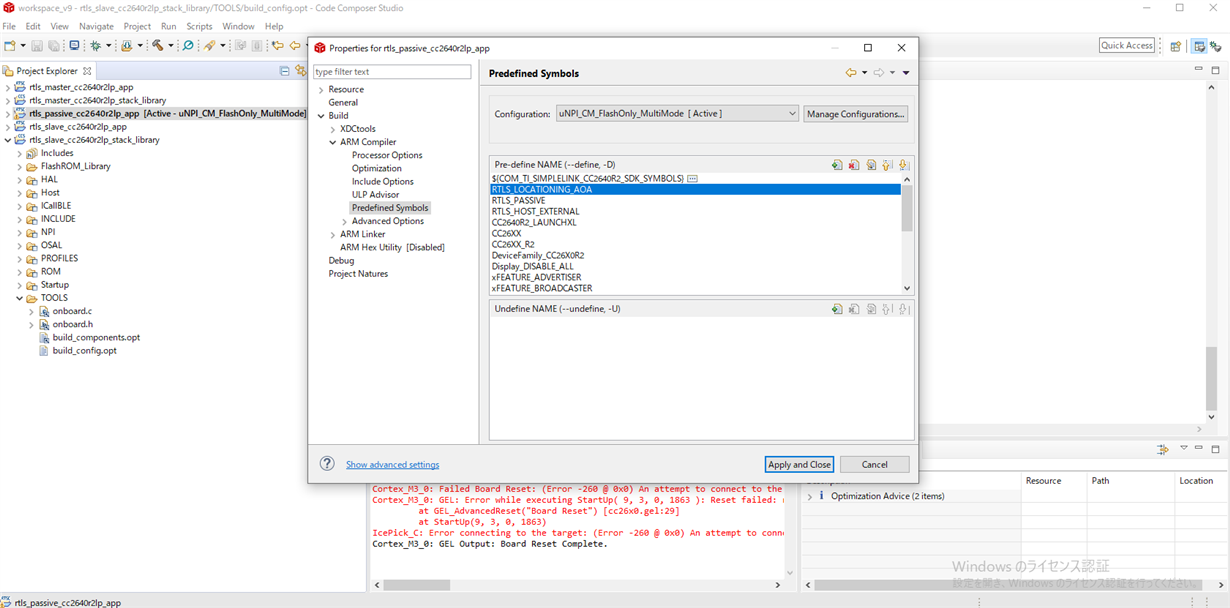

So I did the settings as the screenshots above. I tried reflashing but sometimes the slave does not connect. The Enable ToF option was not available and the Passive has the RX behavior for AoA, however the master remains as N/A.

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi,

Ok, thank you for the precision. I assume you did the same modification for the slave and the master, can you confirm?

Can you try to mass erase the devices (using Flash Programmer 2 for example) and re-flash them?

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hello Clement,

When I reflash the device. Sometimes the slave device is detected and connected, but the Enable AoA option is still not available, and not even the Enable ToF option. Any suggestion?

Thanks in advance,

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

Keep in mind that on CC2640R2, you cannot use at the same time AOA and TOF. When you activate AOA, you deactivate TOF. There is no way to activate both TOF and AOA at the same time on CC2640R2 (you will require CC26X2R to do so).

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hi Clement,

This I understand. But in this case, why I cannot use AoA mode, even when the compiling and flashing of the devices was done accordingly?

Thanks,

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

I tested the software and I could not reproduce your issue.

- If you have not done it yet, can you try to mass-erase your devices? (sorry I did not get if you have done so or not) This must be done using FLASH-PROGRAMMER-2

- Can you verify if your SDK has not been altered? For example you can try to reinstall it.

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hello Clement,

How can I detect the booster pack with FLASH Programmer application and do the mass erase you suggest?

Thanks in advance

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

Bruno Senzio said:
How can I detect the booster pack with FLASH Programmer application and do the mass erase you suggest?

> If you are referring to the CC2640R2 launchpad, then you have to connect the launchpad to the computer and set up all the jumpers on the launchpad. You will probably have to update the XDS firmware (please do so).

> If you are referring to the AOA boosterpack, then it is not detectable by FLASH Programmer

For further assistance, please consult FLASH Programmer's documentation.

(Sorry for marking your message as "TI thinks resolved"... I did a wrong click when quoting you...)

Kind regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

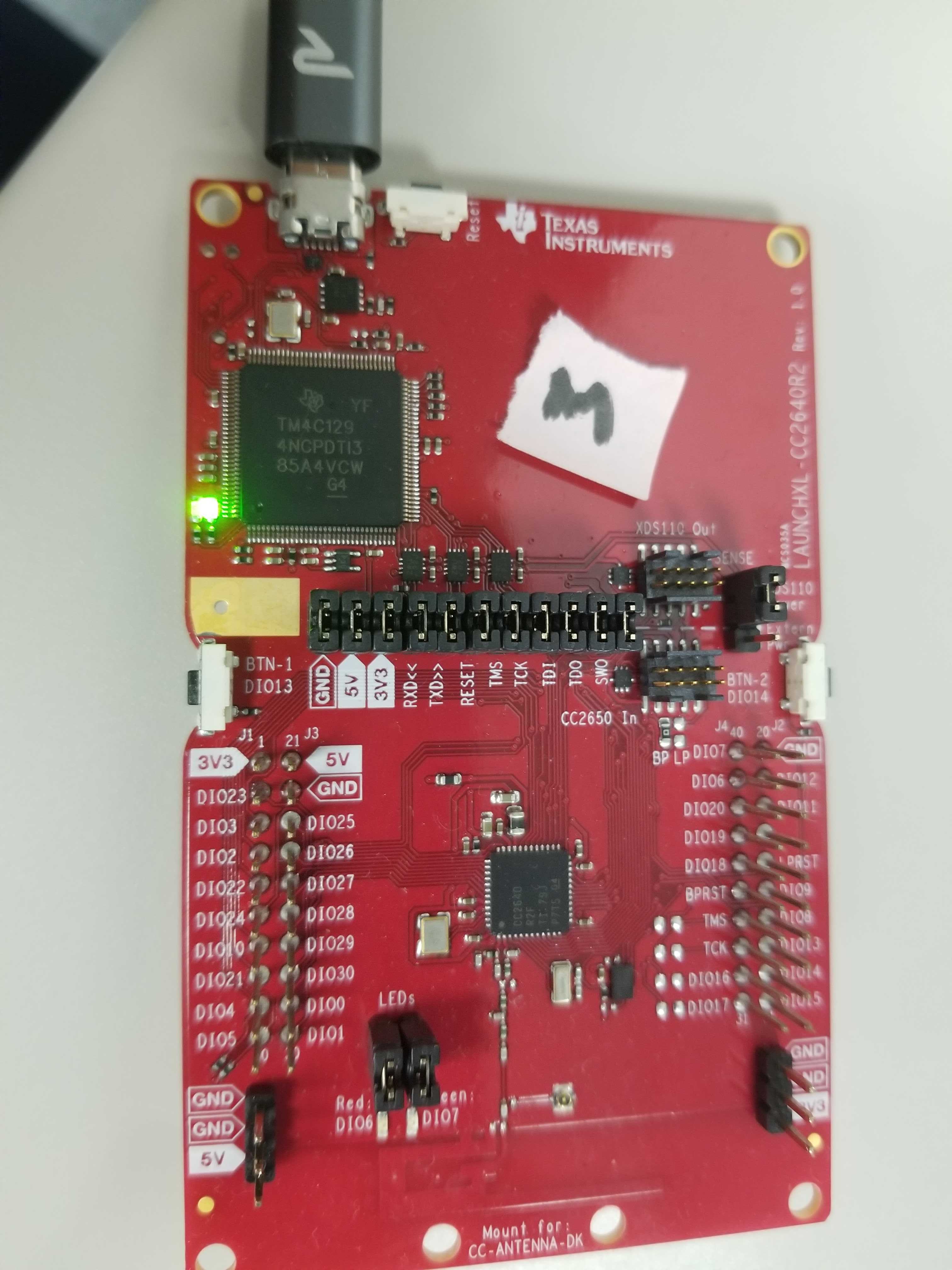

I have all the jumpers set as per default configuration. I have updated the XDS firmware the first time I flashed the boards, however when I try to erase on Smart RF Programmer, the devices are not recognized. Would there be any step I am missing for this?

Thanks for your help and support.

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

Please use FLash Progmmer 2. www.ti.com/.../FLASH-PROGRAMMER-2

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

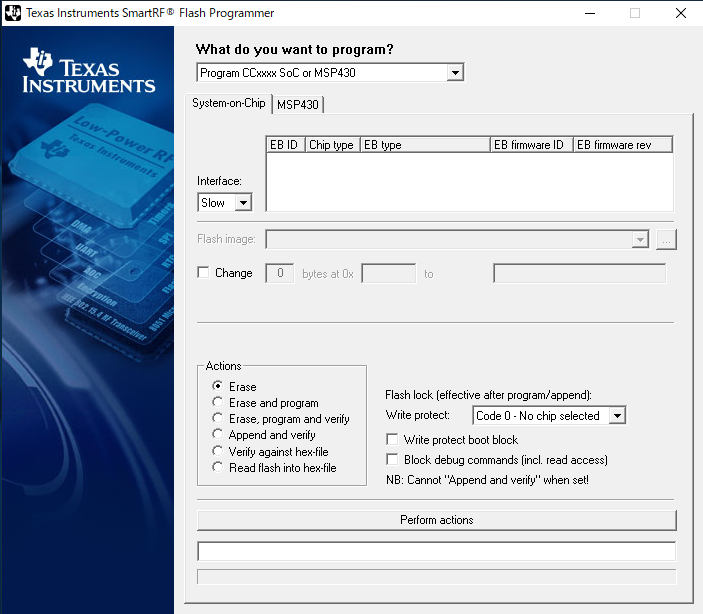

I did erase the devices with Flash programmer and this is the screen output I am getting. I am not sure if there is some config missing.

Thanks.

Bruno

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi,

Have you tried to disable CCI?

Regards,

0 Bruno Senzio over 4 years ago in reply to Clément

Prodigy 170 points

Hi Clement, the option still not available

0 Bruno Senzio over 4 years ago in reply to Bruno Senzio

Prodigy 170 points

Hello Clement,

After cleaning the three projects and flashing the boards on a native Windows computer we were able to see the AoA feature for the boards. Thanks for your help.

0 Clément over 4 years ago in reply to Bruno Senzio

TI__Guru* 94028 points

Hi Bruno,

That's good news! Thank you for sharing.

Best regards,
